Entertainment Component Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

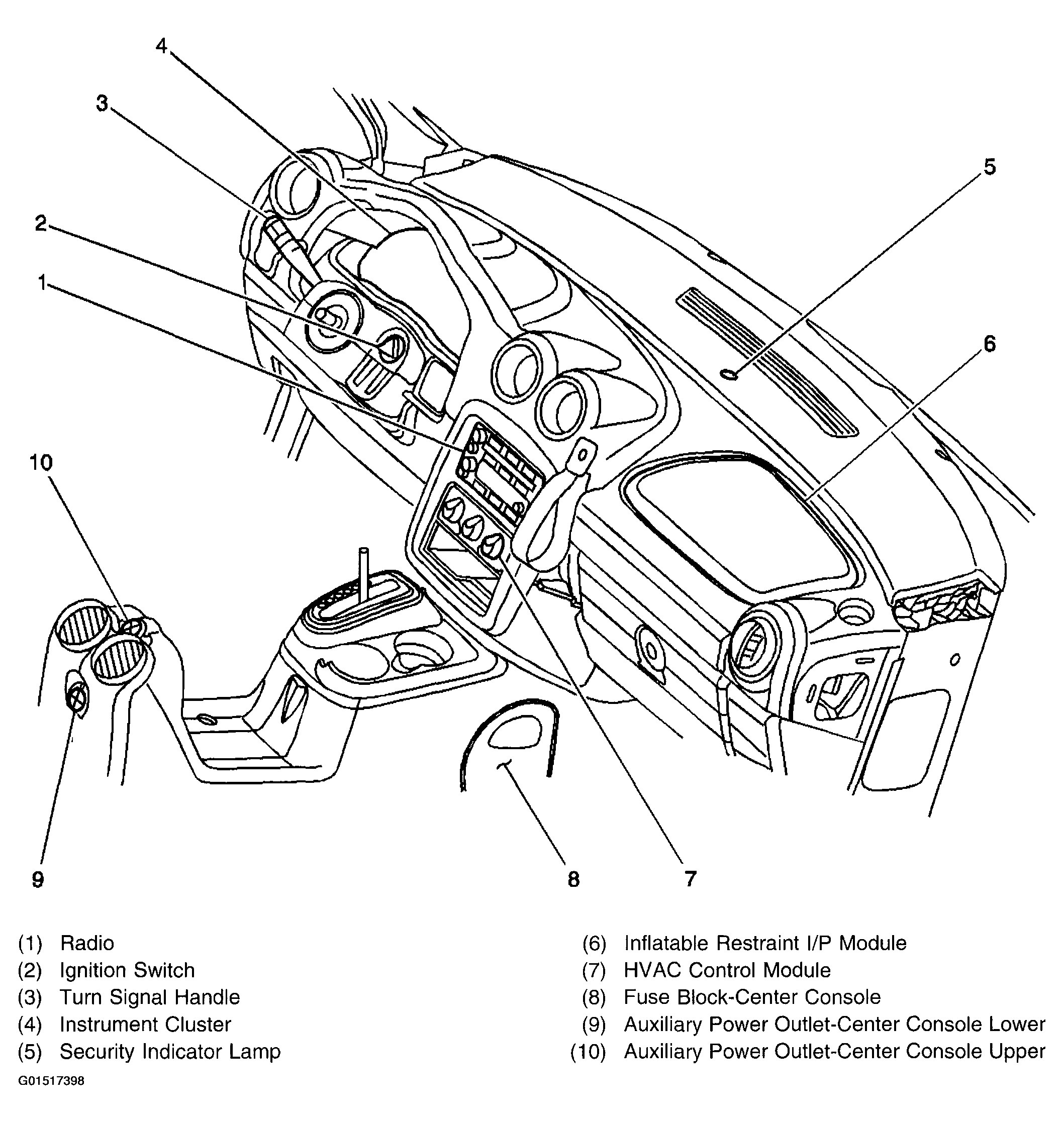

Fig 1: Locating Instrument Panel & Center Console Components - Pontiac

Courtesy of GENERAL MOTORS CORP.

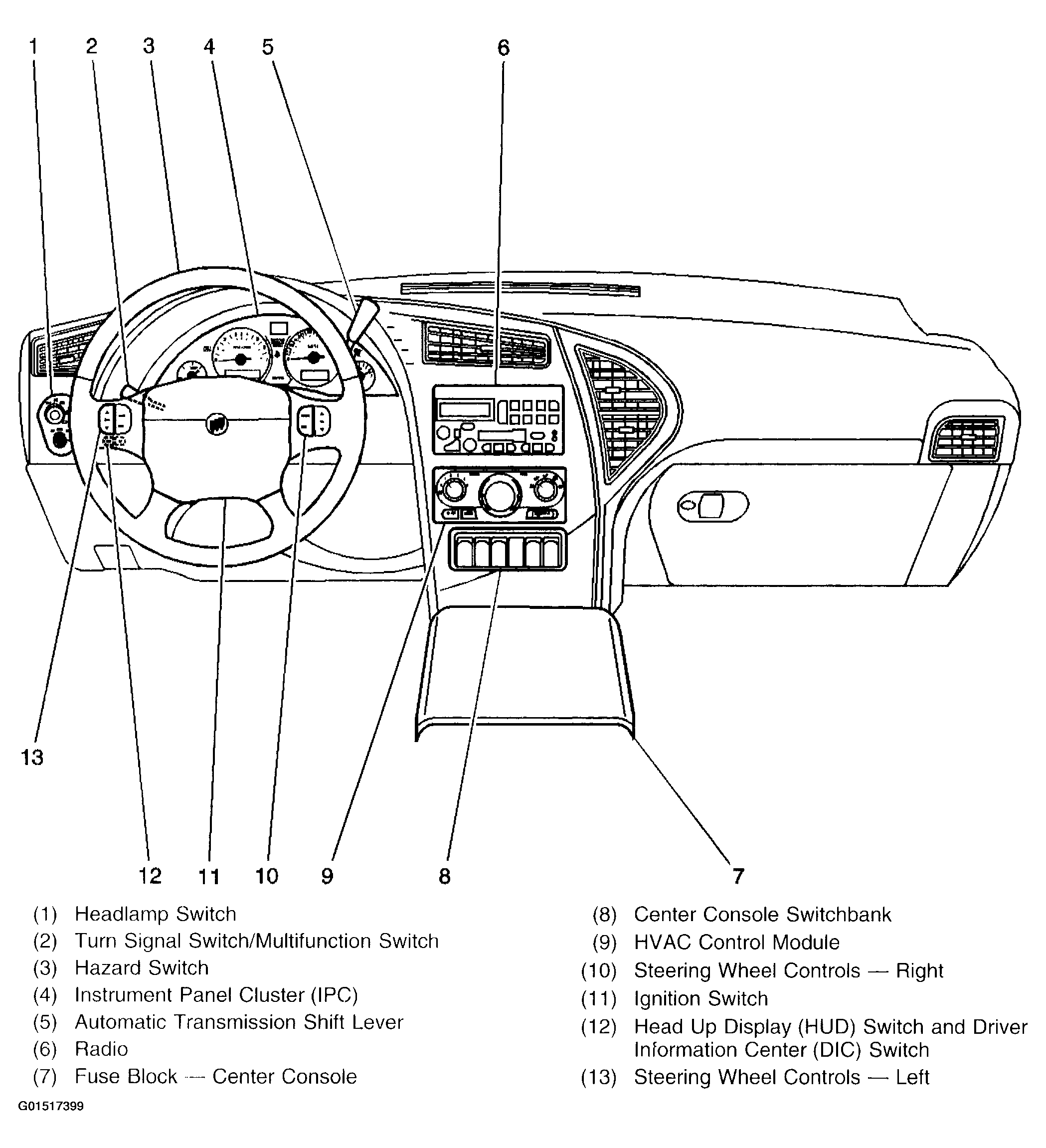

Fig 2: Locating Instrument Panel Components - Buick

Courtesy of GENERAL MOTORS CORP.
