Suspension Controls Component Views

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

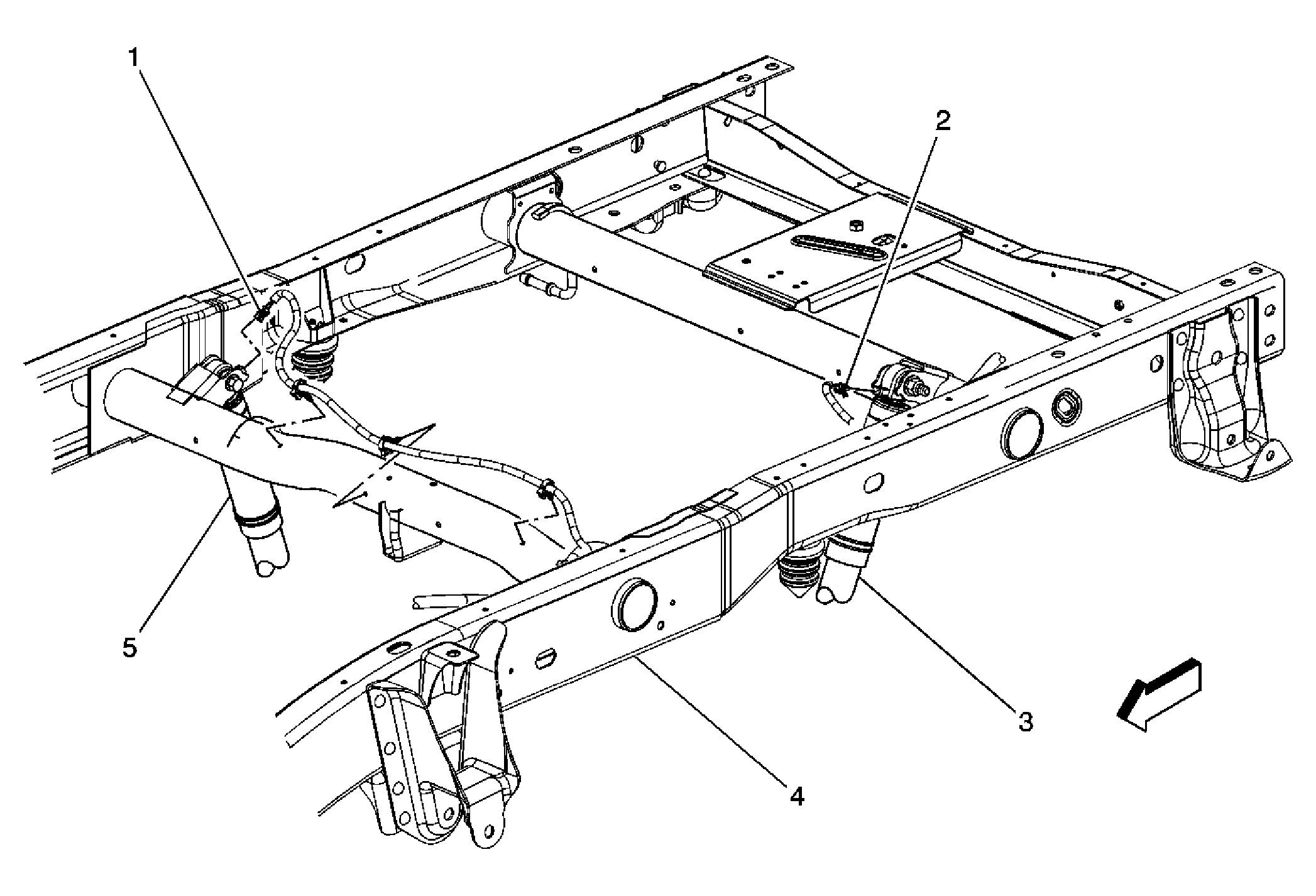

Fig 1: Rear Shock Absorbers Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shock Absorber Solenoid Connector - RR
2	Shock Absorber Solenoid Connector - LR
3	Shock Absorber - LR
4	Frame
5	Shock Absorber - RR

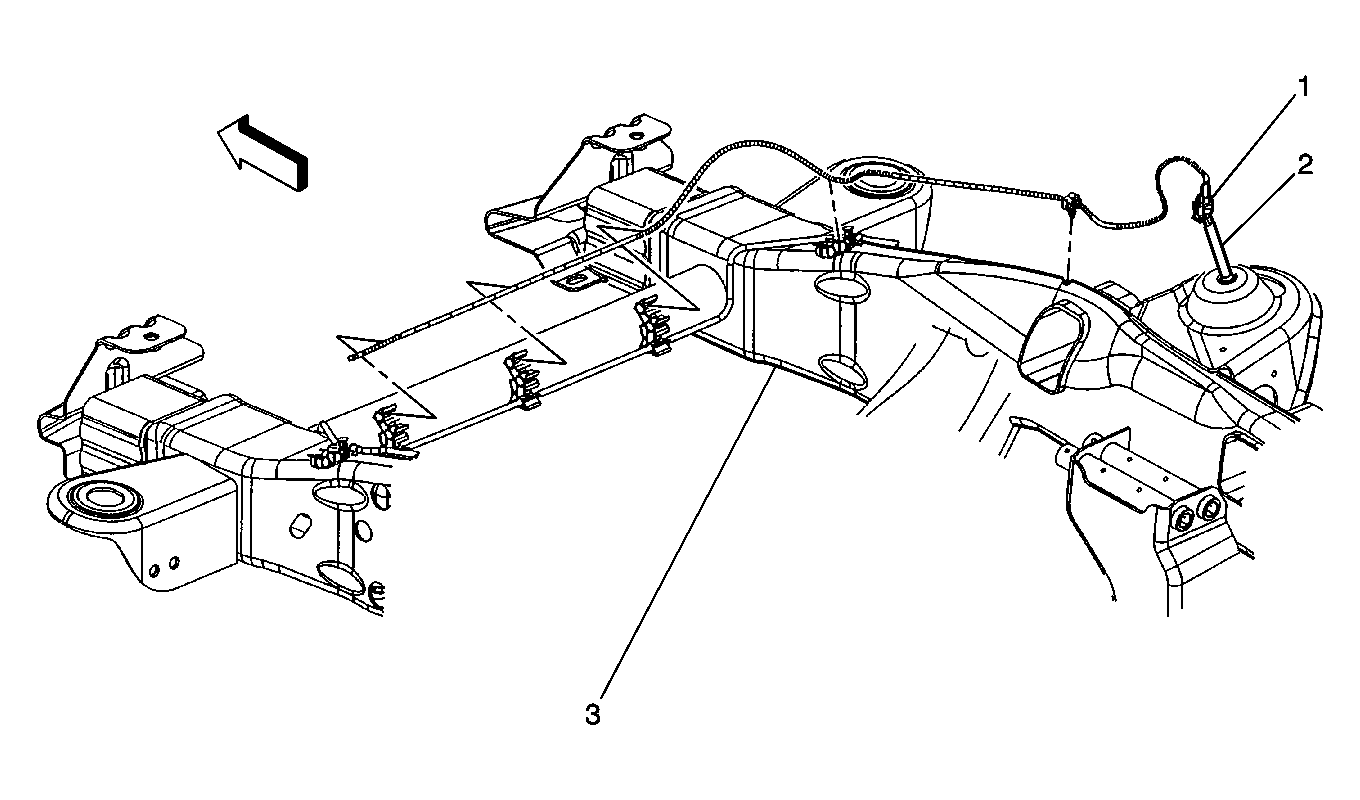

Fig 2: RH Front Selectable Ride Shock, LH Front Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RH Front Selectable Ride Electrical Connector
2	RH Front Selectable Ride Shock
3	RH Frame Rail

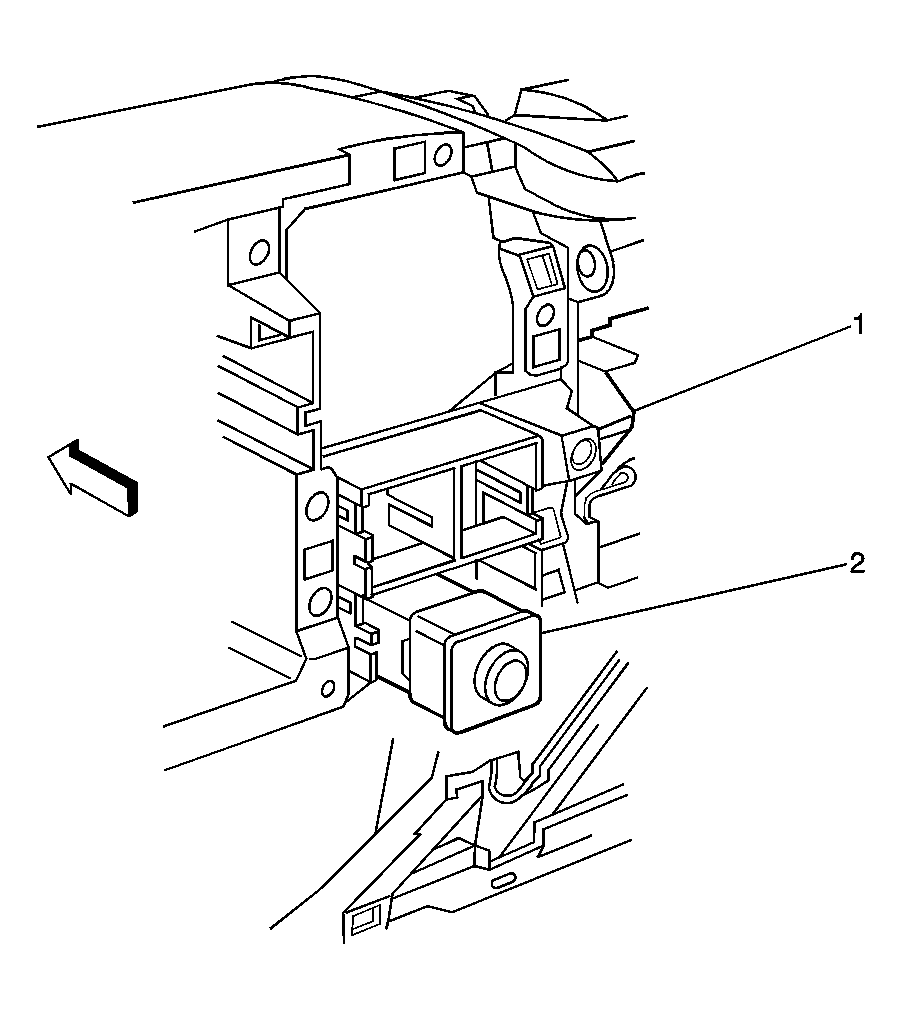

Fig 3: Selectable Ride Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Selectable Ride Switch
