I/P Switch Assembly - C4 (Buick) Connector End View
I/P Switch Assembly - C4 (Buick) Connector End View

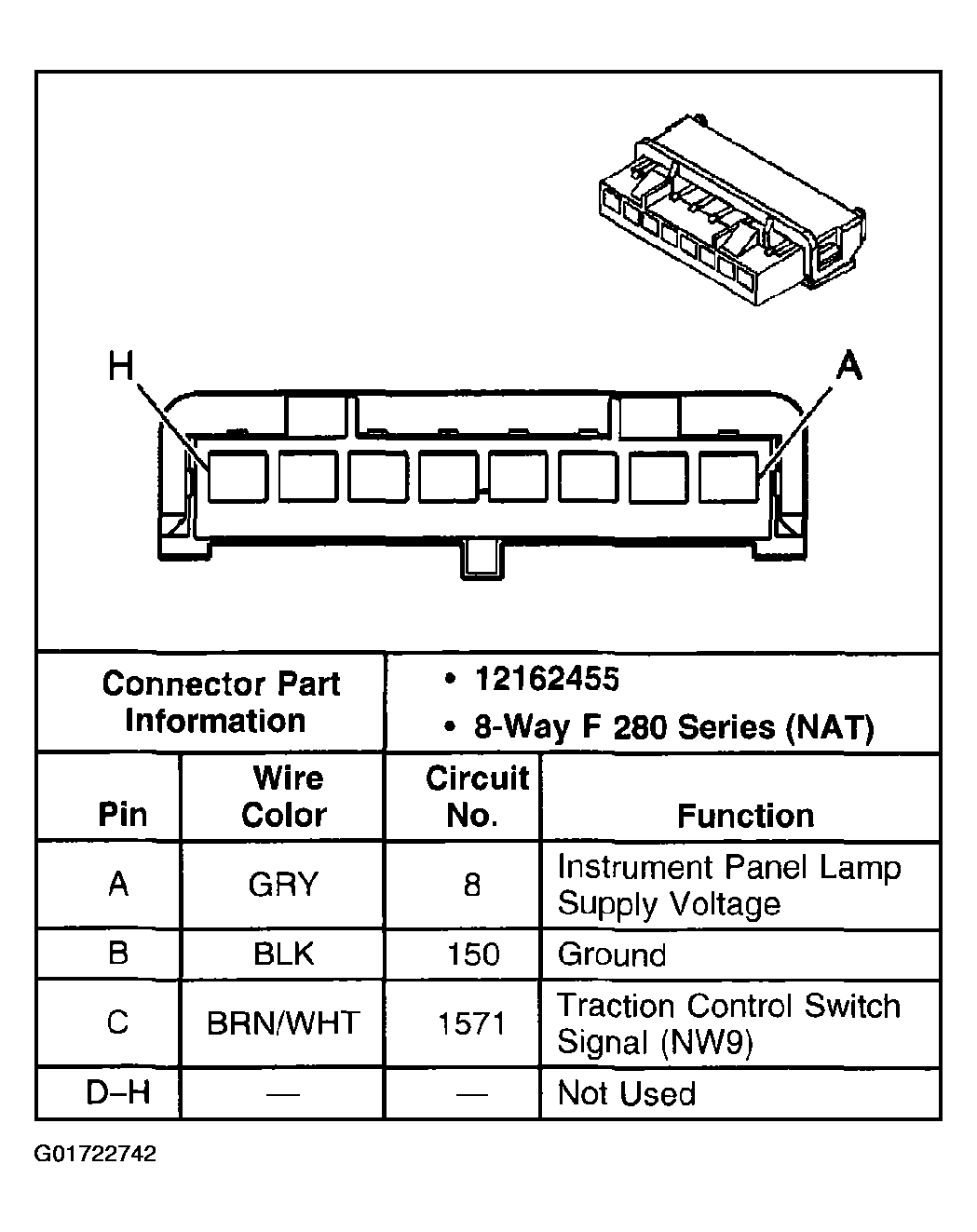

Fig 1: I/P Switch Assembly - C4 (Buick) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
