I/P Switch Assembly C2 Connector End View

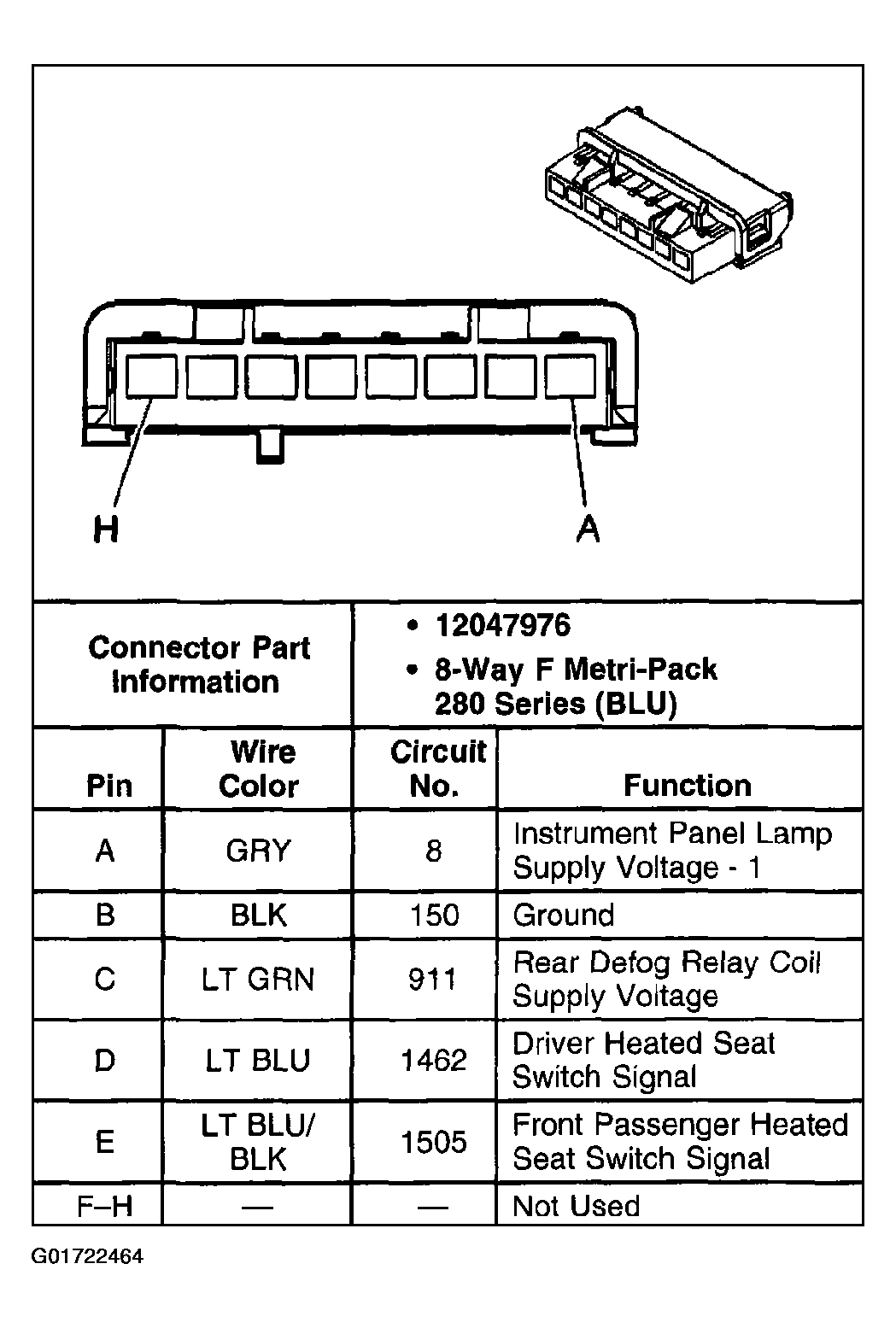

Fig 1: I/P Switch Assembly C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

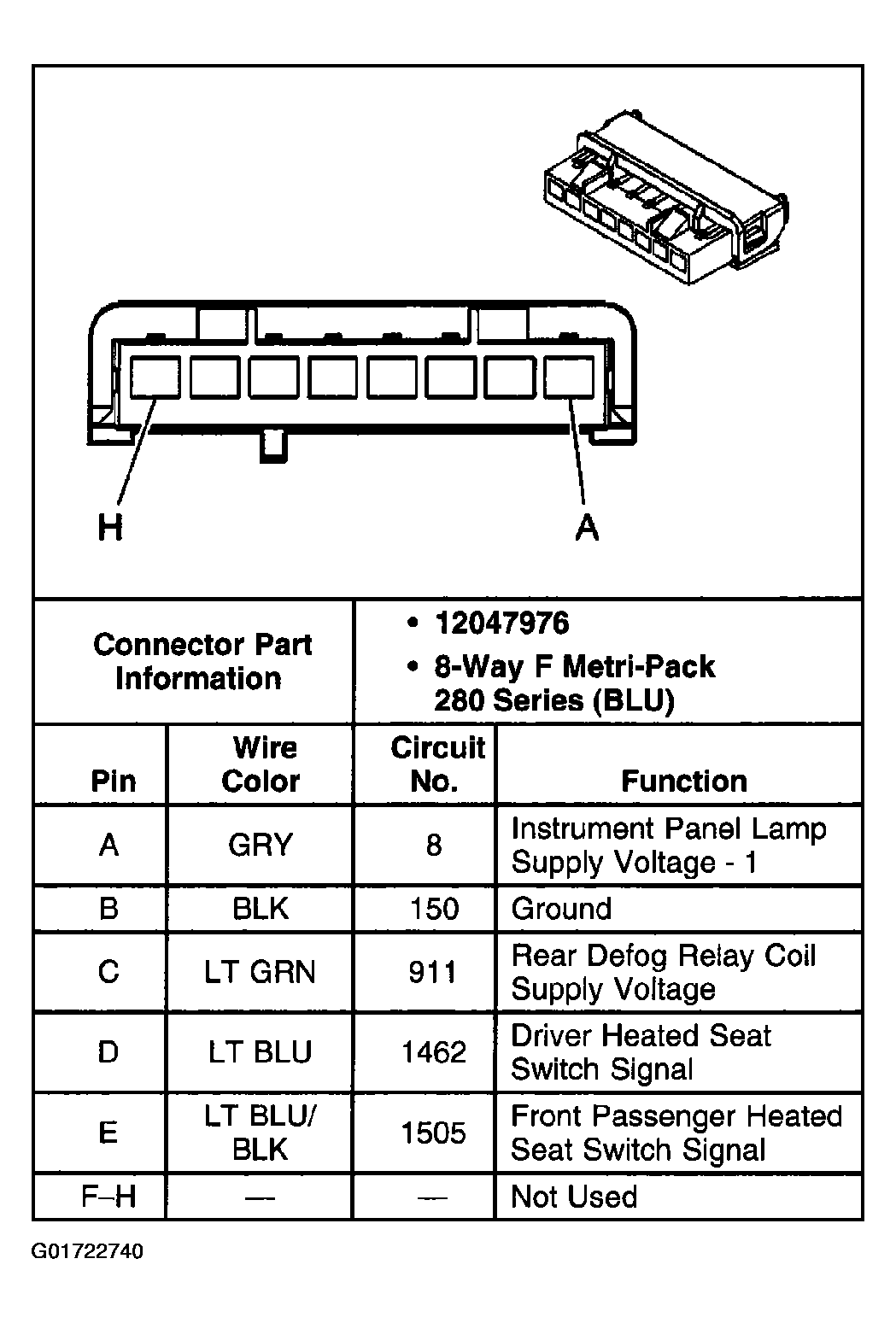

Fig 1: I/P Switch Assembly C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
