Seat Belt Connector End Views
Seat Belt Connector End Views

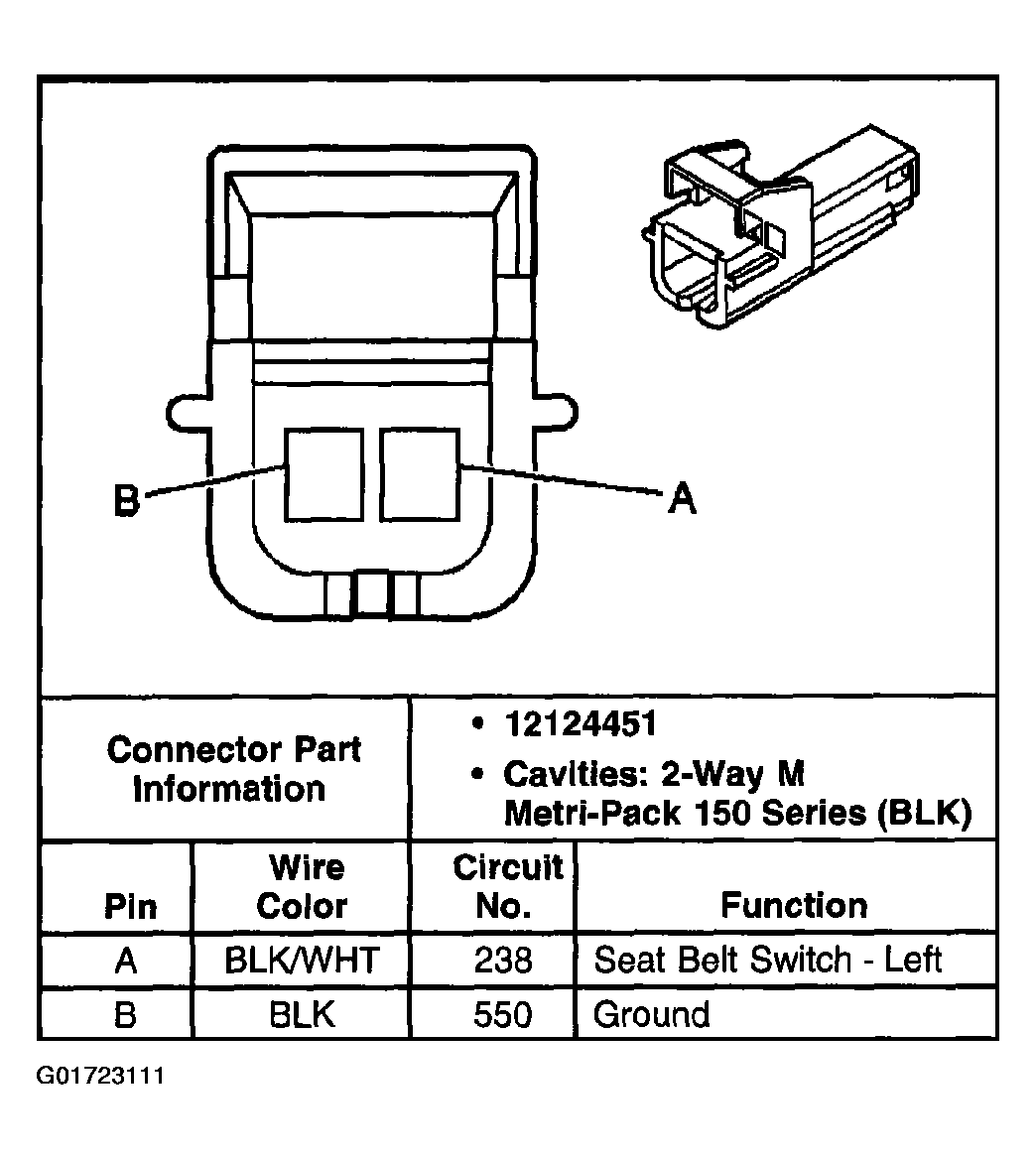

Fig 1: Seat Belt Switch Connector End Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
