Removal Procedure

Remove the left front seat. Refer to SEAT REPLACEMENT - BUCKET .
Remove the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT - FRONT .
Remove the nut from the seat belt buckle anchor stud.

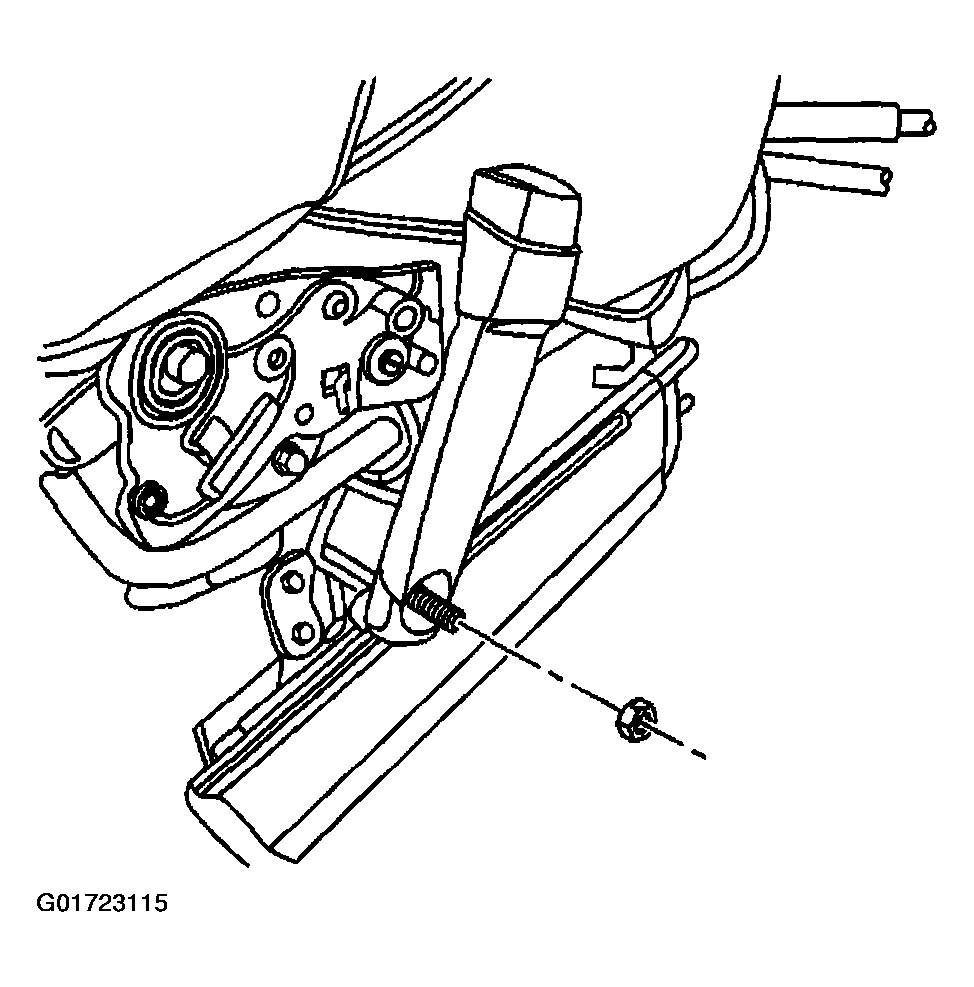

Fig 1: Removing Nut From Seat Belt Buckle Anchor Stud
Courtesy of GENERAL MOTORS CORP.
Remove the electrical connector from the seat belt buckle.

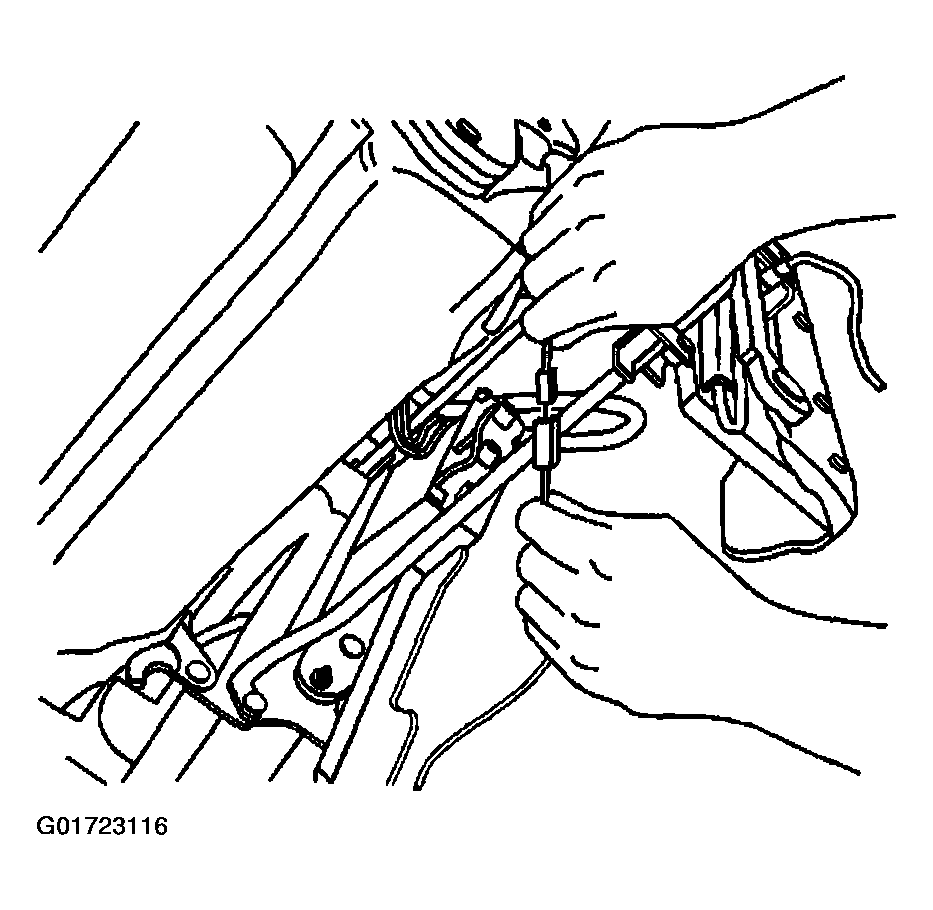

Fig 2: Removing Seat Belt Buckle Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the seat belt buckle from the left front seat.

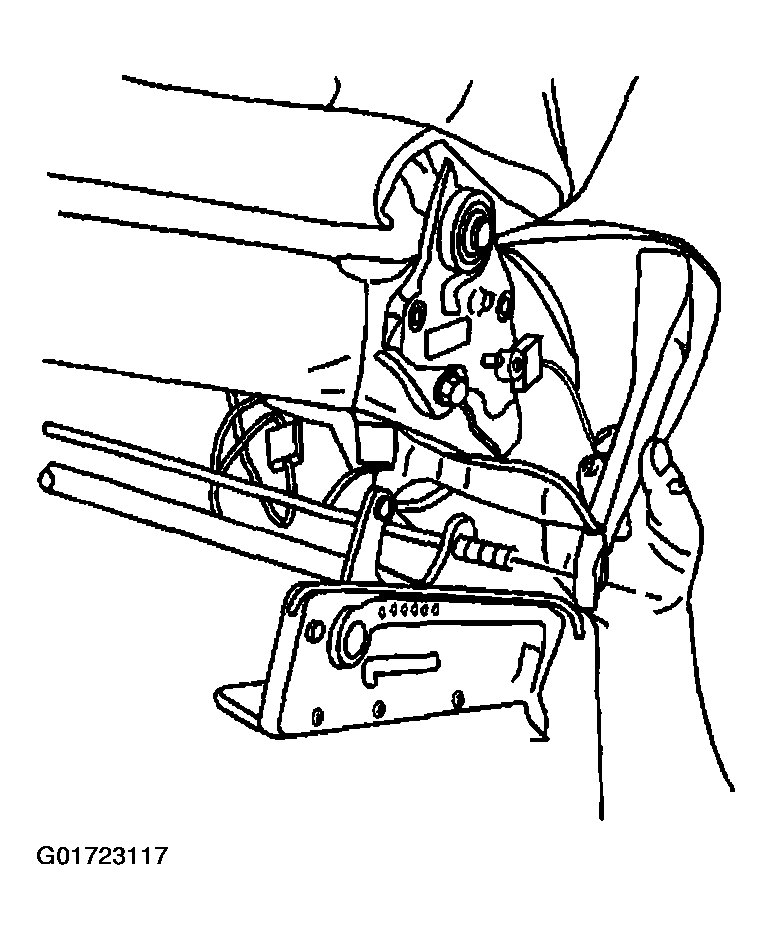

Fig 3: Removing Left Front Seat Belt Buckle
Courtesy of GENERAL MOTORS CORP.
