Removal Procedure

  1. Remove the right front seat. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT - FRONT .
  3. Remove the nut from the seat belt buckle anchor stud.

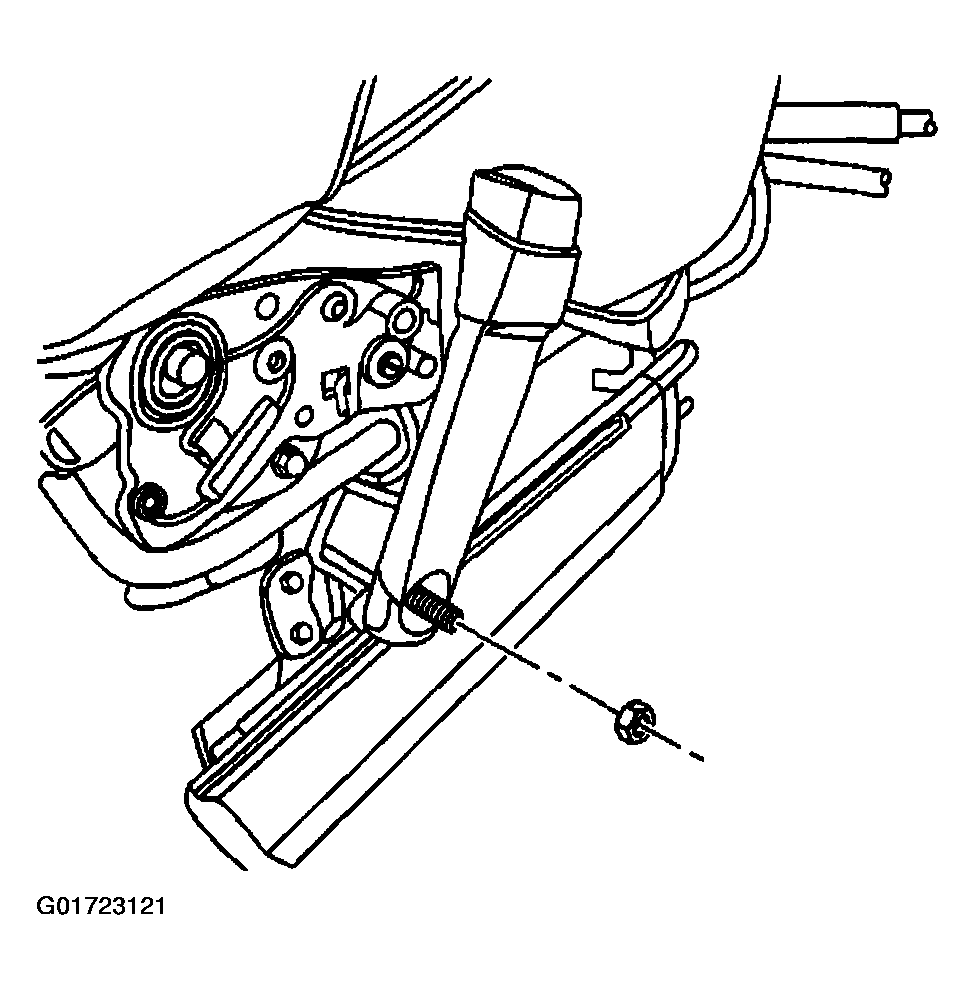

    Fig 1: Removing Nut From Seat Belt Buckle Anchor Stud
    G01723121Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat belt buckle from the right front seat.

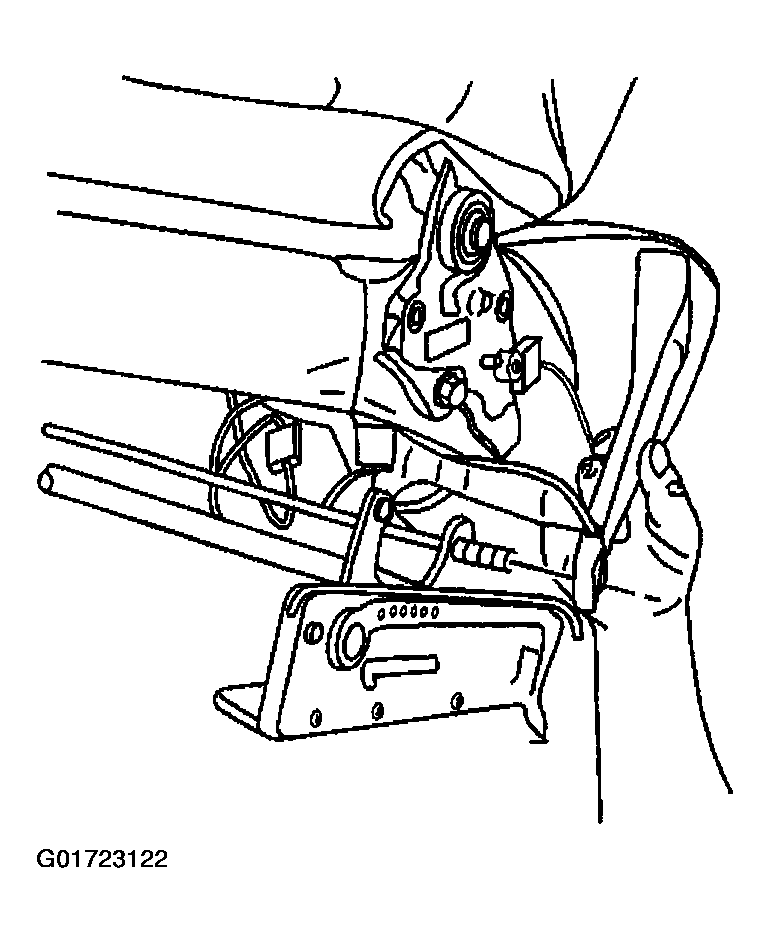

    Fig 2: Removing Right Front Seat Belt Buckle
    G01723122Courtesy of GENERAL MOTORS CORP.
