Removal Procedure

Open the seat belt guide loop cover.
Remove the bolt from seat belt guide loop.

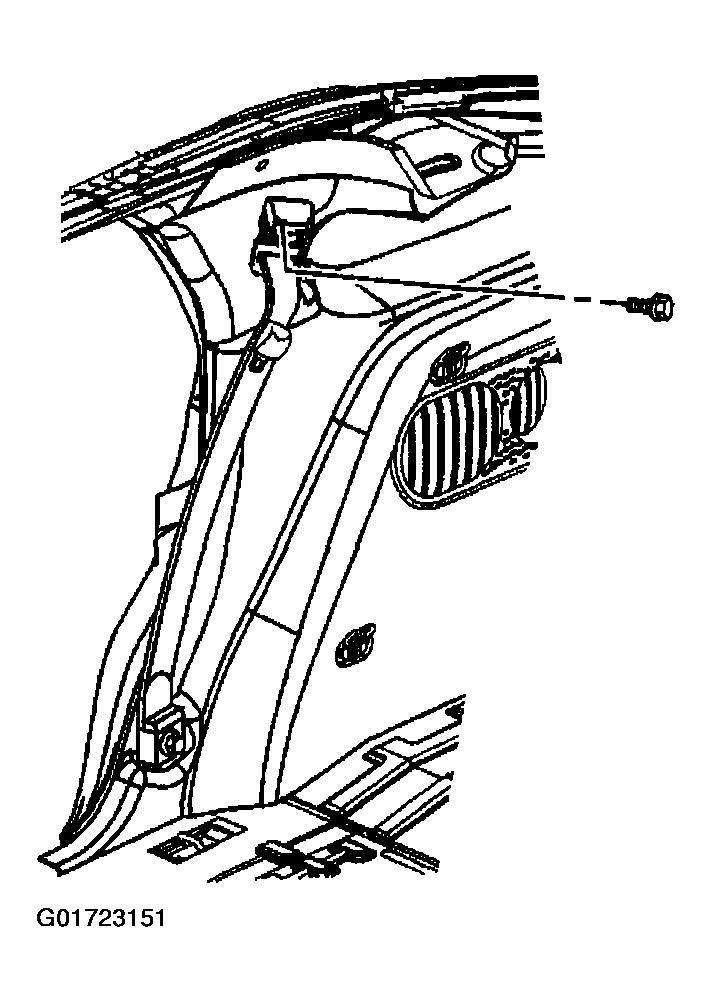

Fig 1: Removing Seat Belt Guide Loop Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the seat belt guide loop from the pillar.

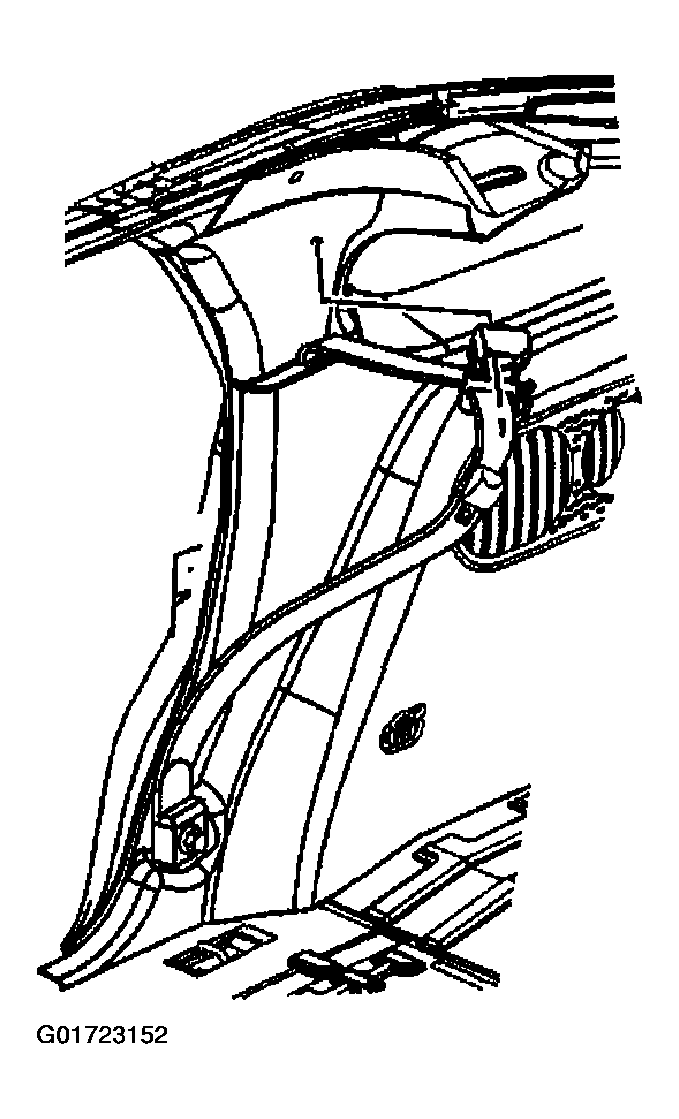

Fig 2: Removing Seat Belt Guide Loop
Courtesy of GENERAL MOTORS CORP.
Remove the bolt from the rear seat belt lower anchor.

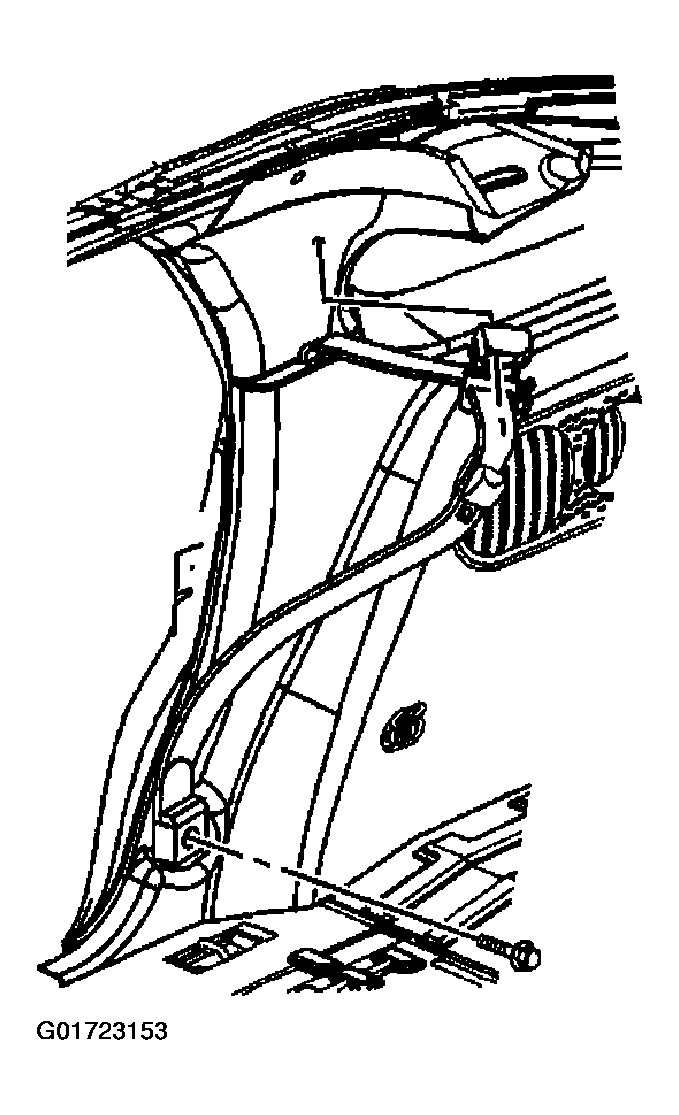

Fig 3: Removing Rear Seat Belt Lower Anchor Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the rear seat belt lower anchor.

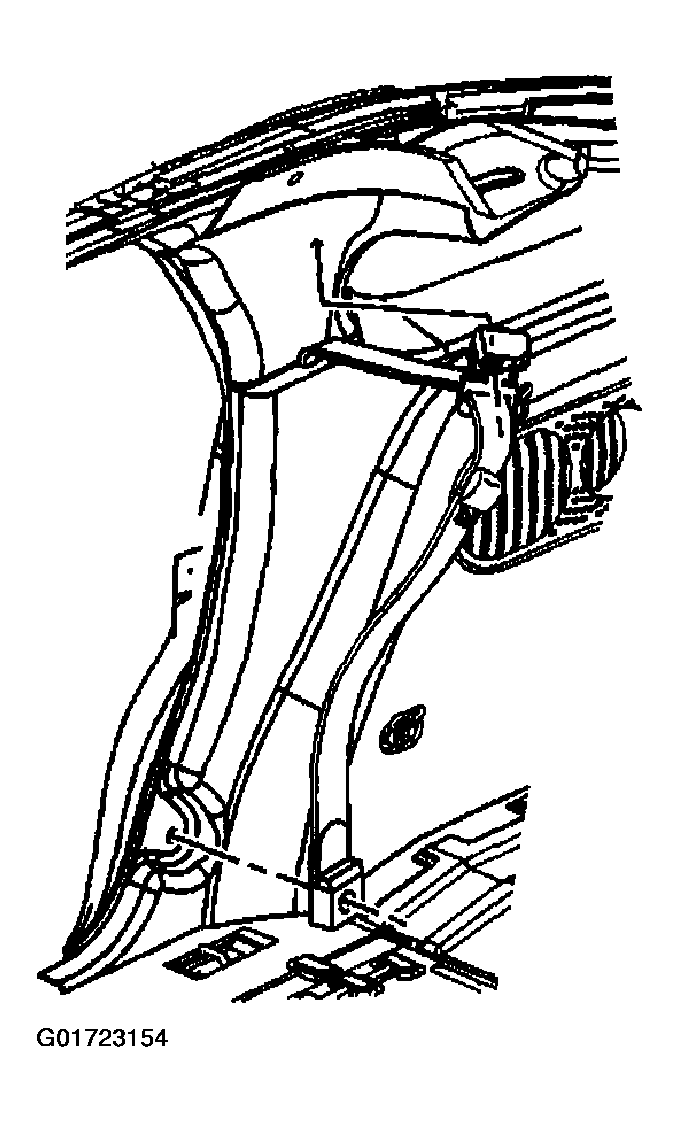

Fig 4: Removing Rear Seat Belt Lower Anchor
Courtesy of GENERAL MOTORS CORP.
Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
Remove the bolt from the rear seat belt retractor.

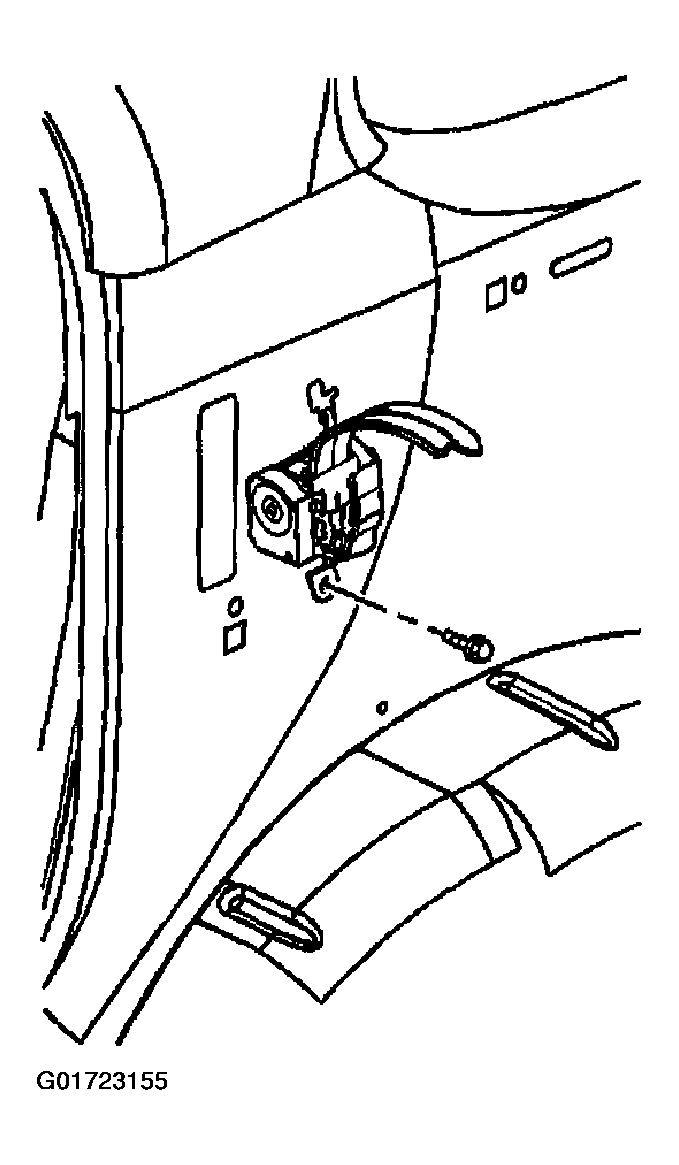

Fig 5: Removing Rear Seat Belt Retractor Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the rear seat belt retractor from the rear quarter inner panel.
Remove the rear seat belt retractor assembly from the vehicle.

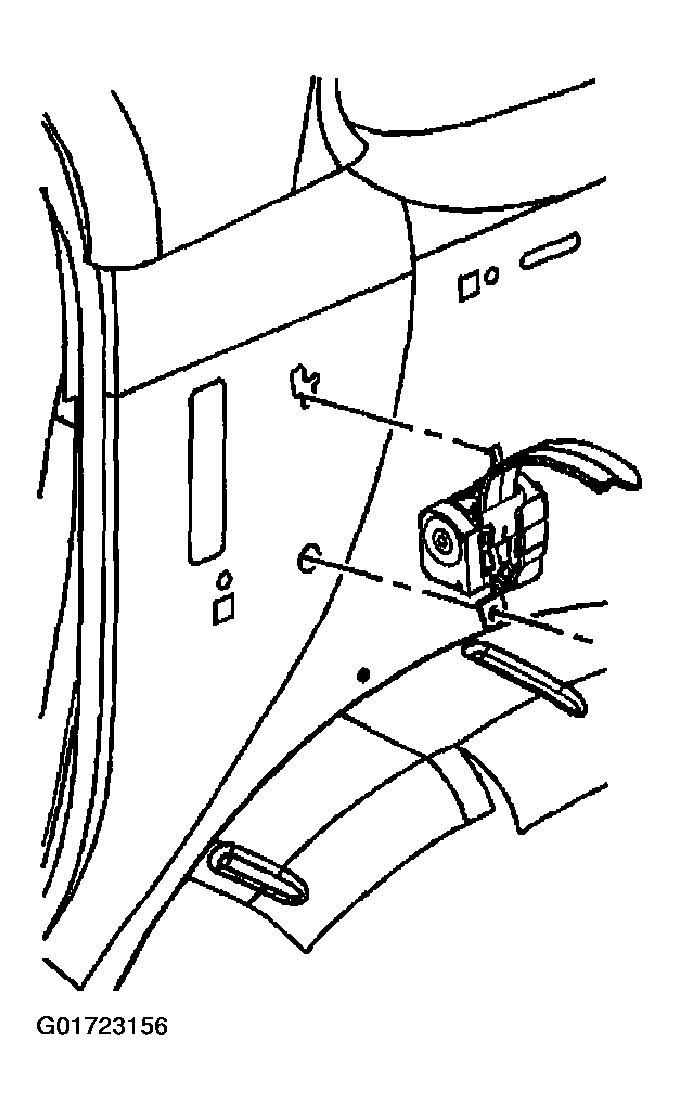

Fig 6: Removing Rear Seat Belt Retractor
Courtesy of GENERAL MOTORS CORP.
