Automatic Level Control Suspension Component Views

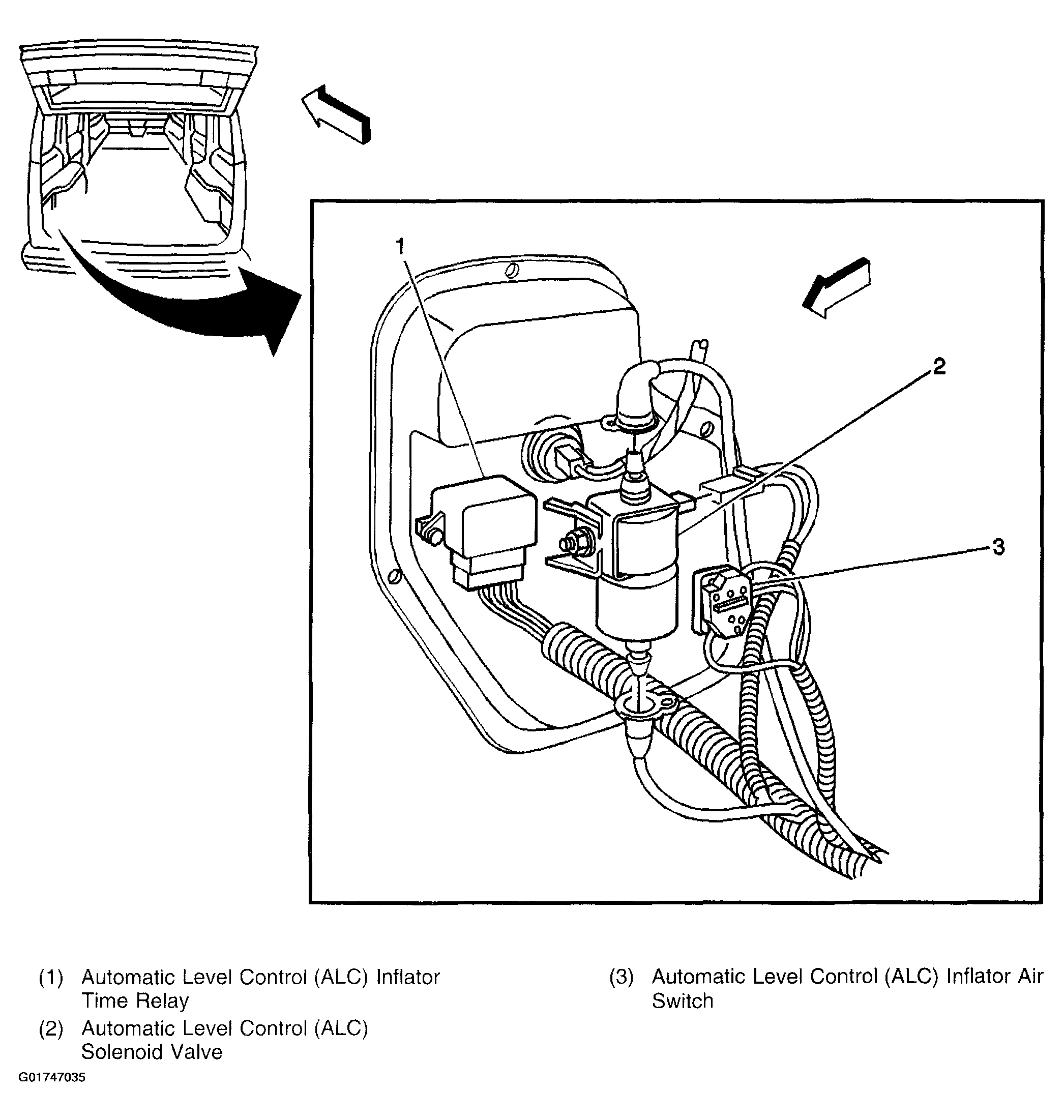

Fig 1: Relay, Switch and Solenoid Assembly

Courtesy of GENERAL MOTORS CORP.

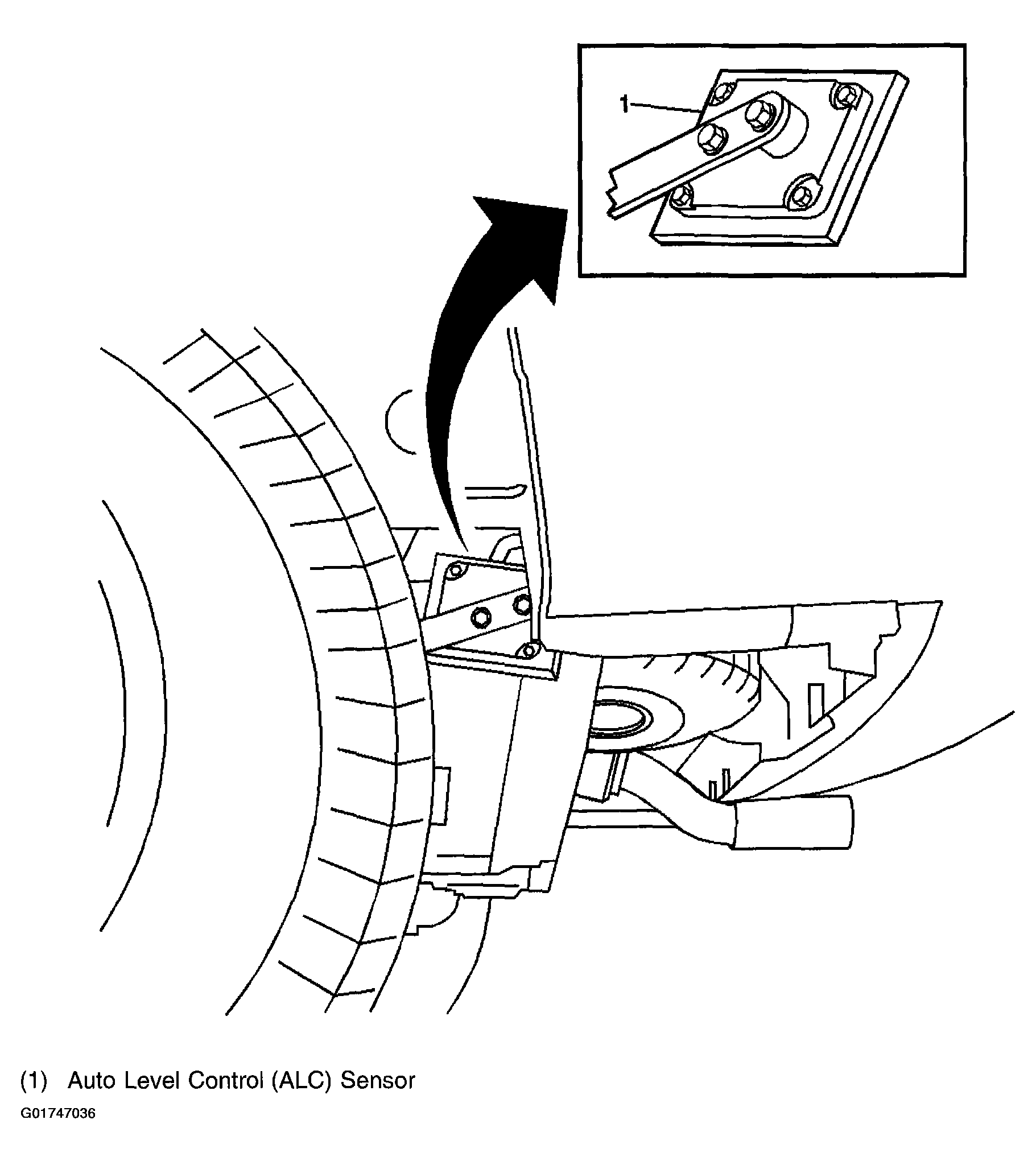

Fig 2: Automatic Level Control (ALC) Sensor

Courtesy of GENERAL MOTORS CORP.
