Window Control Module Connector End View
Window Control Module Connector End View

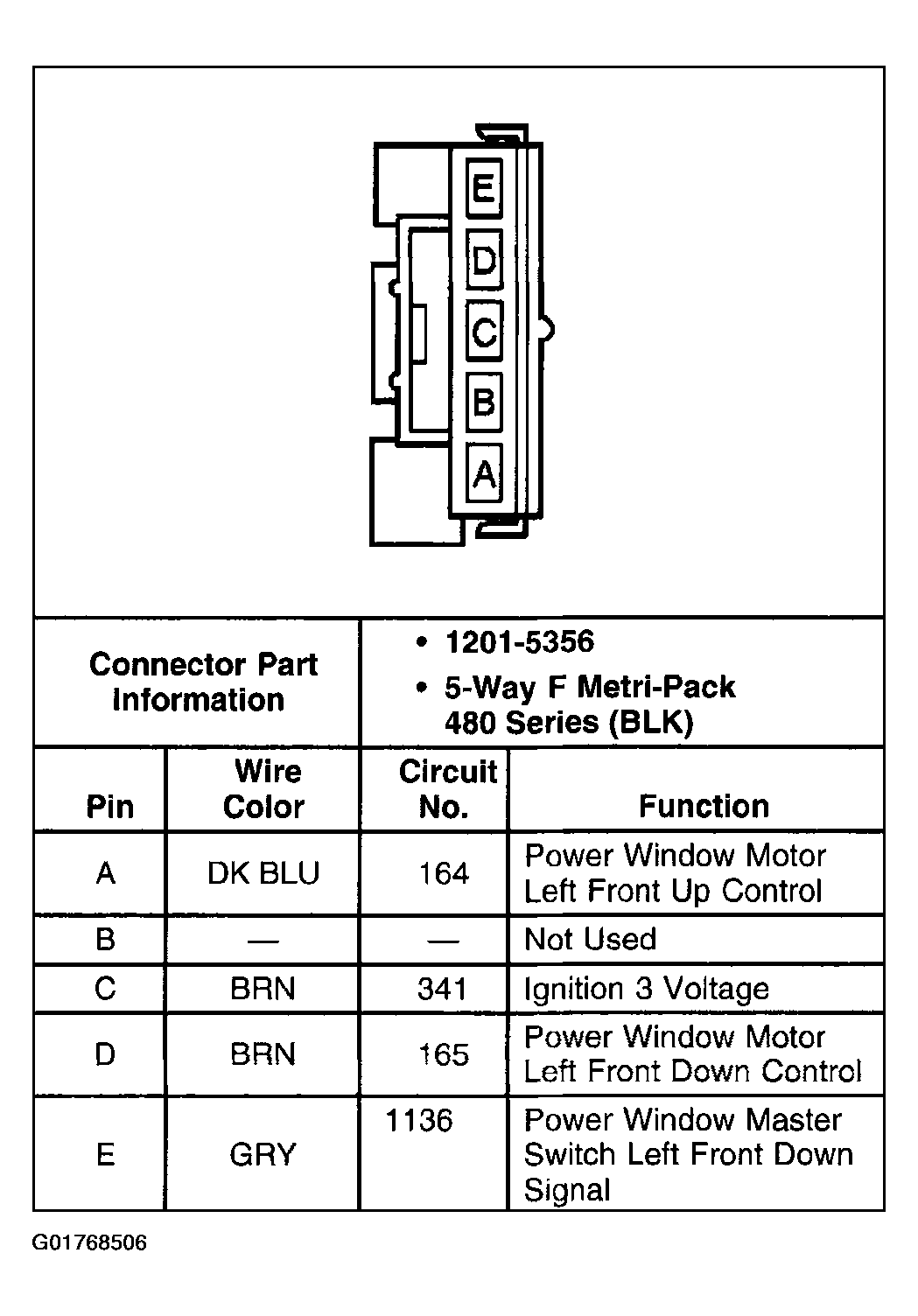

Fig 1: Window Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
