Entertainment Connector End Views

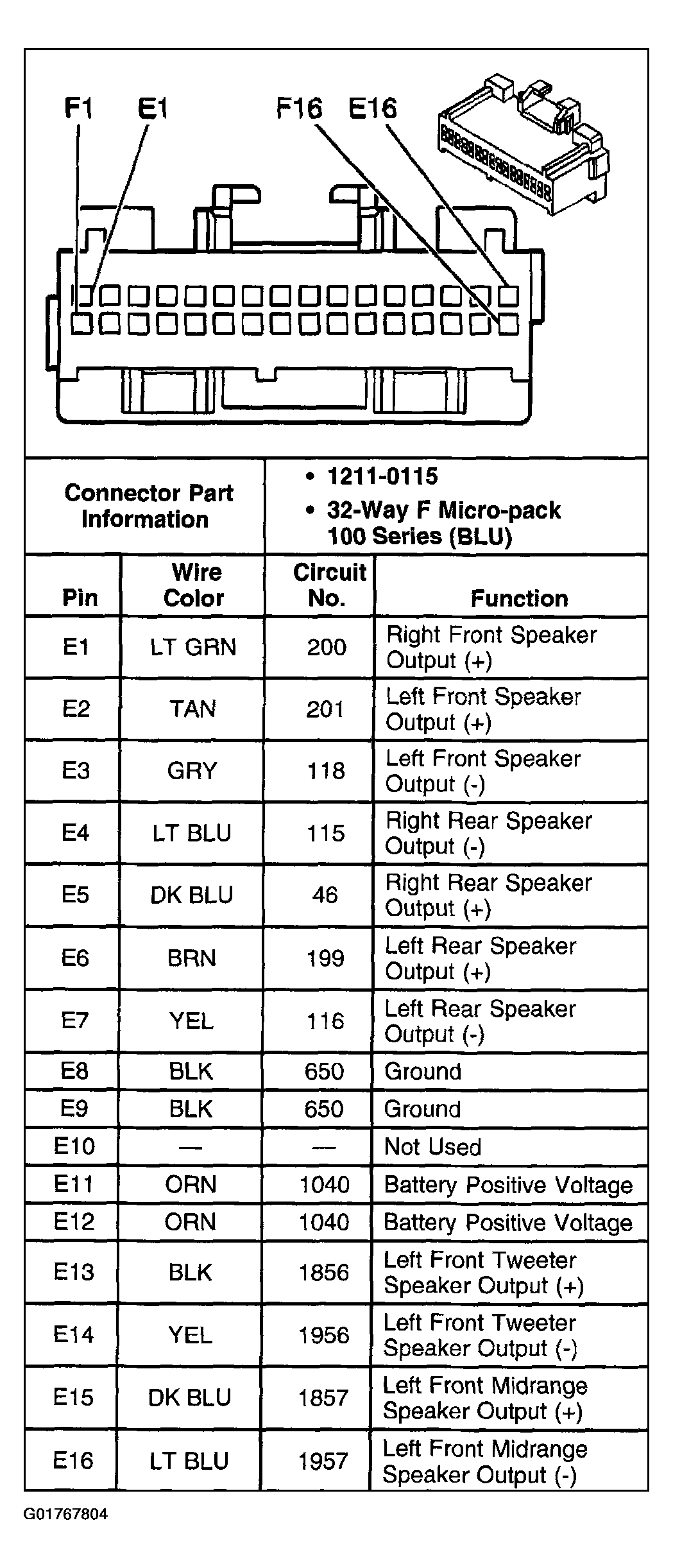

Fig 1: Amplifier - Convertible: U59 (1 Of 2)

G01767804

Courtesy of GENERAL MOTORS CORP.

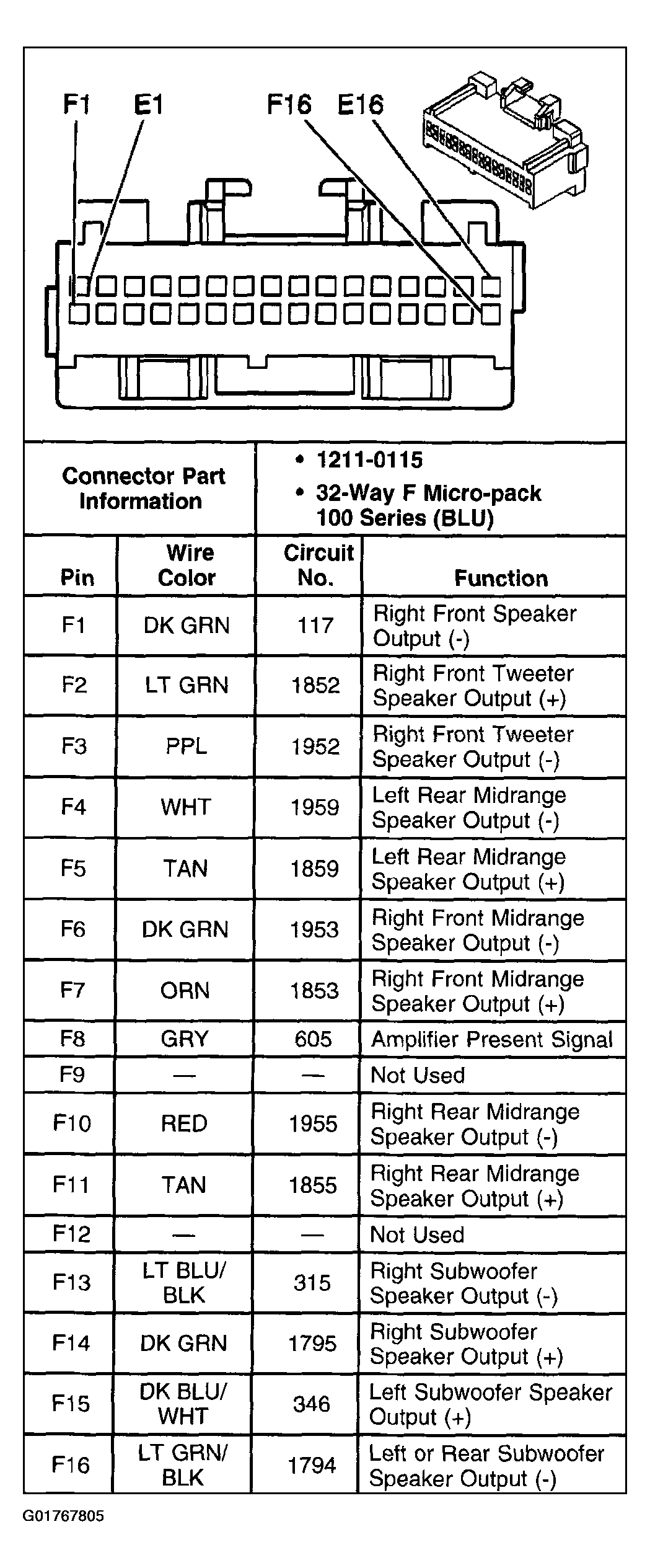

Fig 2: Amplifier - Convertible: U59 (2 Of 2)

G01767805

Courtesy of GENERAL MOTORS CORP.

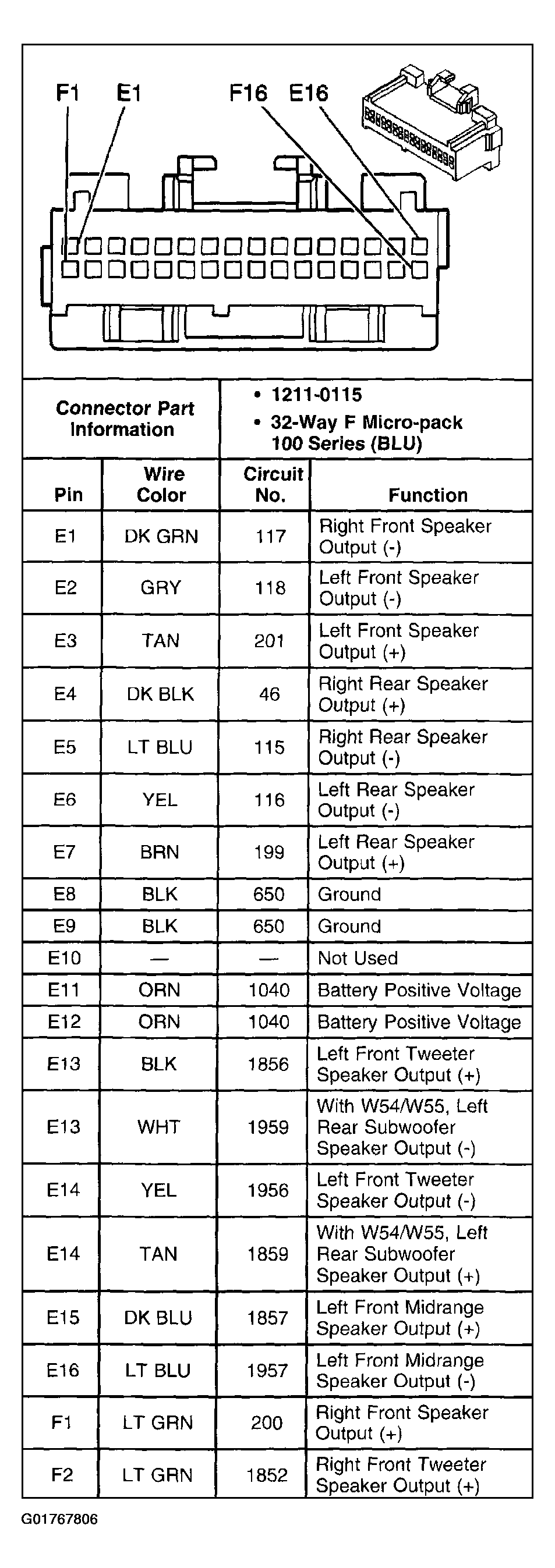

Fig 3: Amplifier - Coupe: UZ7, W54/W55 (1 Of 3)

G01767806

Courtesy of GENERAL MOTORS CORP.

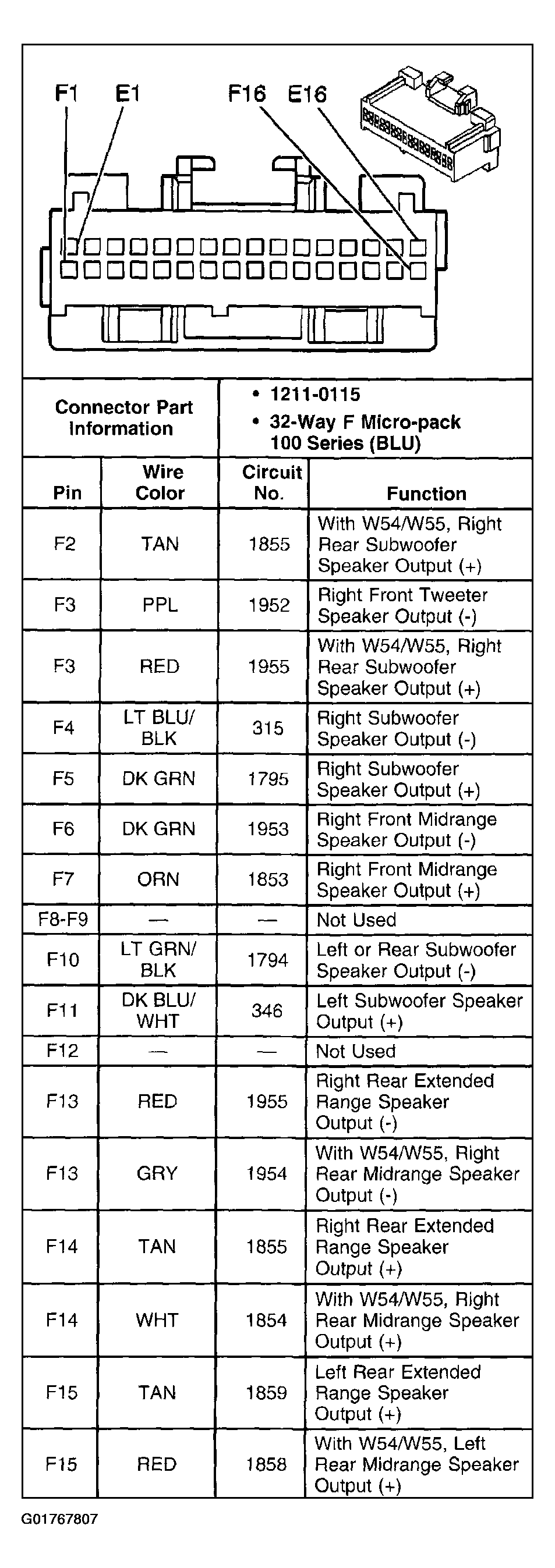

Fig 4: Amplifier - Coupe: UZ7, W54/W55 (2 Of 3)

G01767807

Courtesy of GENERAL MOTORS CORP.

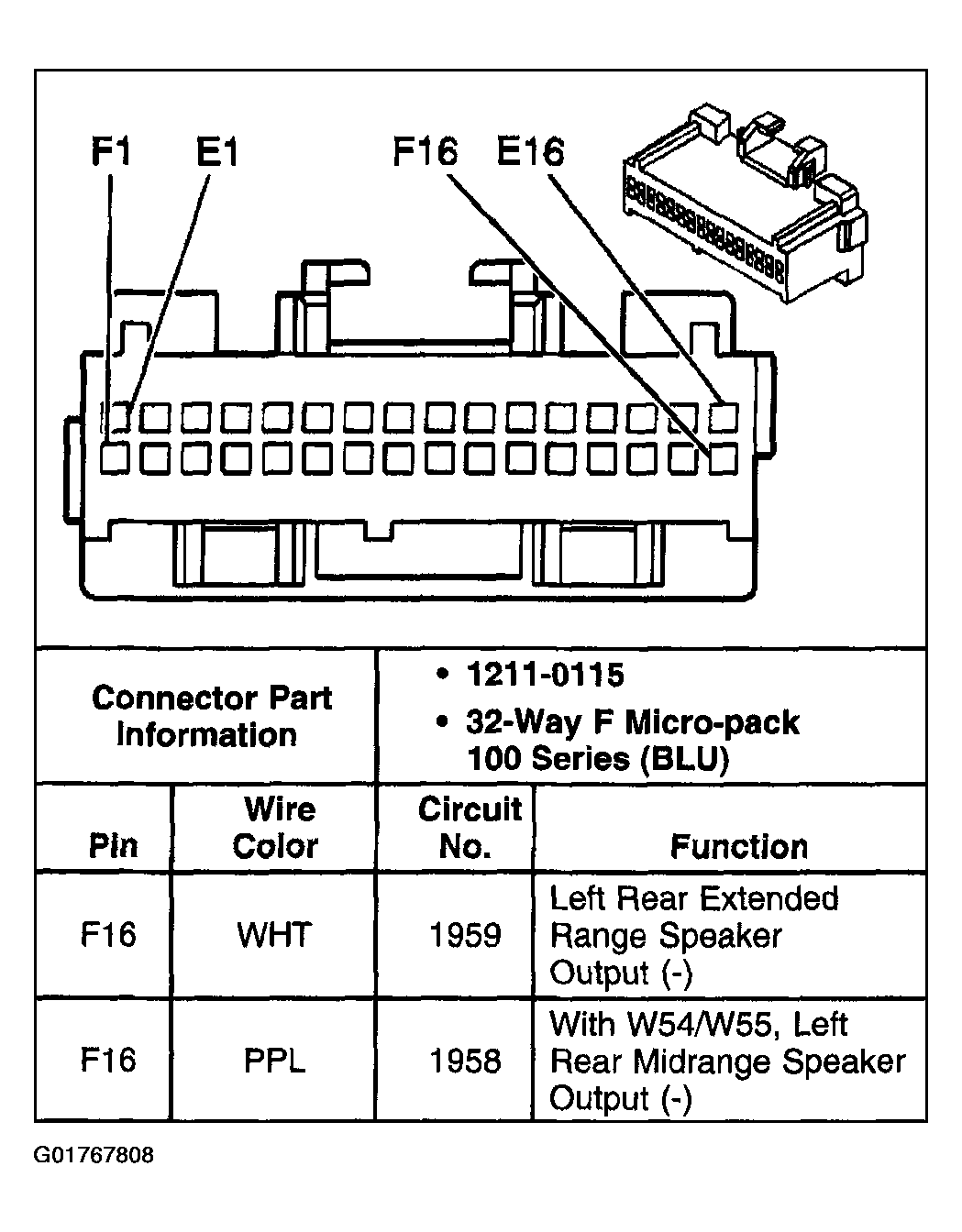

Fig 5: Amplifier - Coupe: UZ7, W54/W55 (3 Of 3)

G01767808

Courtesy of GENERAL MOTORS CORP.

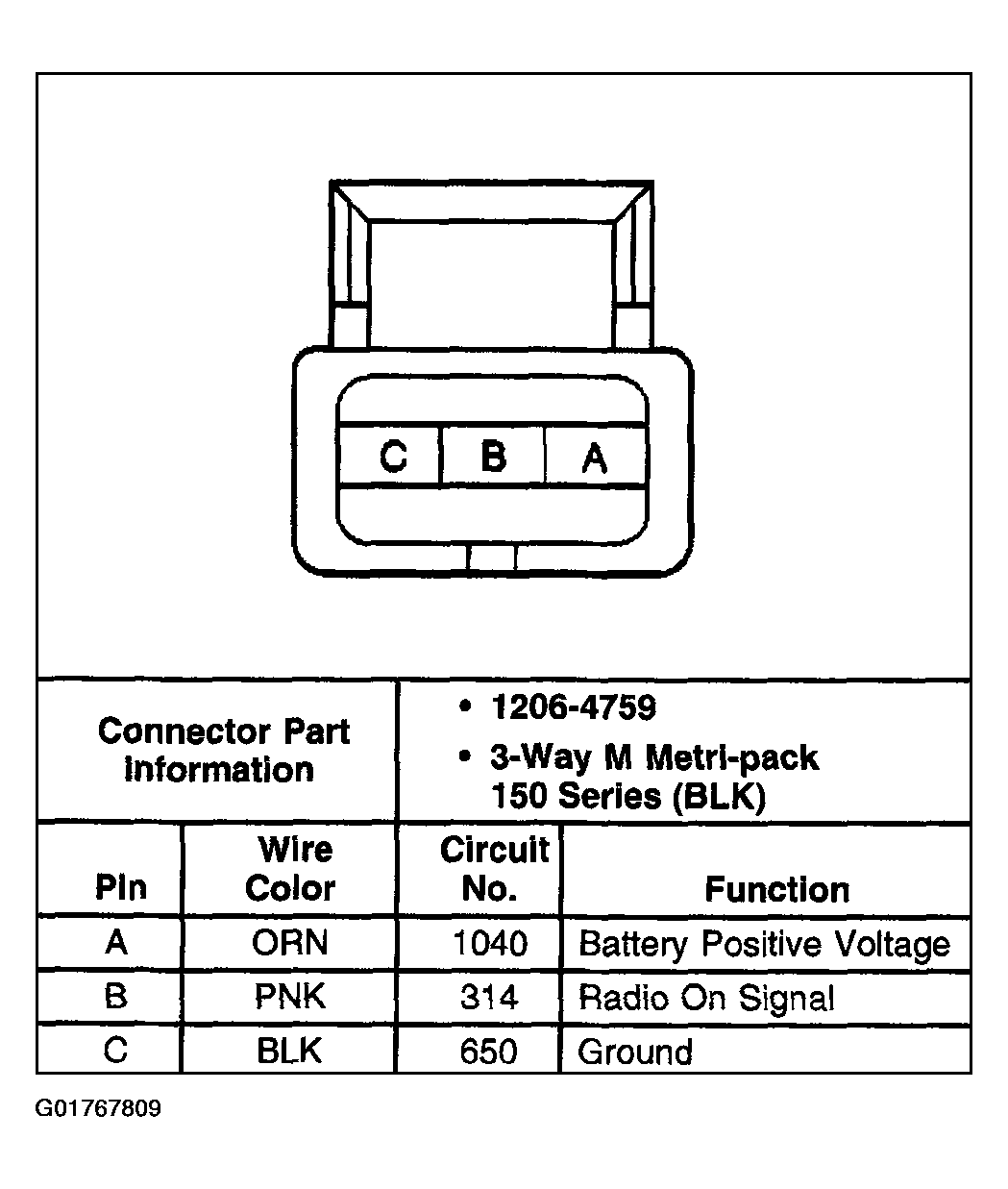

Fig 6: Antenna (Radio Power)

G01767809

Courtesy of GENERAL MOTORS CORP.

Fig 7: Front Speaker, LH (With UQO, W53) or Front Midrange Speaker, RH (With W54/W55)

G01767810

Courtesy of GENERAL MOTORS CORP.

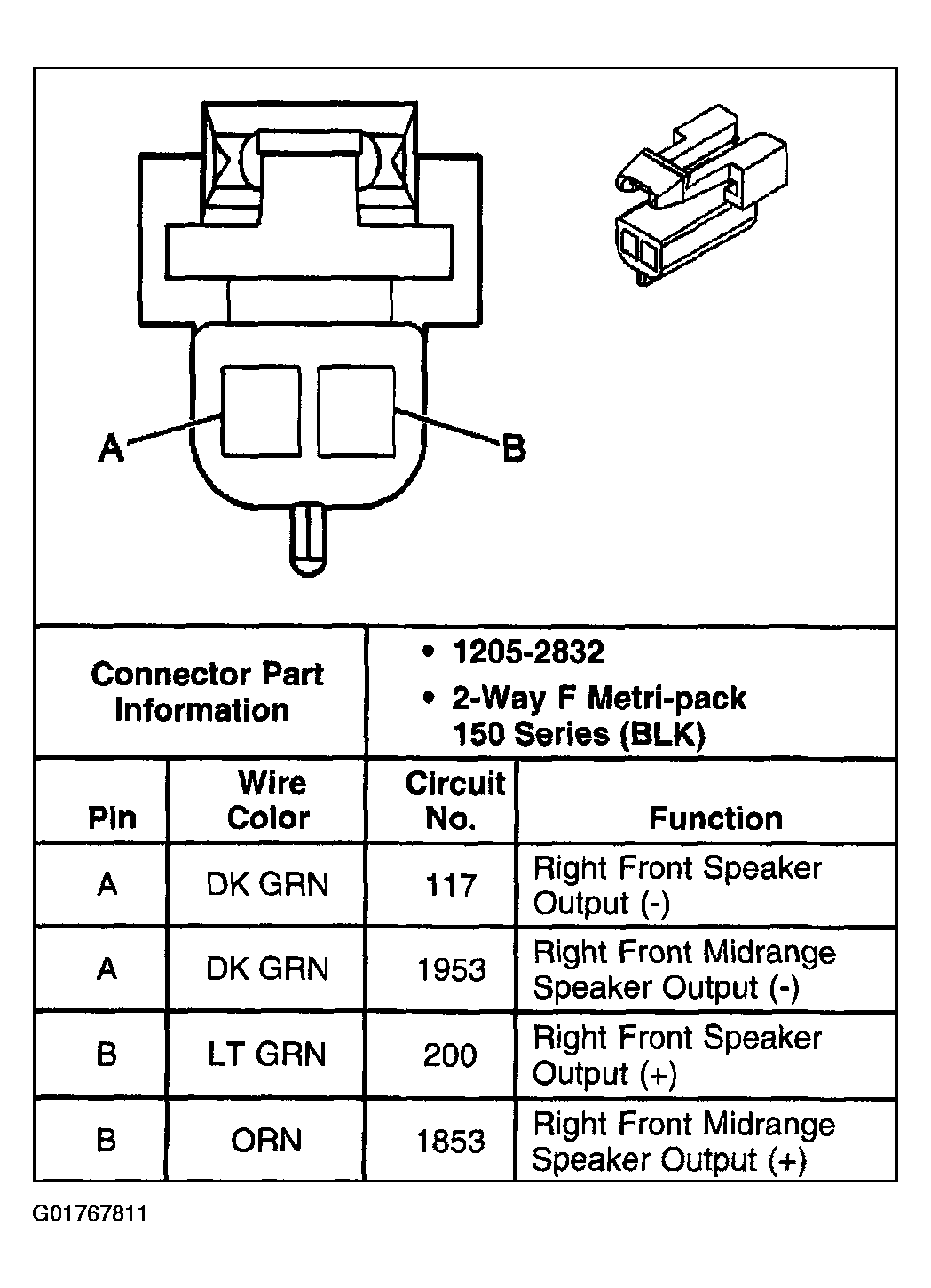

Fig 8: Front Speaker, RH (With UQO, W53) or Front Midrange Speaker, RH (With W54/W55)

G01767811

Courtesy of GENERAL MOTORS CORP.

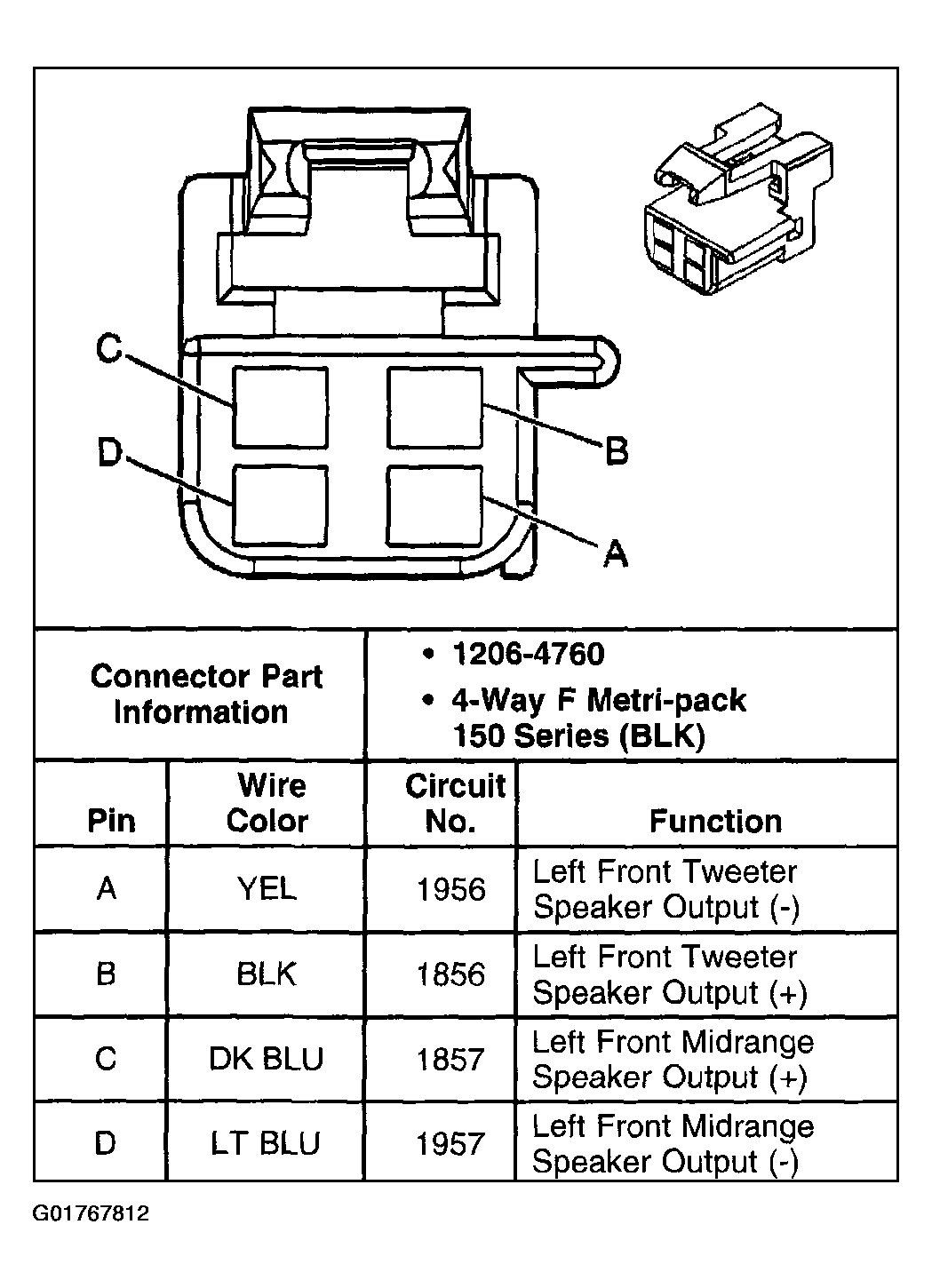

Fig 9: Front Speaker Assembly, LH (With U59, UZ7)

G01767812

Courtesy of GENERAL MOTORS CORP.

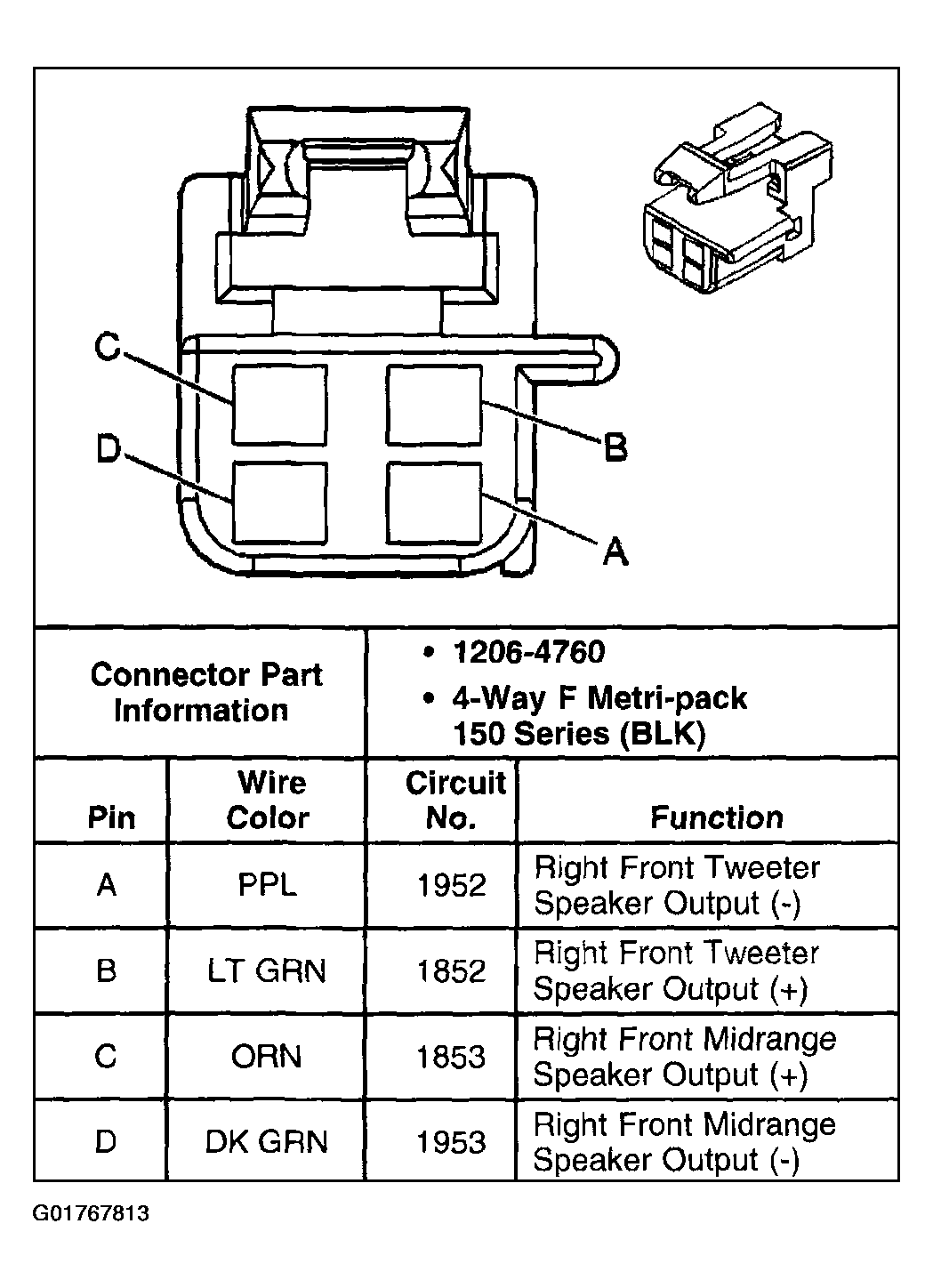

Fig 10: Front Speaker Assembly, RH (With U59, UZ7)

G01767813

Courtesy of GENERAL MOTORS CORP.

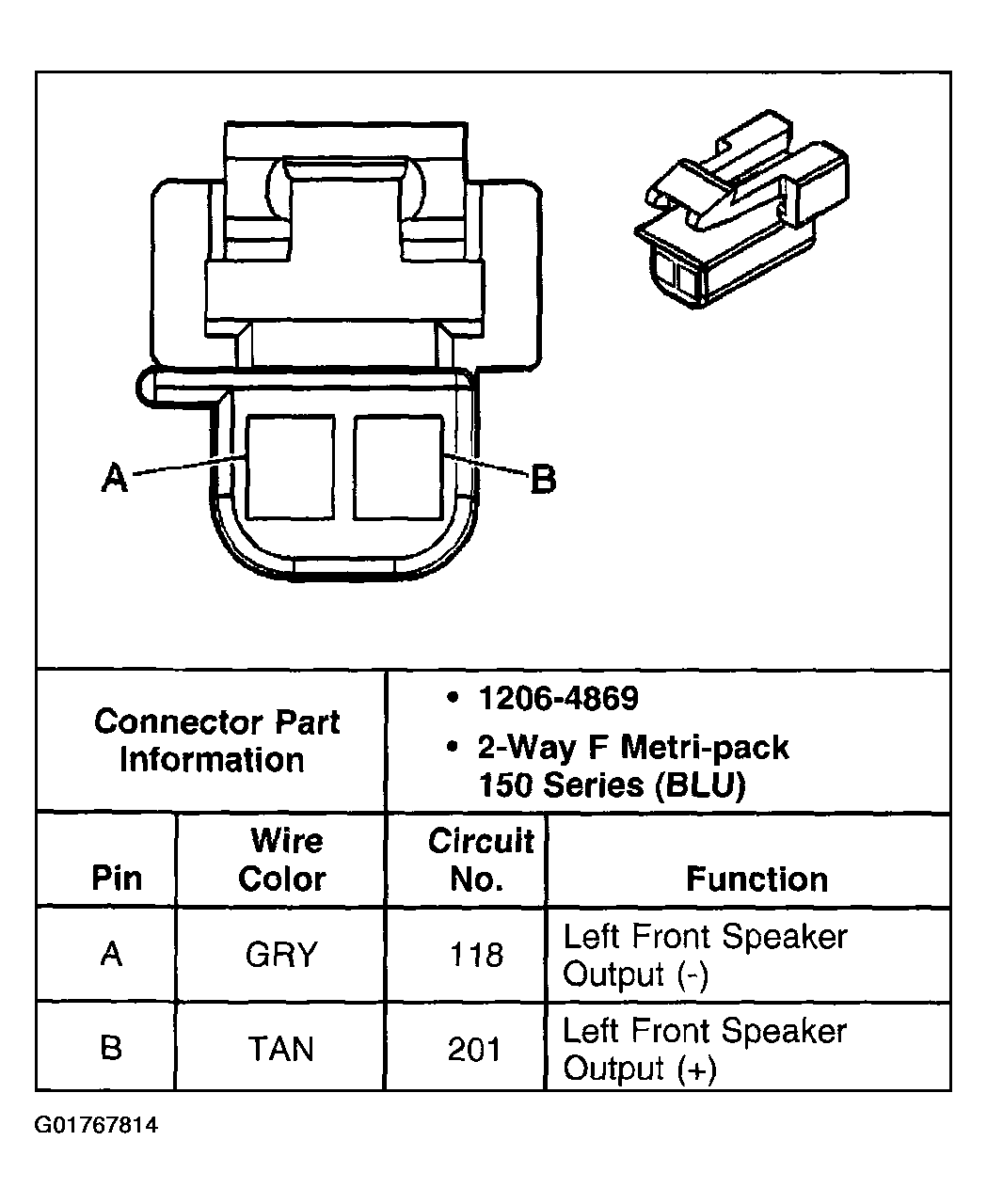

Fig 11: Front Tweeter Speaker, LH (With W54/W55)

G01767814

Courtesy of GENERAL MOTORS CORP.

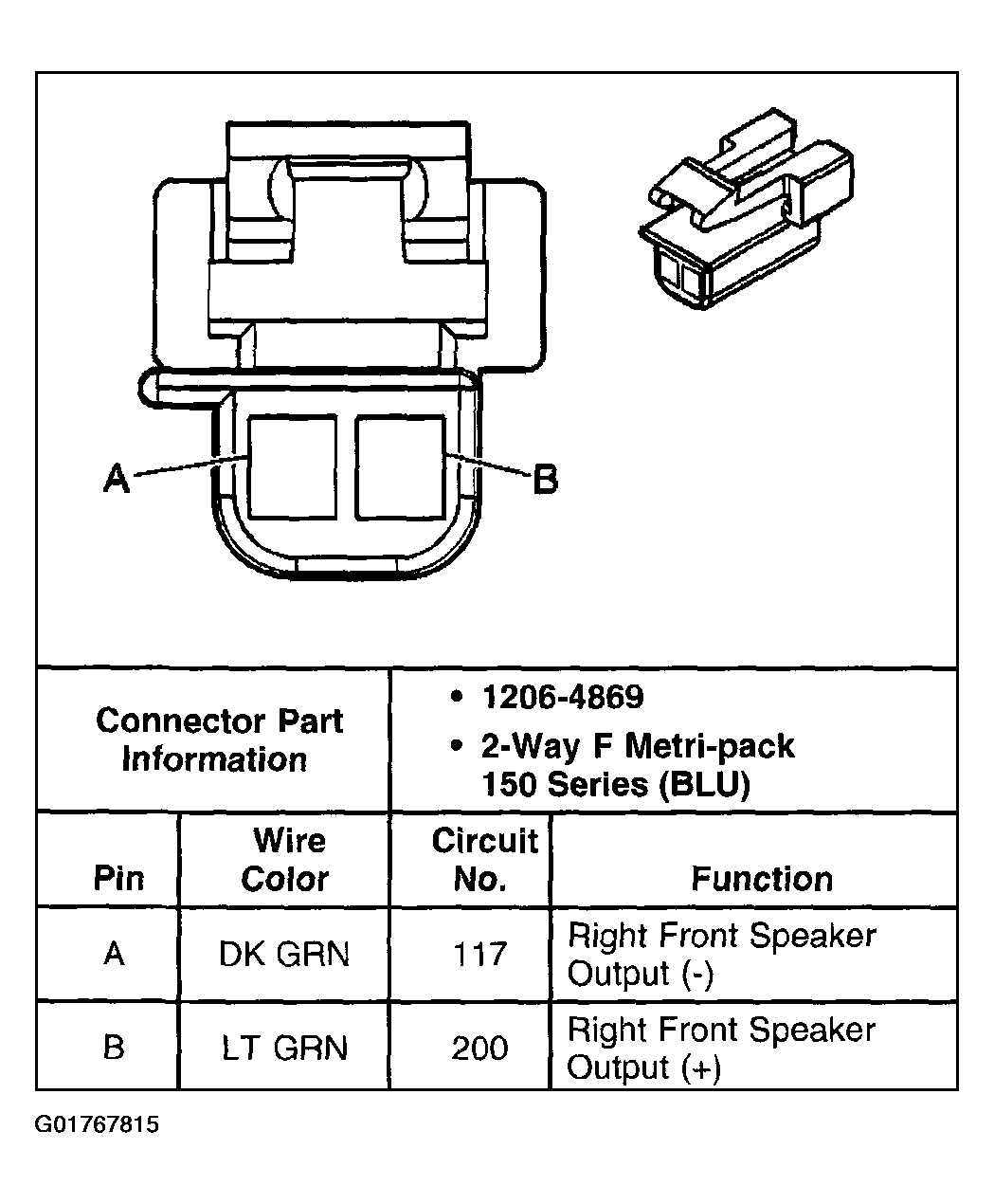

Fig 12: Front Tweeter Speaker, RH (With W54/W55)

G01767815

Courtesy of GENERAL MOTORS CORP.

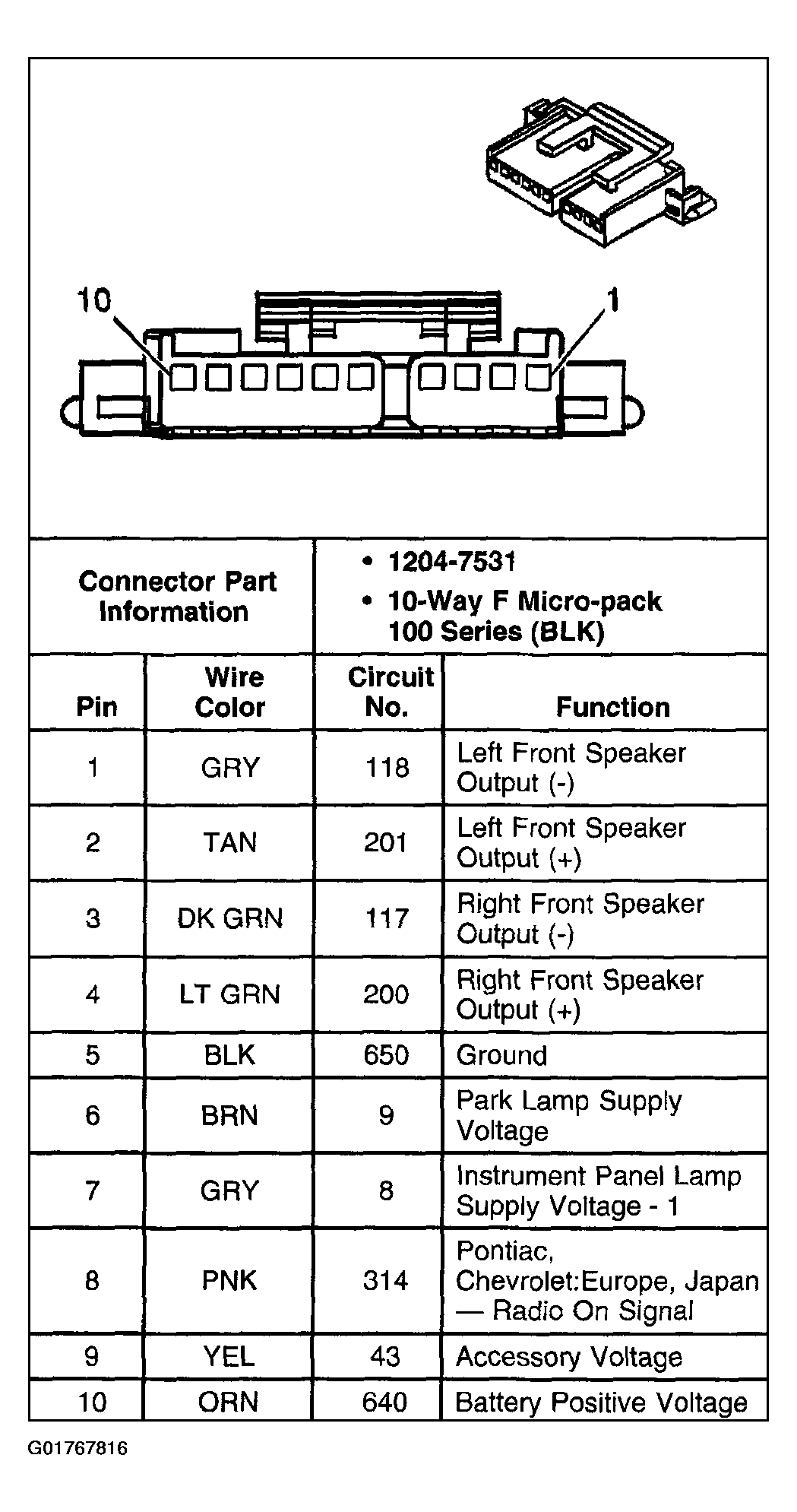

Fig 13: Radio Connector C1

G01767816

Courtesy of GENERAL MOTORS CORP.

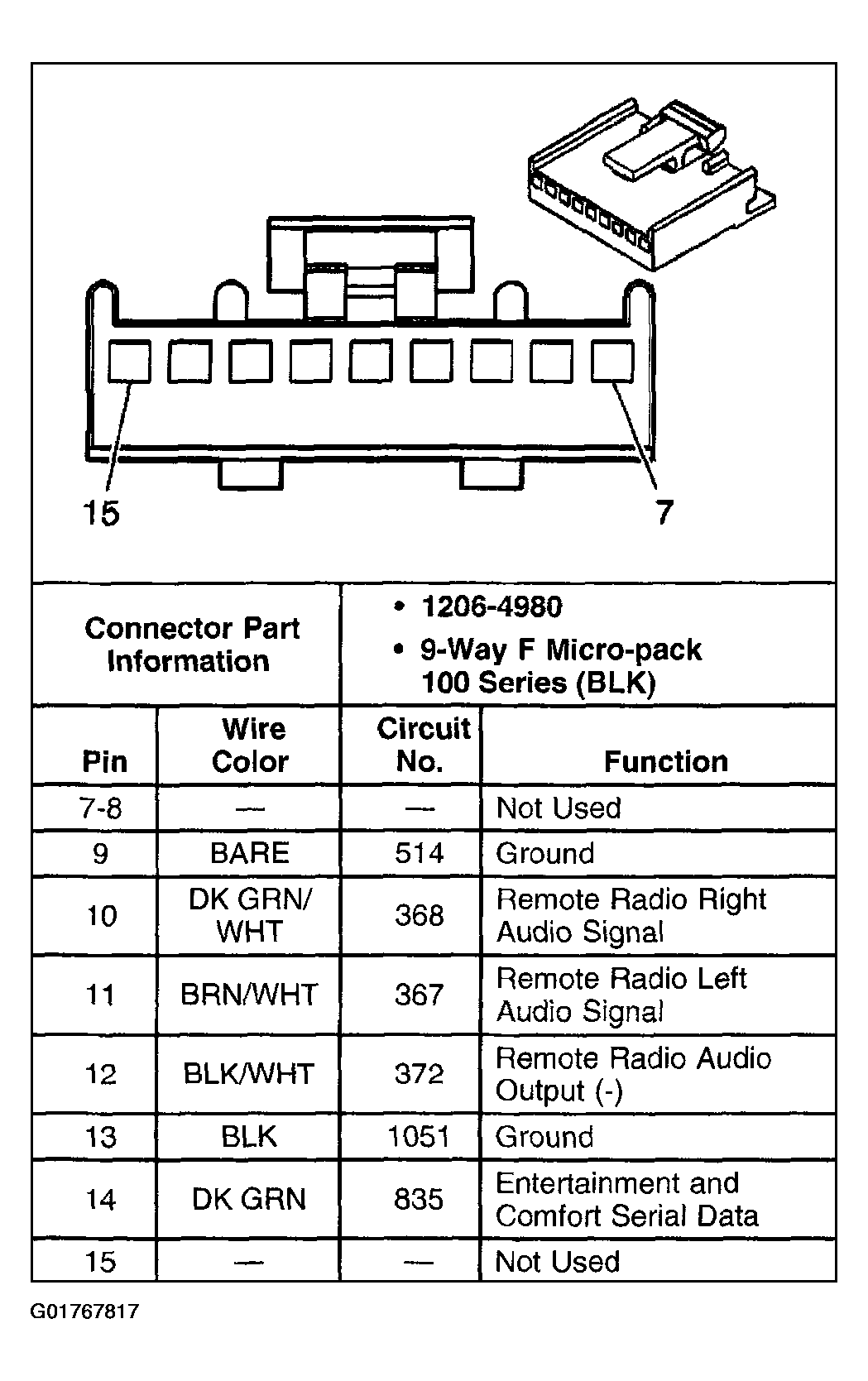

Fig 14: Radio Connector C2

G01767817

Courtesy of GENERAL MOTORS CORP.

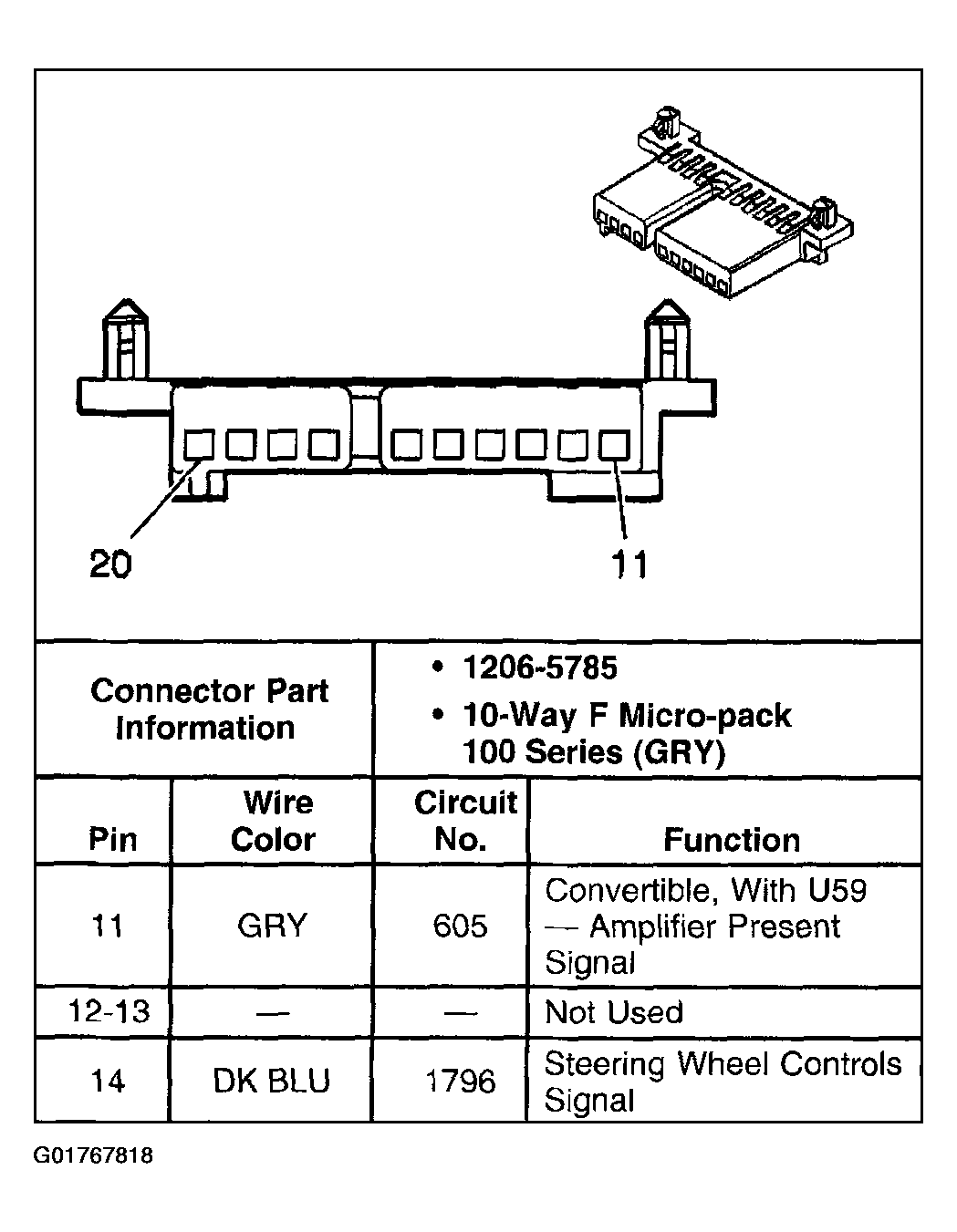

Fig 15: Radio Connector C3 (1 Of 2)

G01767818

Courtesy of GENERAL MOTORS CORP.

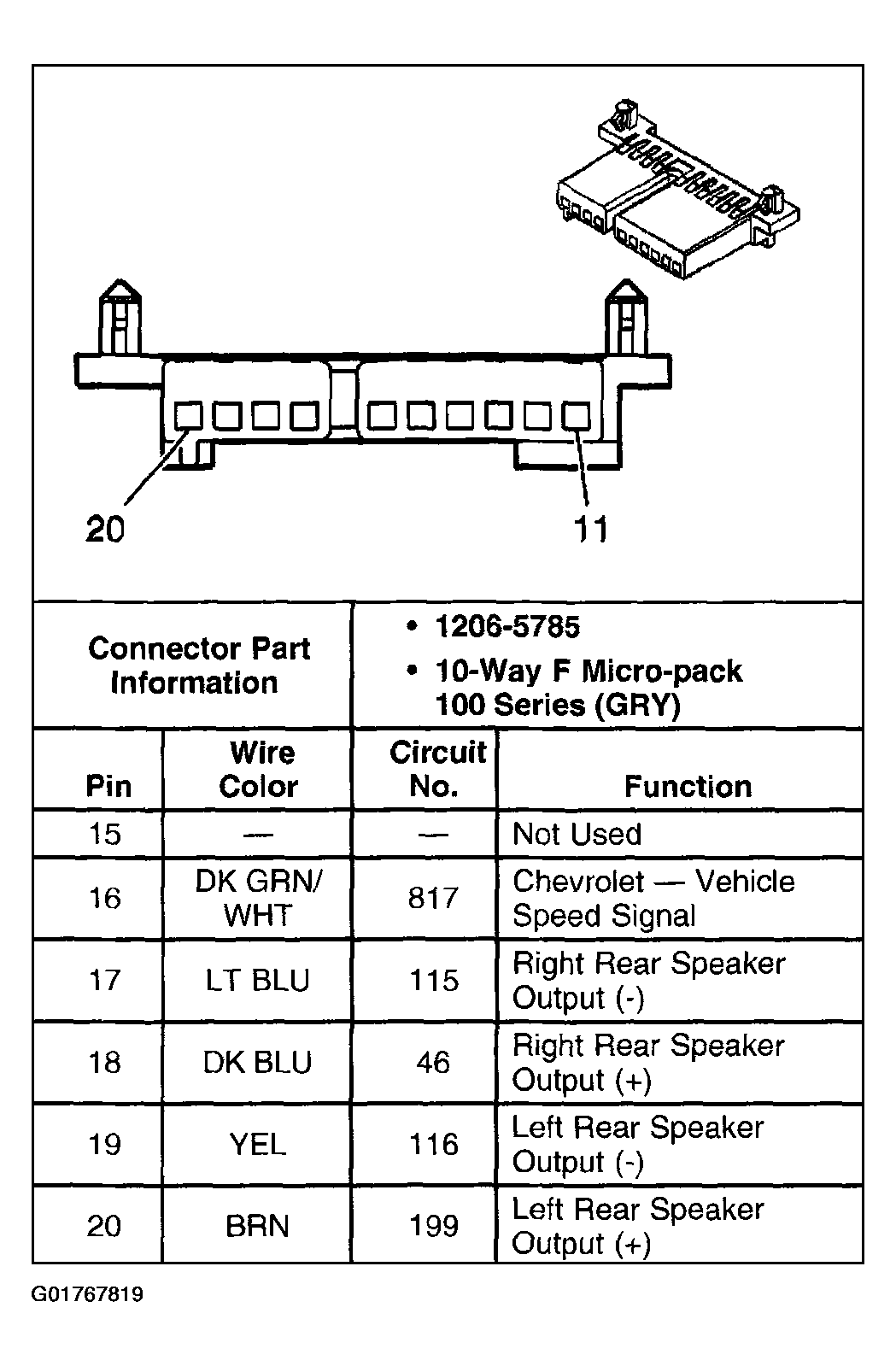

Fig 16: Radio Connector C3 (2 Of 2)

G01767819

Courtesy of GENERAL MOTORS CORP.

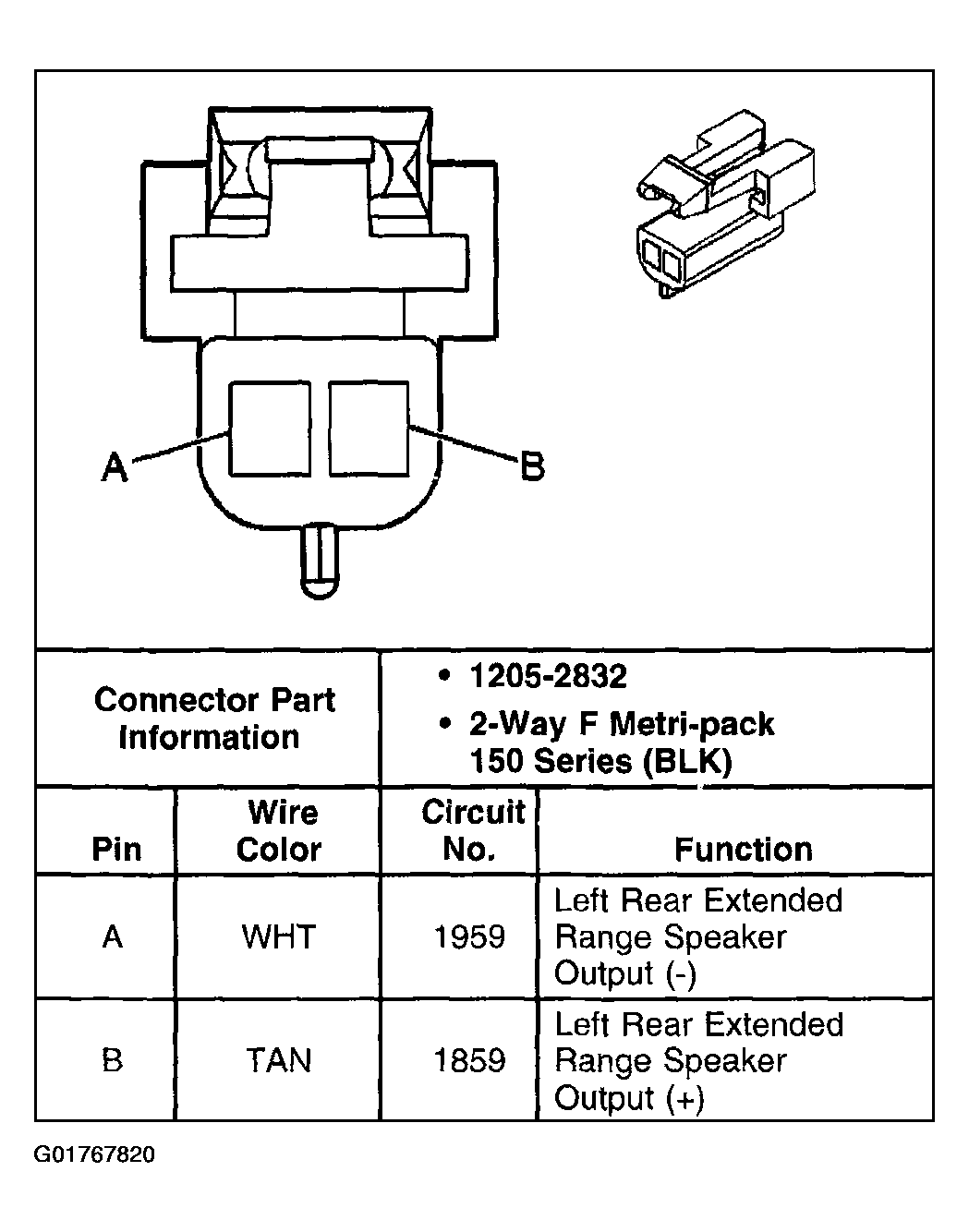

Fig 17: Rear Extended Range Speaker, LH (With UZ7)

G01767820

Courtesy of GENERAL MOTORS CORP.

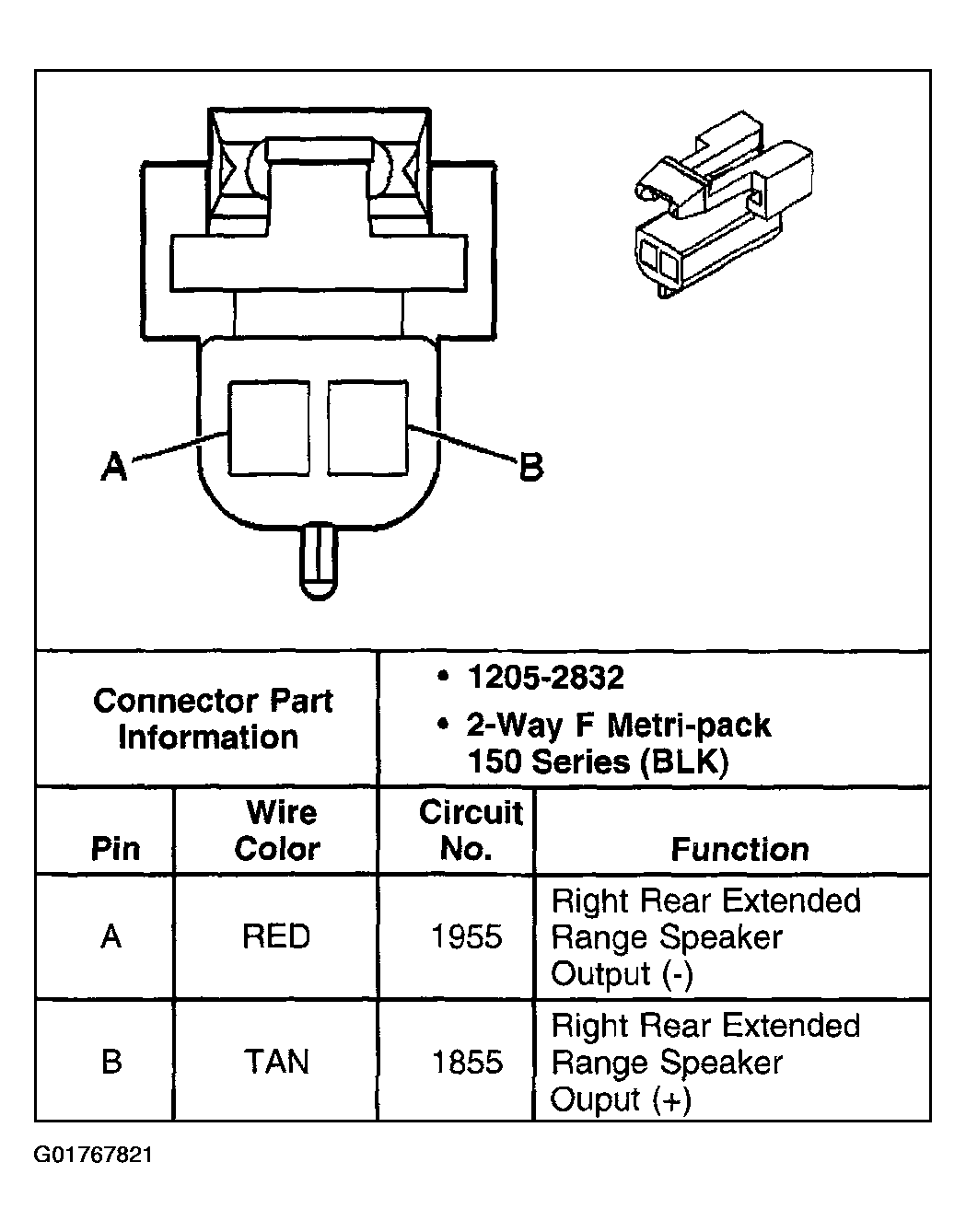

Fig 18: Rear Extended Range Speaker, RH (With UZ7)

G01767821

Courtesy of GENERAL MOTORS CORP.

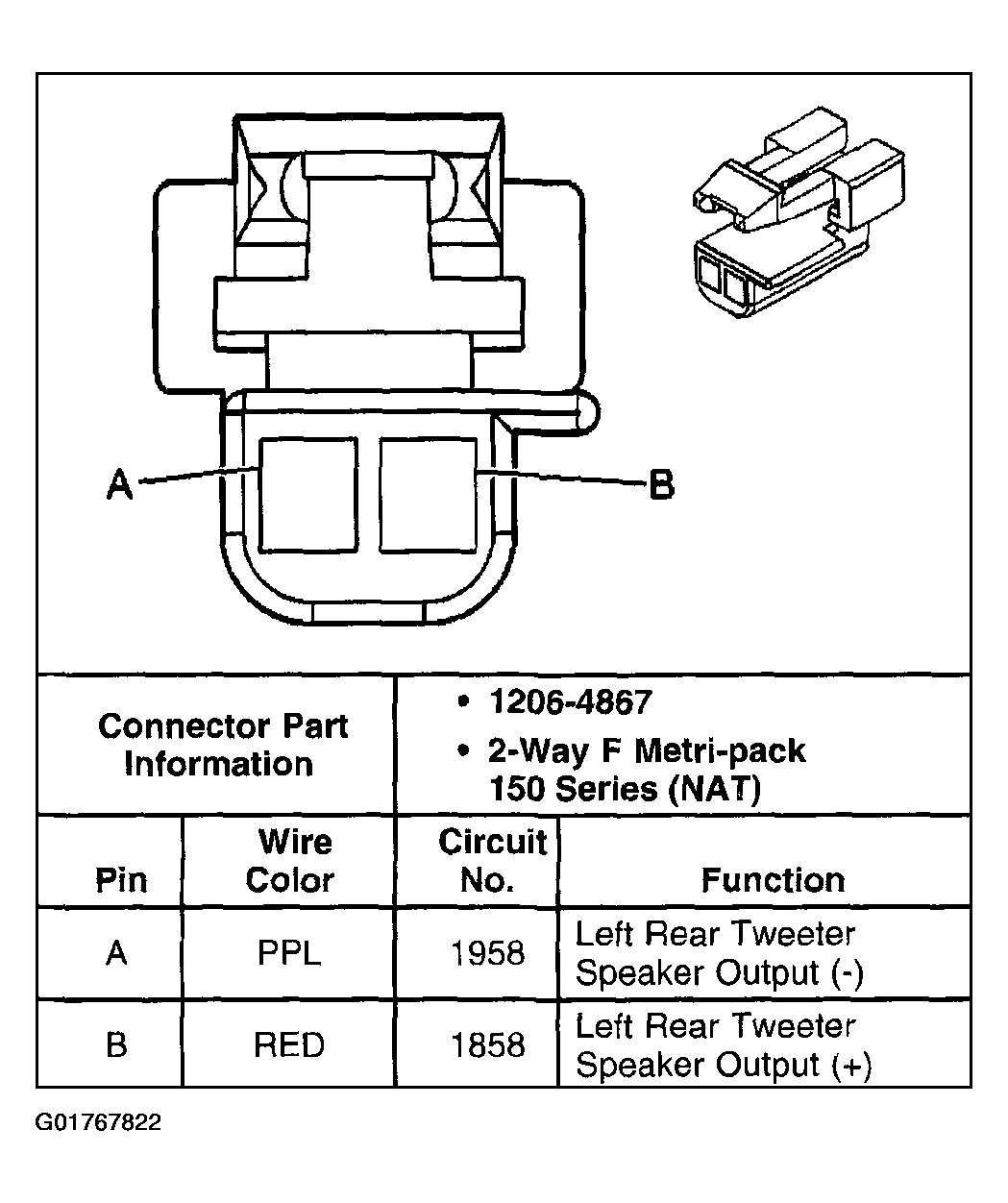

Fig 19: Rear Midrange Speaker, LH (With W54/W55)

G01767822

Courtesy of GENERAL MOTORS CORP.

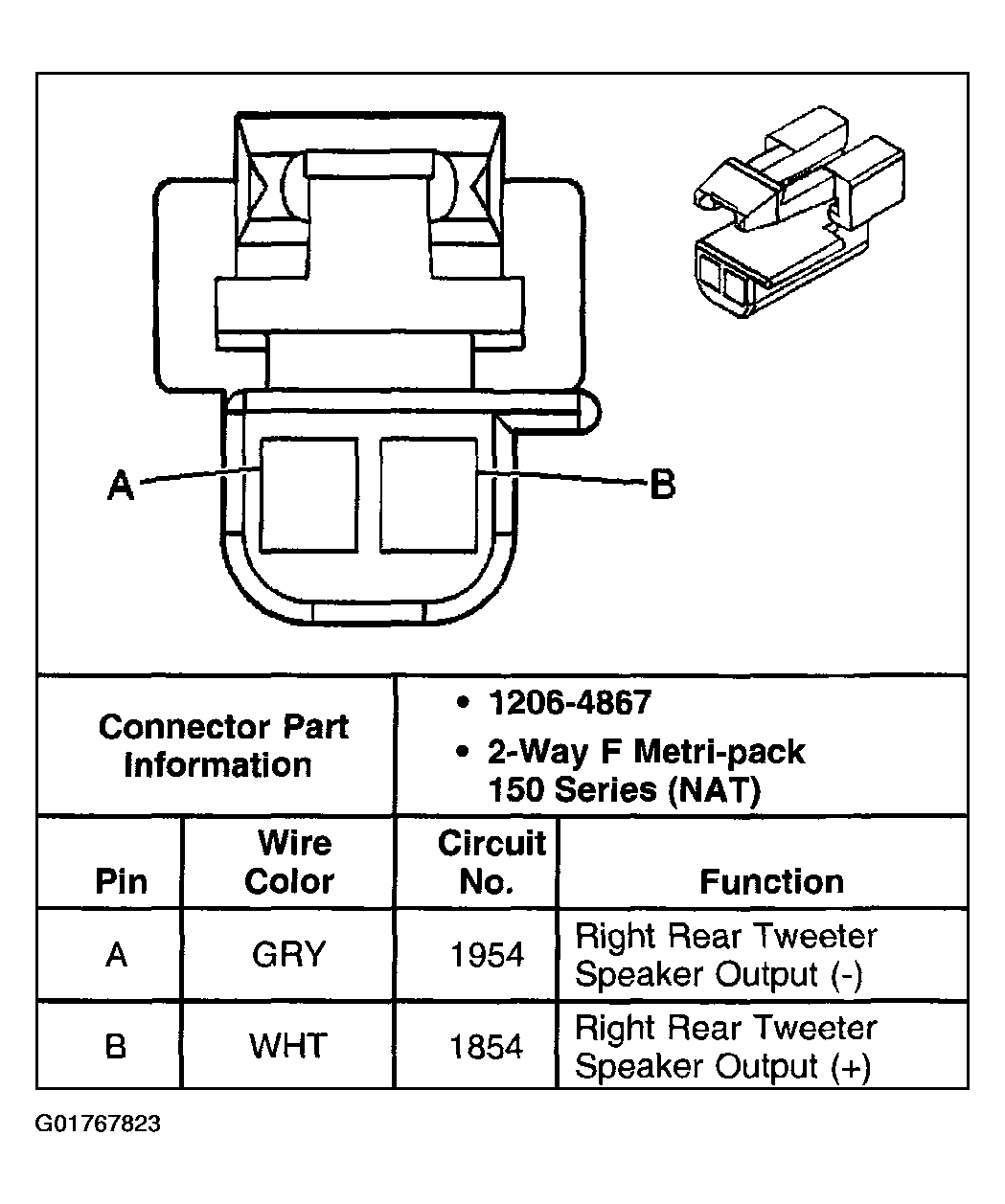

Fig 20: Rear Midrange Speaker, RH (With W54/W55)

G01767823

Courtesy of GENERAL MOTORS CORP.

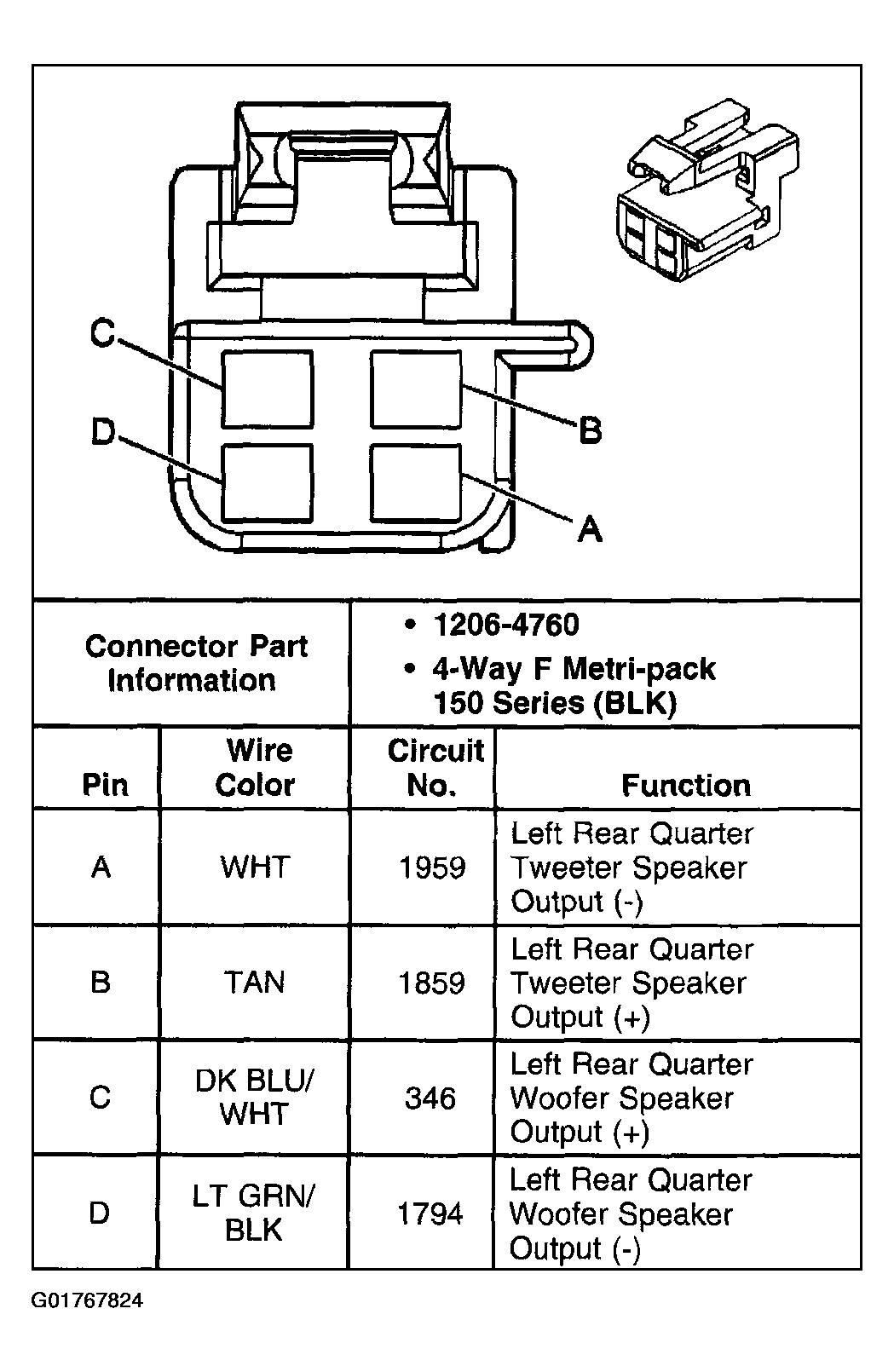

Fig 21: Rear Quarter Speaker, LH (With U59)

G01767824

Courtesy of GENERAL MOTORS CORP.

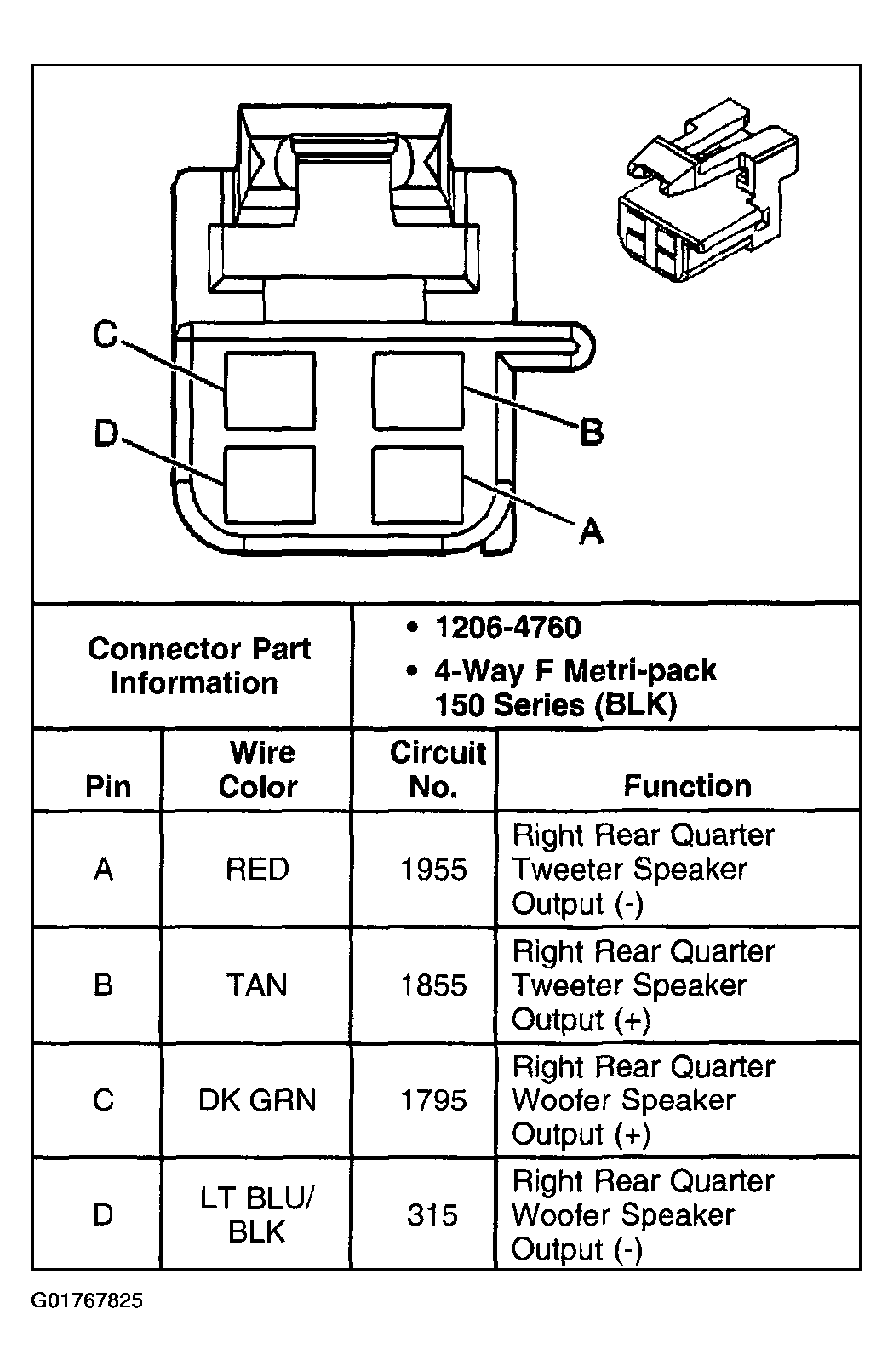

Fig 22: Rear Quarter Speaker, RH (With U59)

G01767825

Courtesy of GENERAL MOTORS CORP.

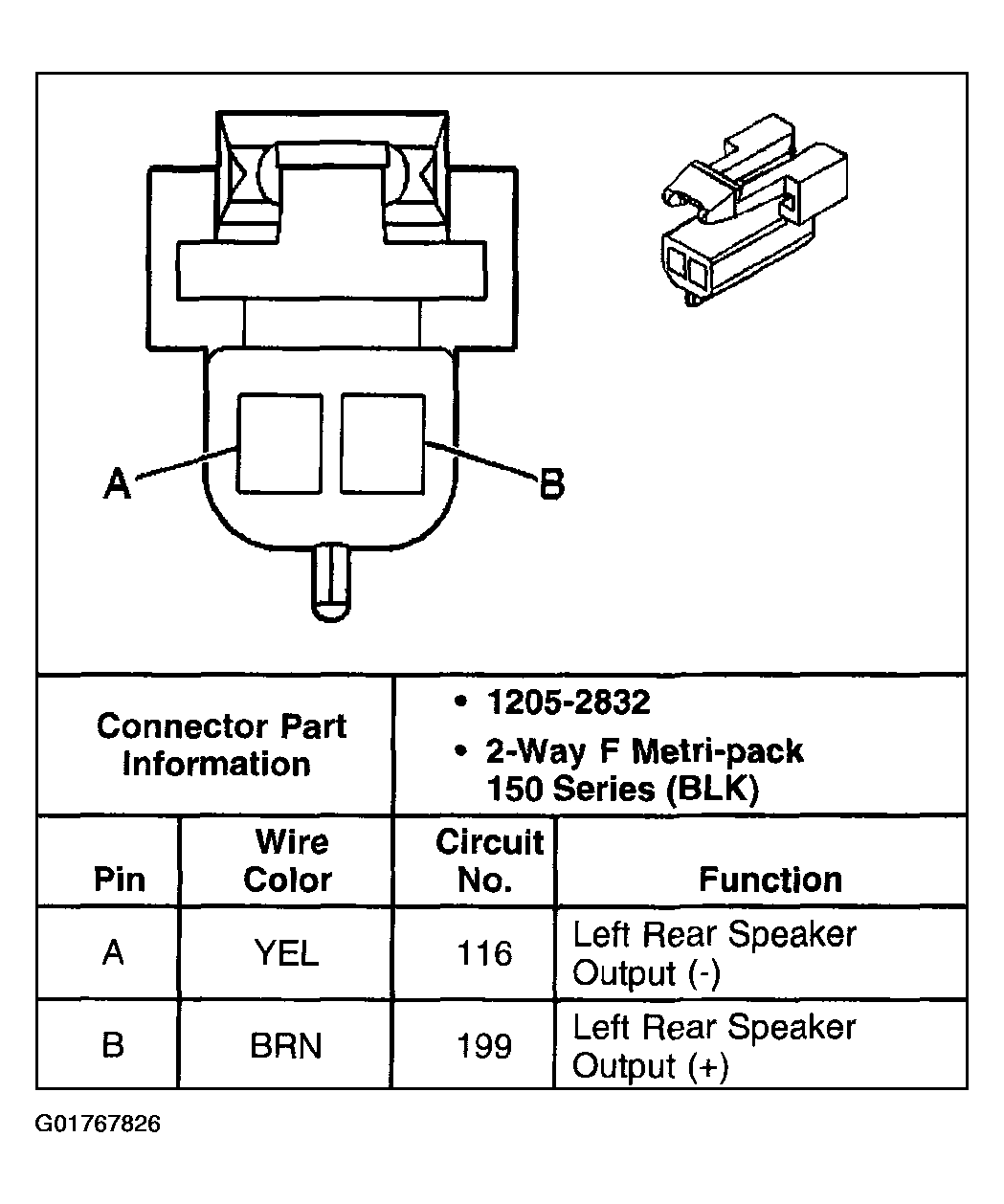

Fig 23: Rear Speaker, LH - Chevrolet and Pontiac Domestic, With UQO, W53

G01767826

Courtesy of GENERAL MOTORS CORP.

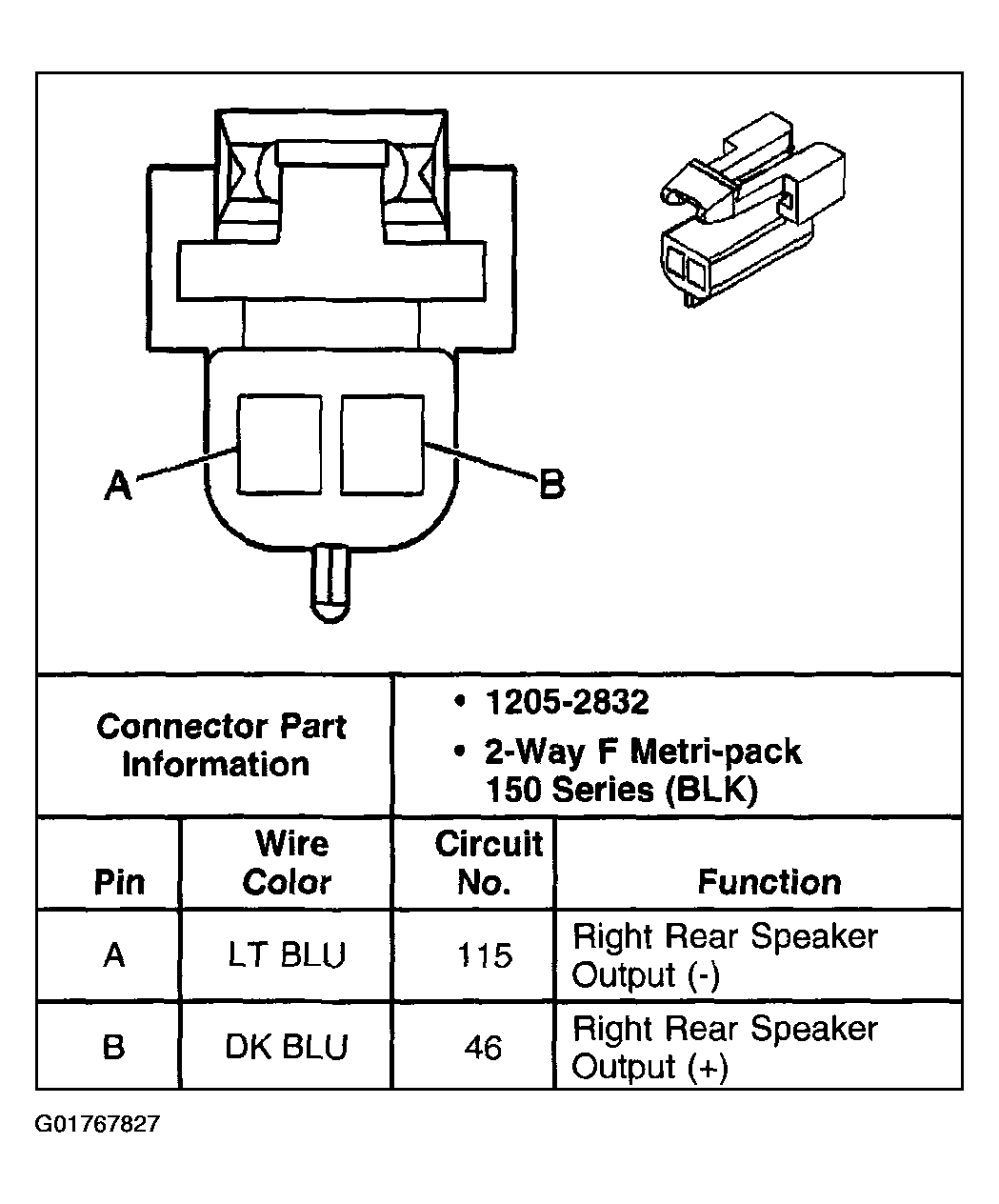

Fig 24: Rear Speaker, RH - Chevrolet and Pontiac Domestic, With UQO, W53

G01767827

Courtesy of GENERAL MOTORS CORP.

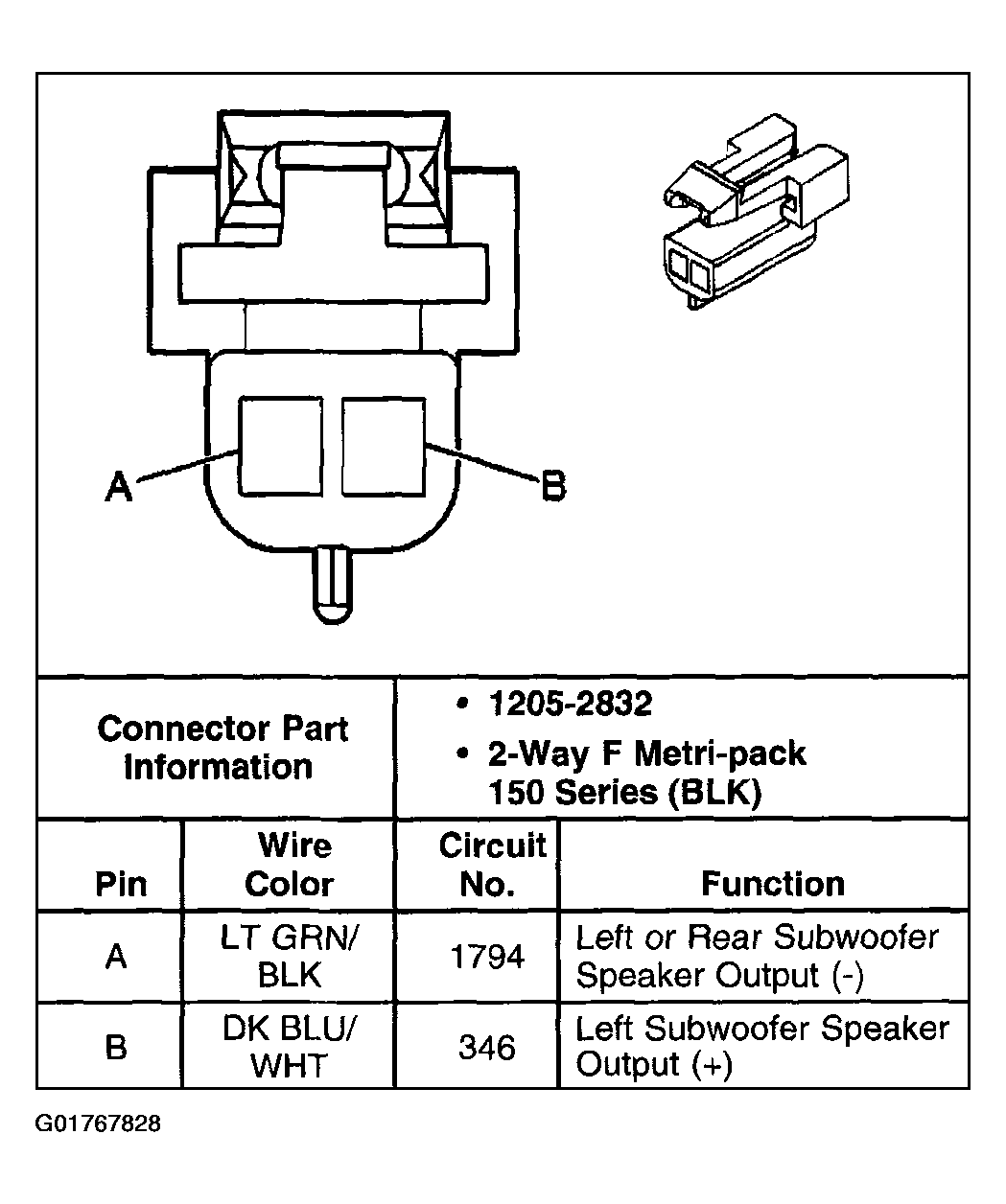

Fig 25: Rear Subwoofer Speaker, LH (With UZ7)

G01767828

Courtesy of GENERAL MOTORS CORP.

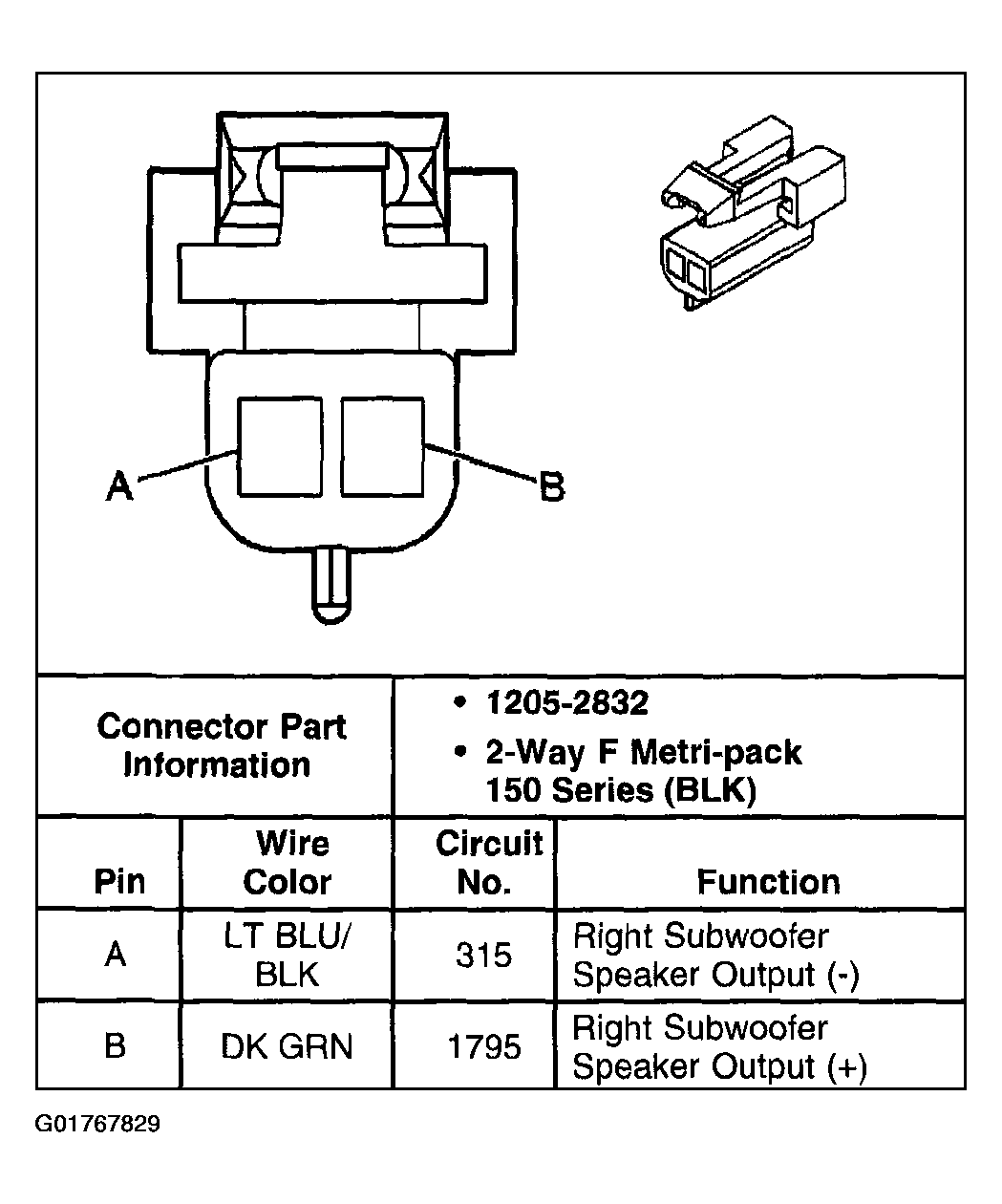

Fig 26: Rear Subwoofer Speaker, RH (With UZ7)

G01767829

Courtesy of GENERAL MOTORS CORP.

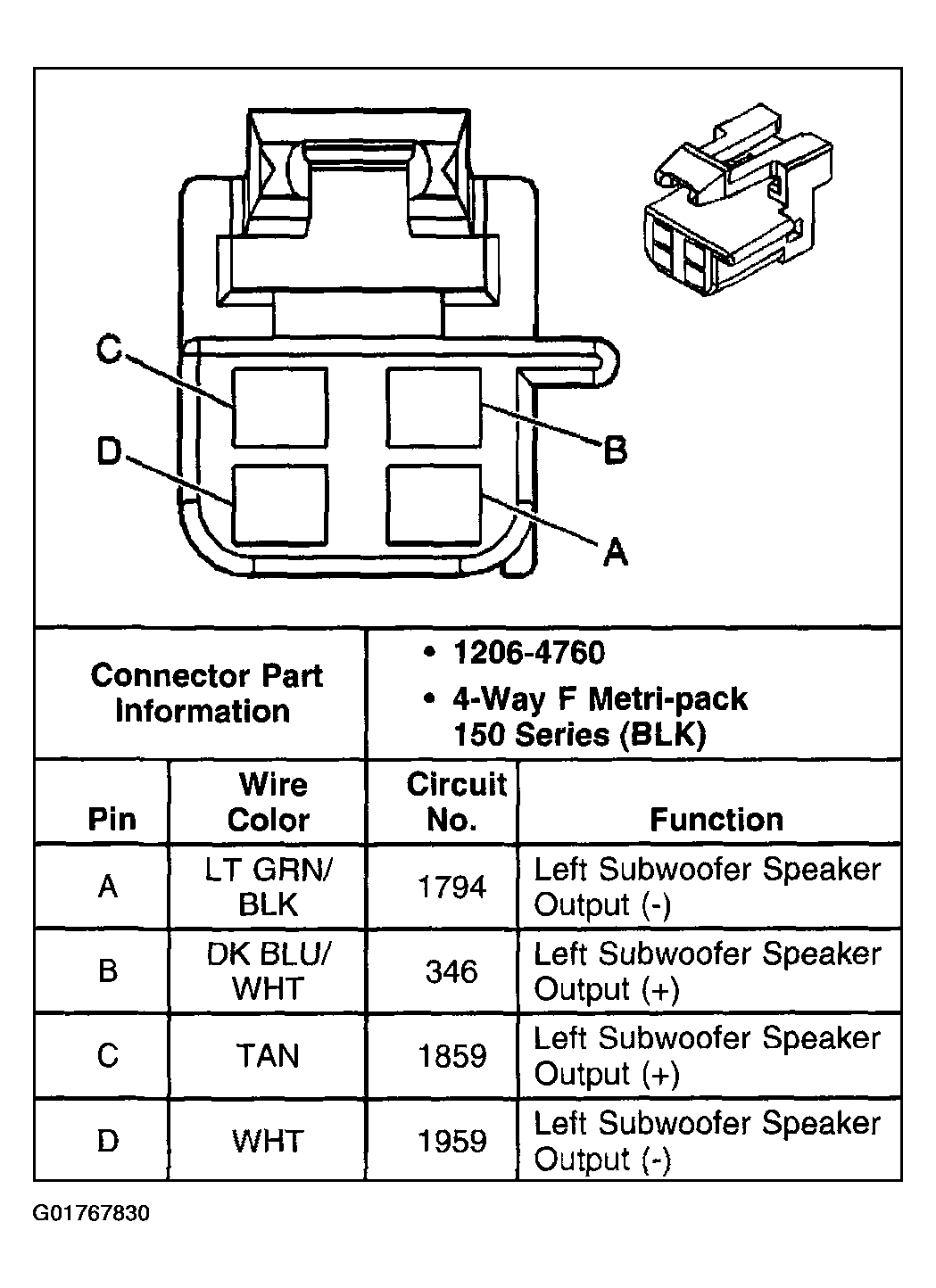

Fig 27: Rear Subwoofer Speaker, LH (With W54/W55)

G01767830

Courtesy of GENERAL MOTORS CORP.

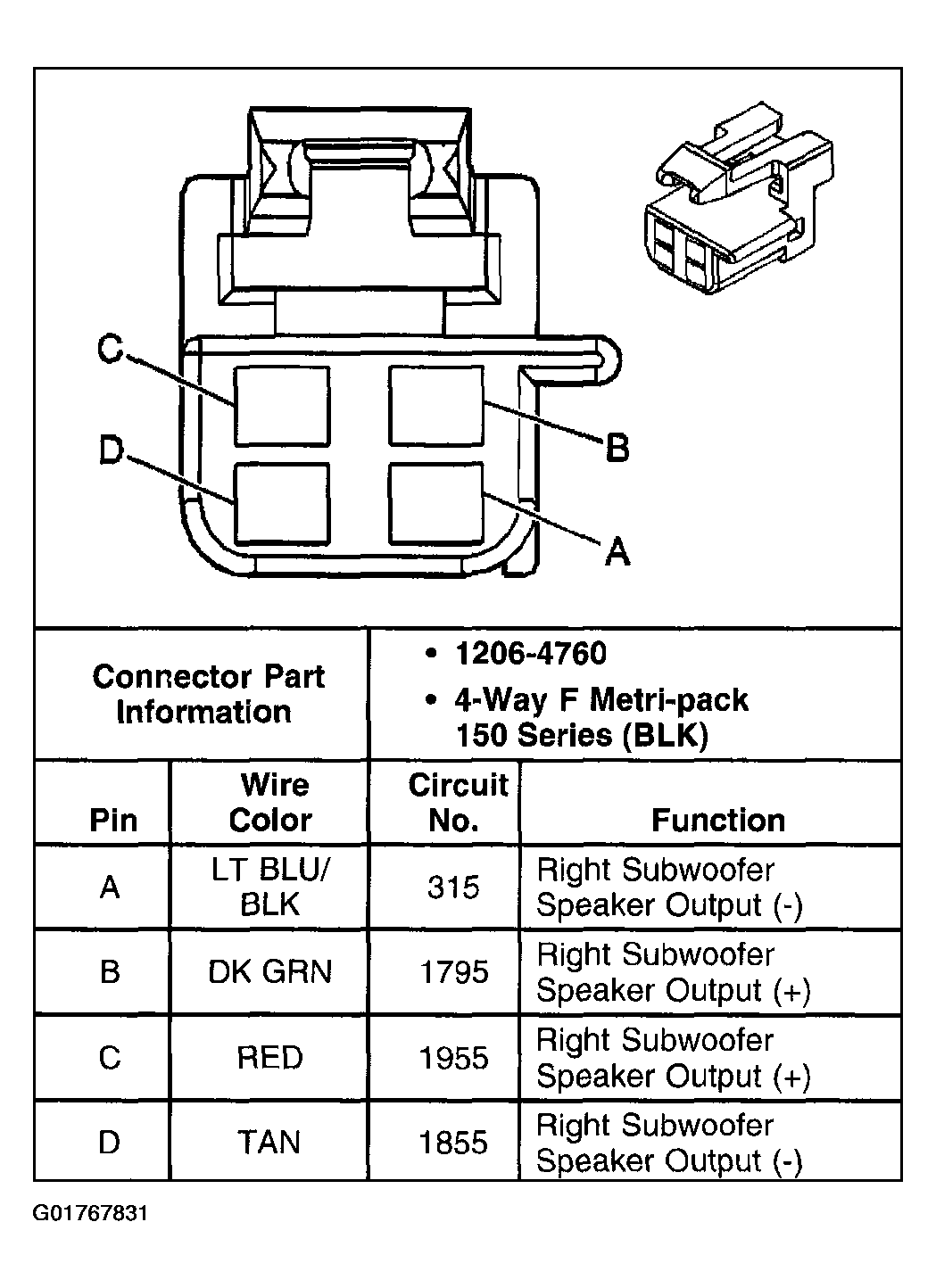

Fig 28: Rear Subwoofer Speaker, RH (With W54/W55)

G01767831

Courtesy of GENERAL MOTORS CORP.

Fig 29: Rear Tweeter Speaker, LH (With W54/W55)

G01767832

Courtesy of GENERAL MOTORS CORP.

Fig 30: Rear Tweeter Speaker, RH (With W54/W55)

G01767833

Courtesy of GENERAL MOTORS CORP.

Fig 31: Remote Compact Disc Player

G01767834

Courtesy of GENERAL MOTORS CORP.
