Steering Column Disassembled View

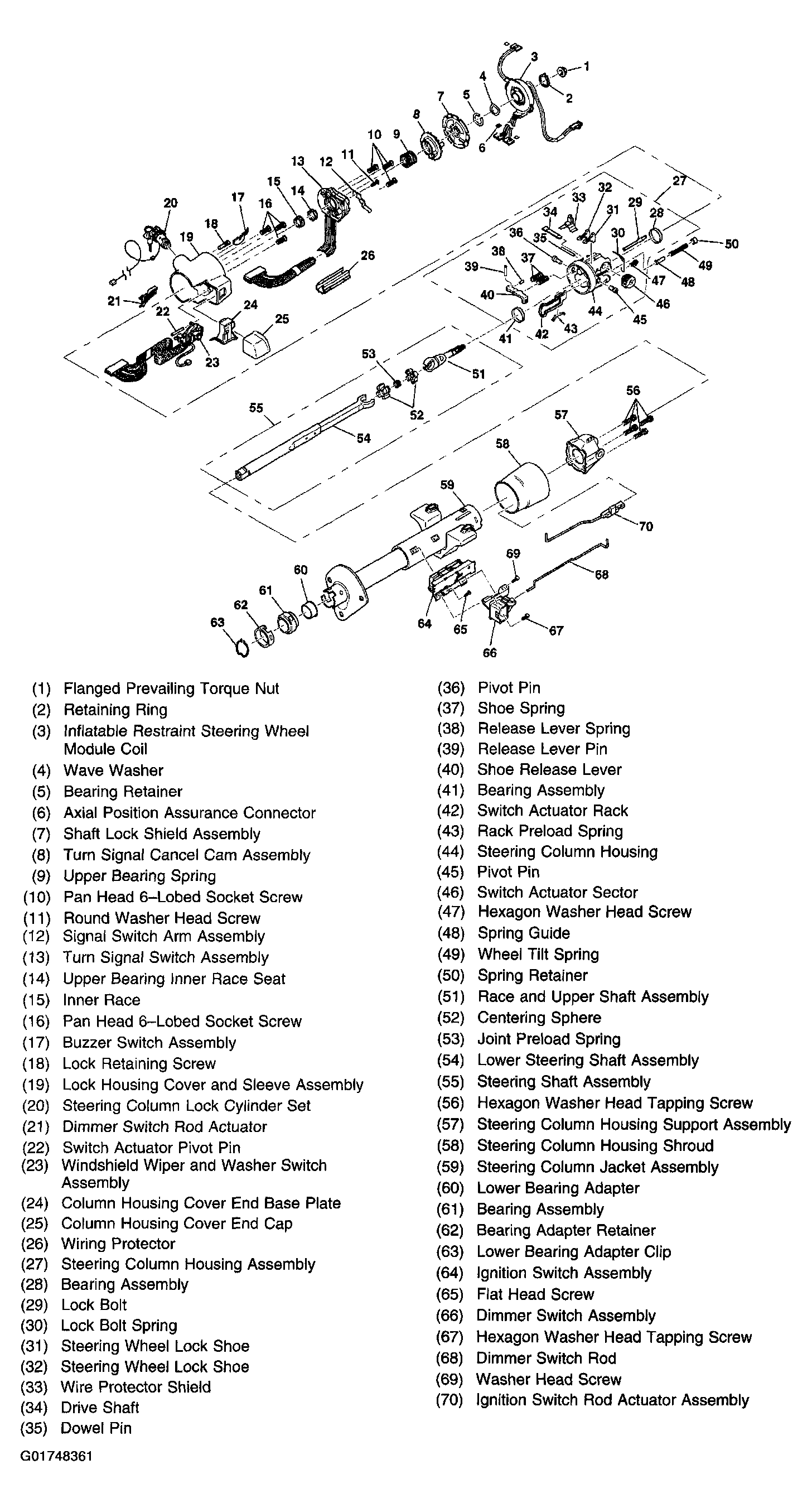

Fig 1: Tilt Steering Column
G01748361Courtesy of GENERAL MOTORS CORP.
