Power Roof Systems Component Views

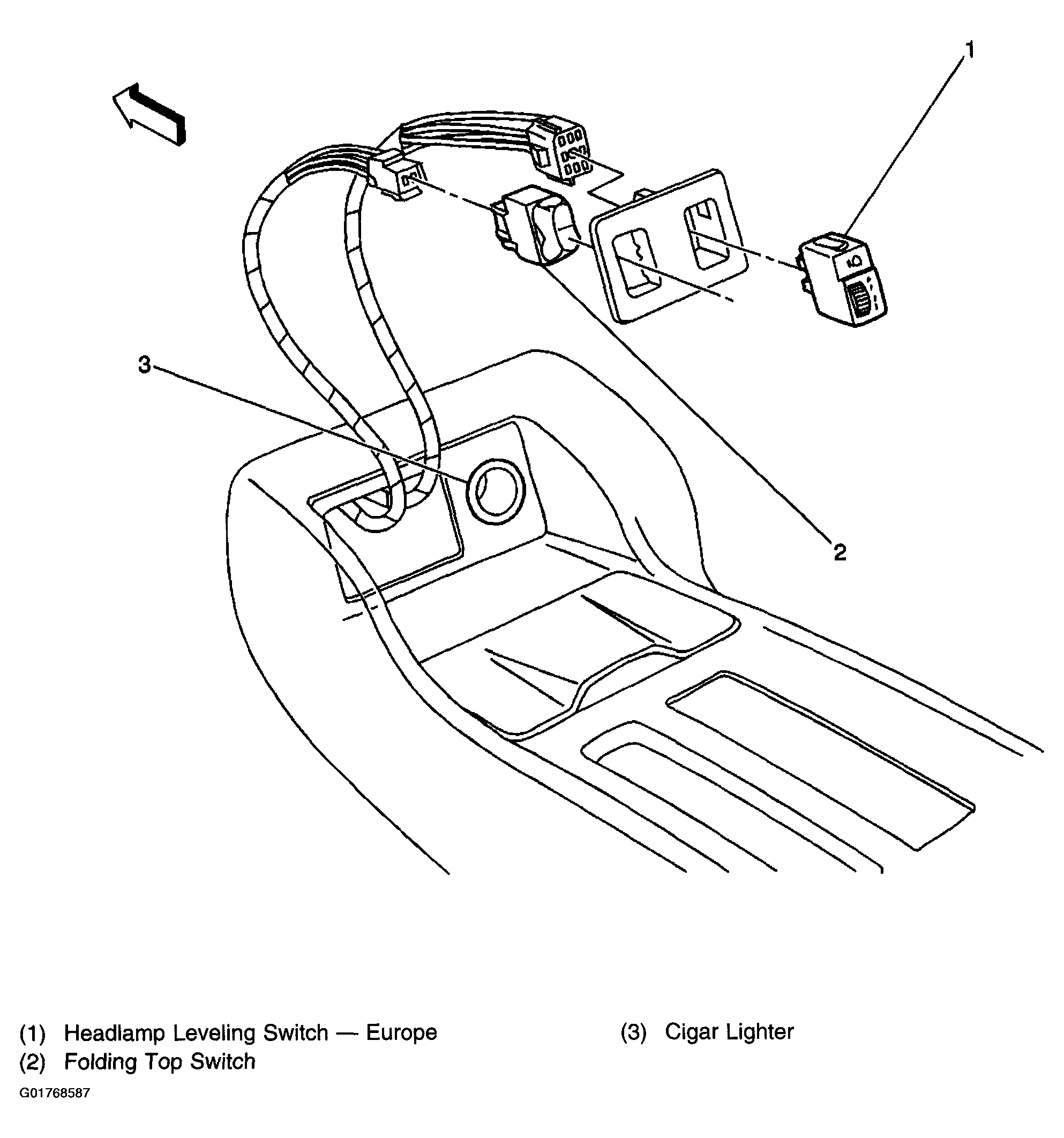

Fig 1: Center Console - Chevrolet

Courtesy of GENERAL MOTORS CORP.

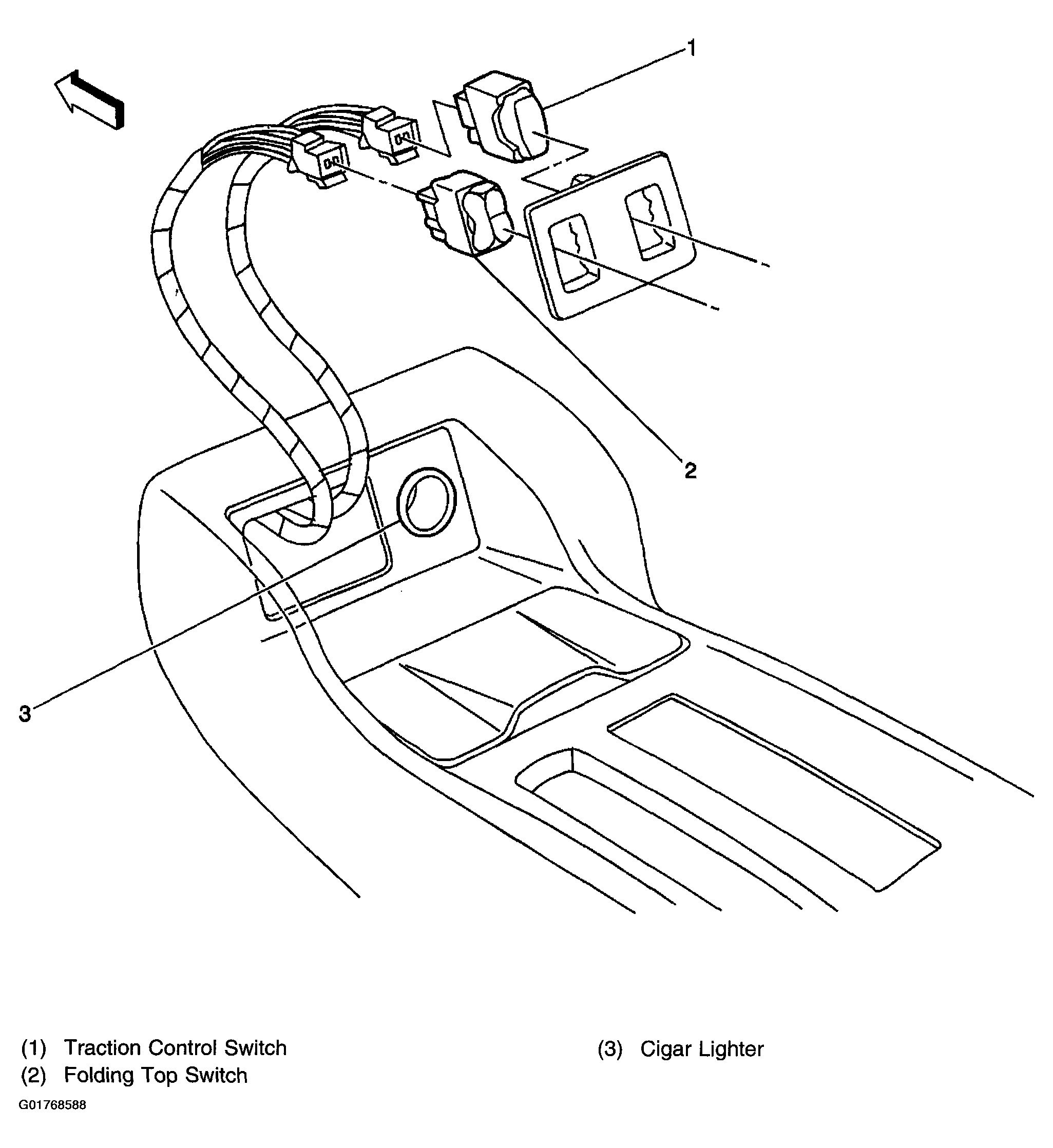

Fig 2: Center Console - Pontiac

Courtesy of GENERAL MOTORS CORP.

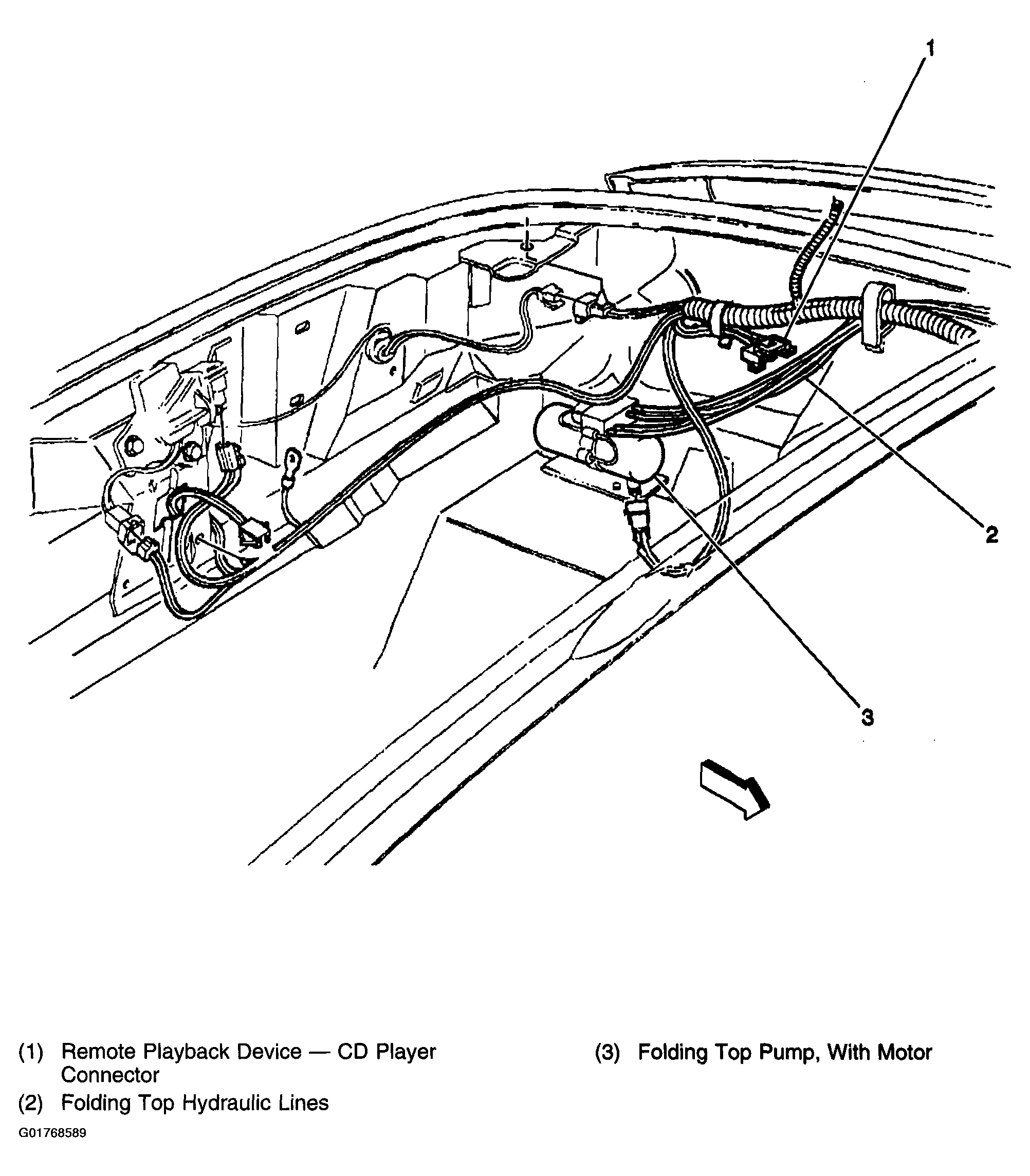

Fig 3: Rear Body

Courtesy of GENERAL MOTORS CORP.
