Power Door Systems Component Views

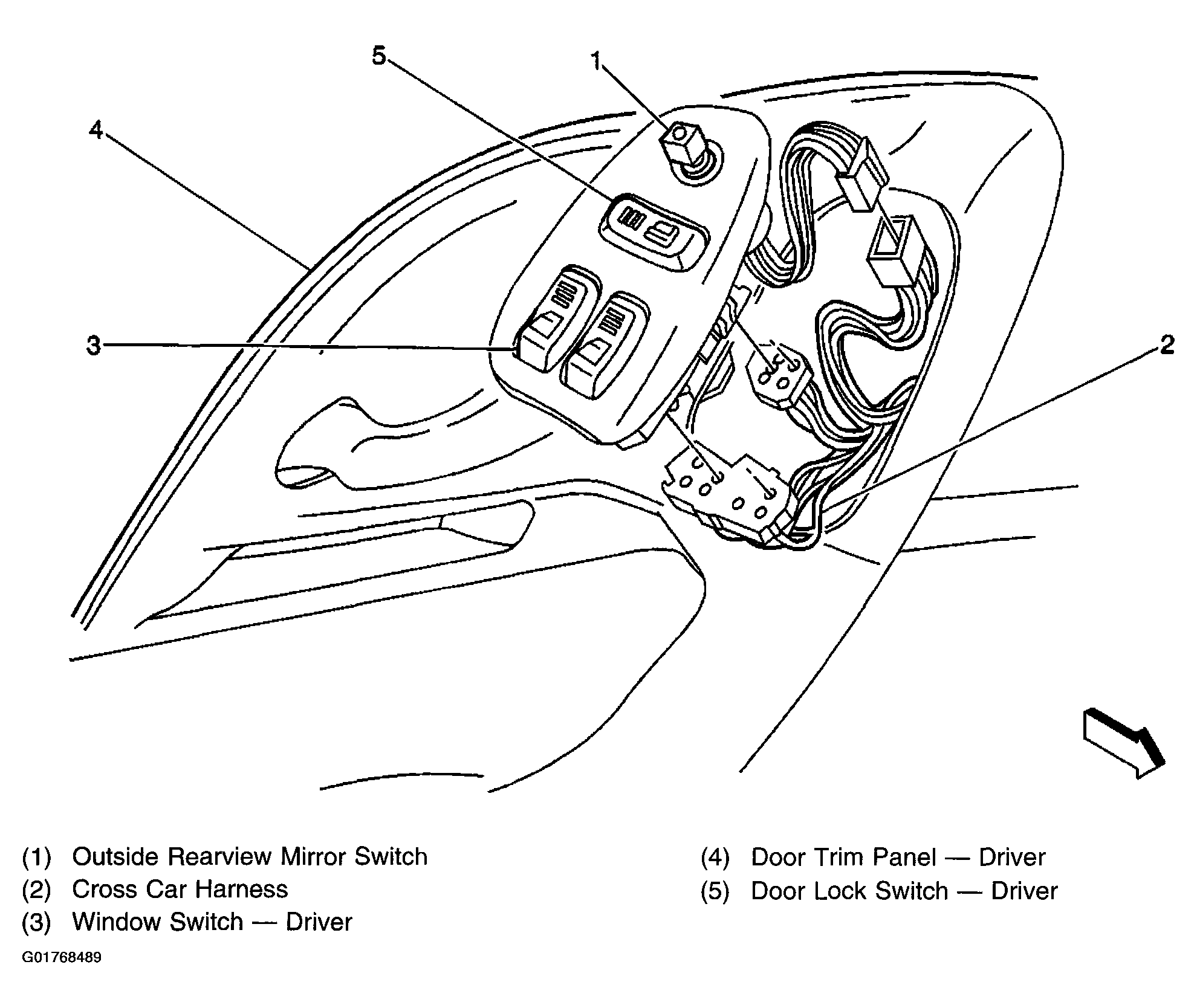

Fig 1: Drivers Door

Courtesy of GENERAL MOTORS CORP.

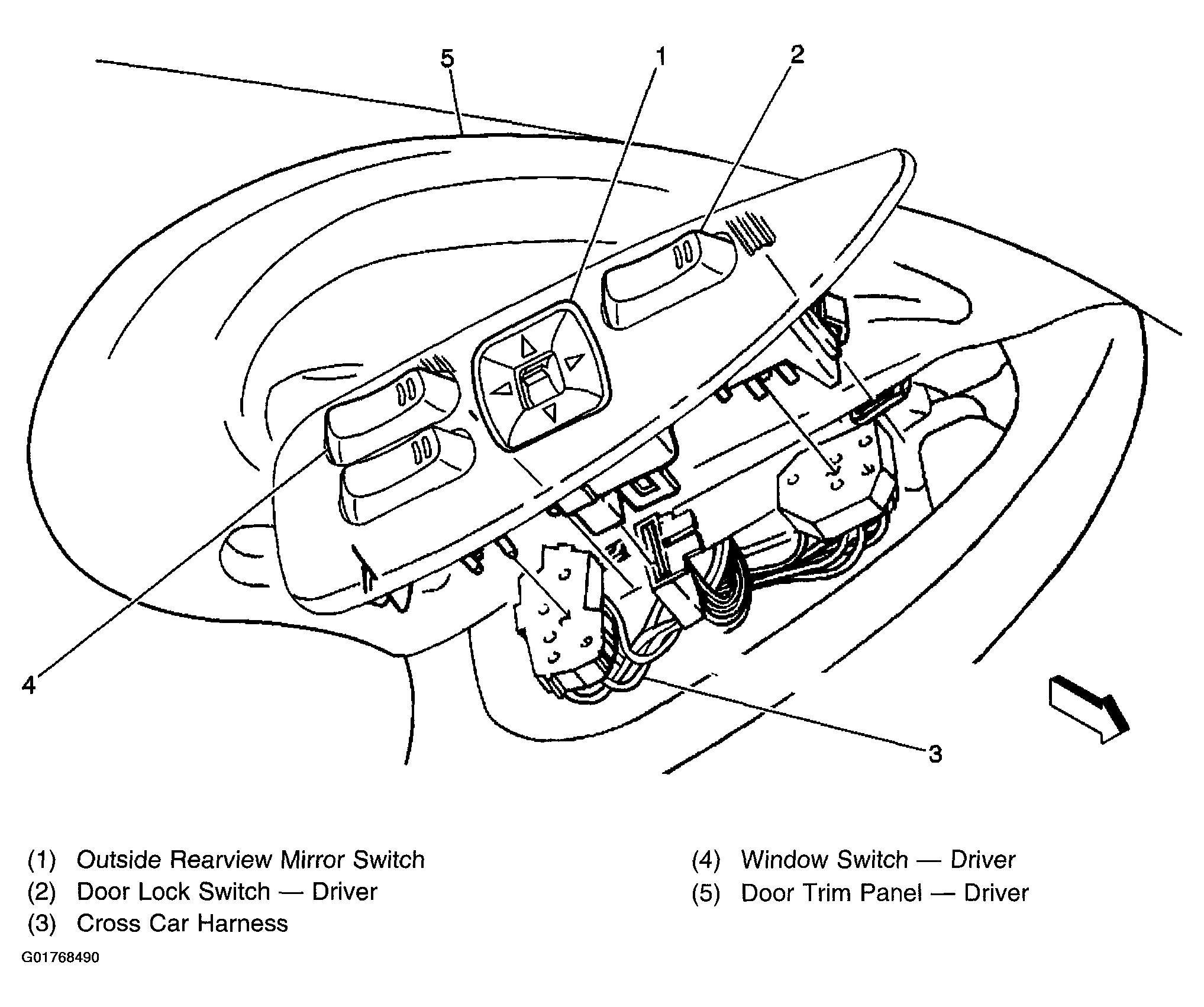

Fig 2: Drivers Door Armrest - Chevrolet

Courtesy of GENERAL MOTORS CORP.

Fig 3: Drivers Door Armrest - Pontiac

Courtesy of GENERAL MOTORS CORP.

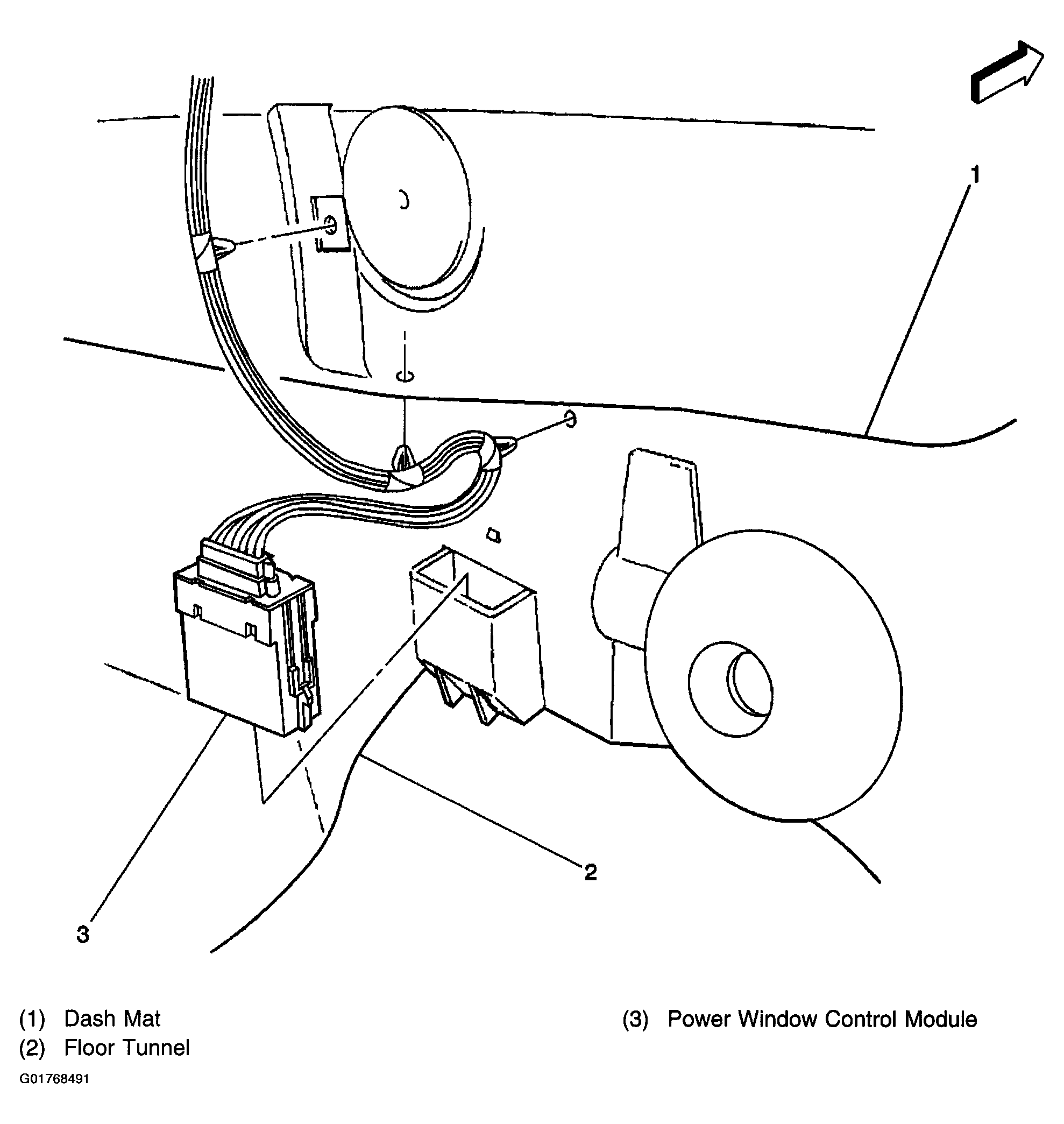

Fig 4: Center of Dash Mat Above Floor Tunnel

Courtesy of GENERAL MOTORS CORP.
