Installation Procedure

  1. Install the wheel speed sensor (4) to the rear axle housing.
  2. Install the wheel speed sensor mounting bolt (3).

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the wheel speed sensor electrical connector.

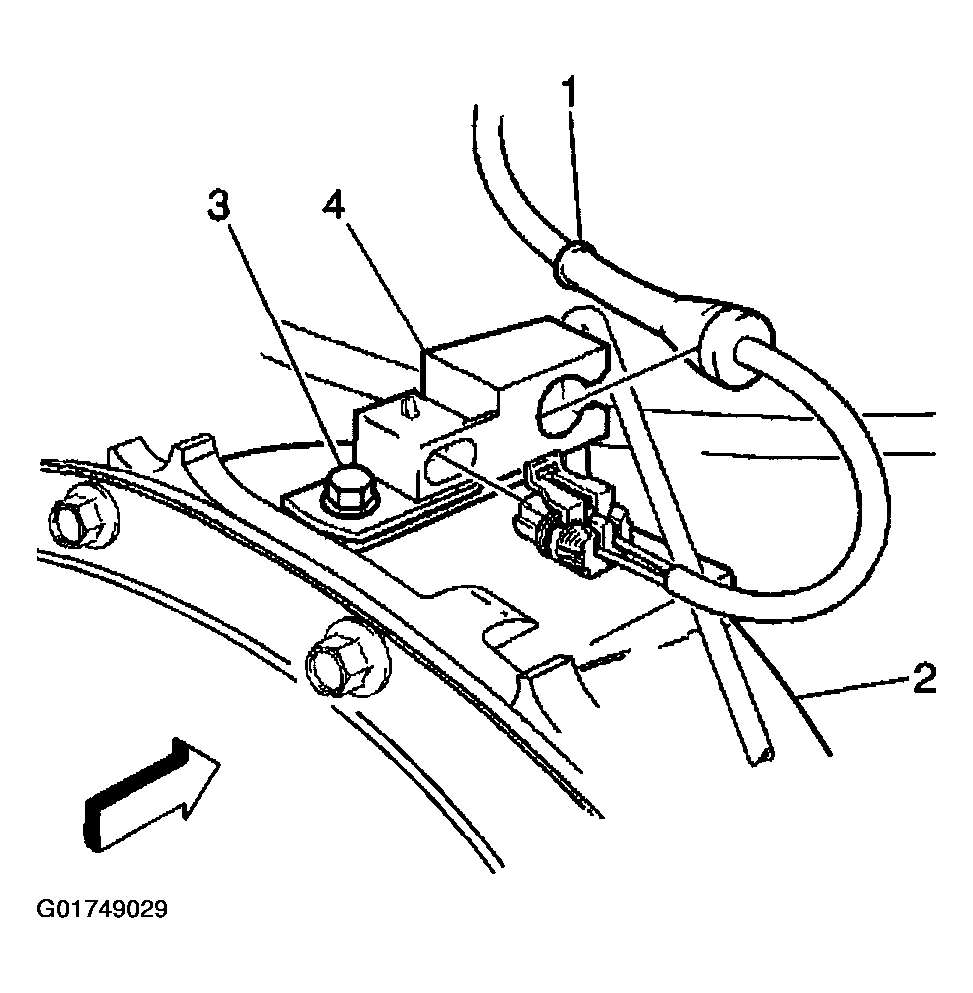

    Fig 1: Connecting Wheel Speed Sensor Electrical Connector
    G01749029Courtesy of GENERAL MOTORS CORP.
  4. Lower vehicle.
