Installation Procedure

Install the wheel speed sensor (1).

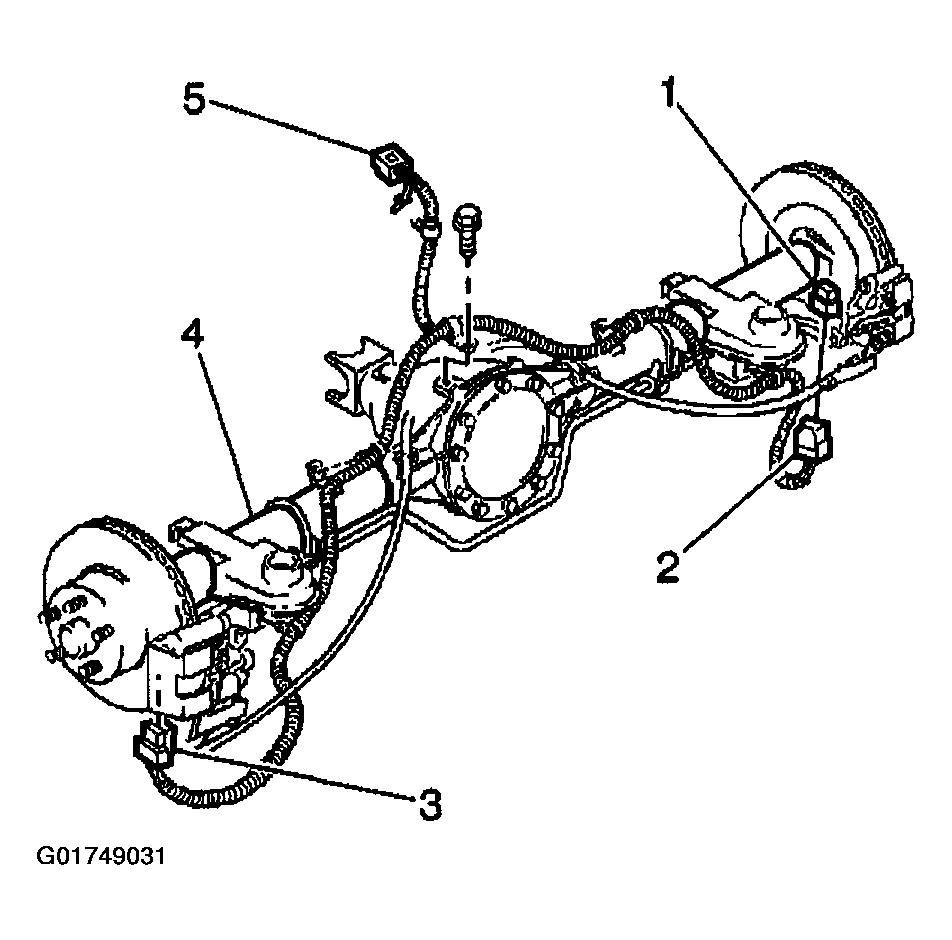

Fig 1: Installing Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Install the wheel speed sensor bolt.
Tighten

Tighten the bolt to 10 N.m (89 lb in).
Connect the wheel speed sensor electrical connector (2).
Lower the vehicle.
