Instrument Panel Fuse Block

NOTE: For location of instrument panel fuse block, see Fig 1.

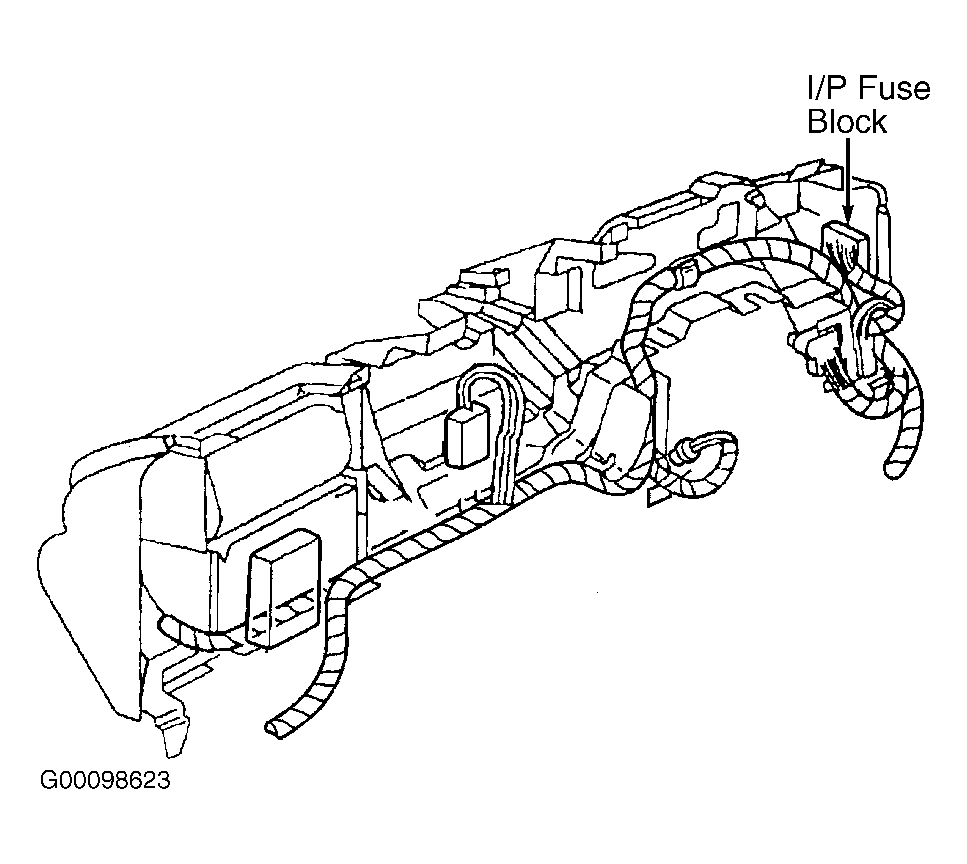

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Instrument Panel Fuse Block Fuses

Courtesy of GENERAL MOTORS CORP.

INSTRUMENT PANEL FUSE BLOCK LEGEND

Fuse	Rating	Description
1 - STOP/HAZARD	20A	Hazard flasher module Stop lamp switch
2 - TURN B/U	20A	Backup lamp switch Daytime running lamps (DRL) control module Park/Neutral position (PNP) switch Turn signal flasher module
3 - STG WHL CNTRL	1A	Steering wheel controls
4 - RADIO ACCY	25A	Audio amplifier Radio power antenna Remote playback device - CD player
5 - TAIL LPS	20A	Daytime running lamps (DRL) control module Headlamp switch
6 - HVAC	20A	HVAC control assembly
7 - PWR ACCY	15A	Instrument panel cluster (IPC) Outside rearview mirror switch Radio Rear compartment lid release relay Theft deterrent relay Shock sensor
8 - COURTESY	20A	Body control module (BCM)
9 - GAUGES	10A	Body control module (BCM) Daytime running lamps (DRL) control module Second gear start switch(V6 VIN K) (Chevrolet w/o NW9) Traction control switch Instrument panel cluster (IPC) Stop lamp switch
10 - AIR BAG	15A	Inflatable restraint sensing and diagnostic module (SDM)
11 - CIGAR/ACCY	25A	Accessory power outlet Cigar lighter Data link connector (DLC)
12 - DEFOG/SEATS	30A	Seat assembly - driver HVAC control assembly Seat assembly - passenger
13 - STG WHL CNTRL	1A	Steering wheel controls
14 - WIPER/WASH	25A	Windshield wiper motor Windshield wiper/washer switch
15 - WINDOWS	30A	Folding top relay (with ETA) Folding top switch Window control module Fog lamp relay - rear (Export) Window switch - driver Window switch - front passenger
16-IP DIMMER	5A	Ashtray lamp Courtesy lamp - left door Courtesy lamp - Right door Fog lamp switch Folding top switch Headlamp switch HVAC control assembly Instrument panel cluster (IPC) PRNDL lamp Radio Fog lamp switch - rear (Export) Second gear start switch Traction control switch
17-RADIO	15A	Body control module (BCM) Radio
