Connector Identification

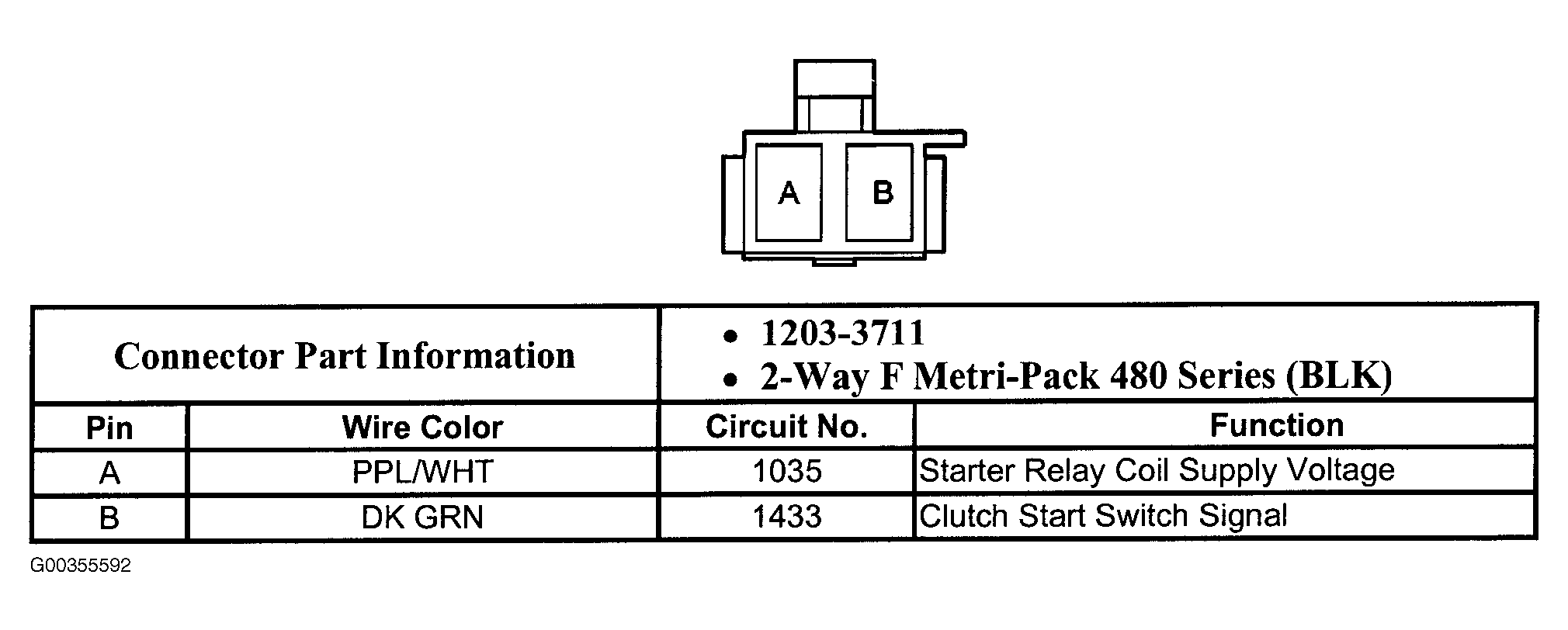

Fig 1: Identifying Clutch Pedal Start Switch Connector Terminals
G00355592Courtesy of GENERAL MOTORS CORP.
