Removal Procedure

  1. Remove the catalytic converter. Refer to Catalytic Converter Replacement (3.8L Engine) , Catalytic Converter Replacement - Left (5.7L Engine)  and Catalytic Converter Replacement - Right (5.7L Engine) .
  2. Remove the catalytic converter heat shield bolts.
  3. Remove the catalytic converter heat shield.

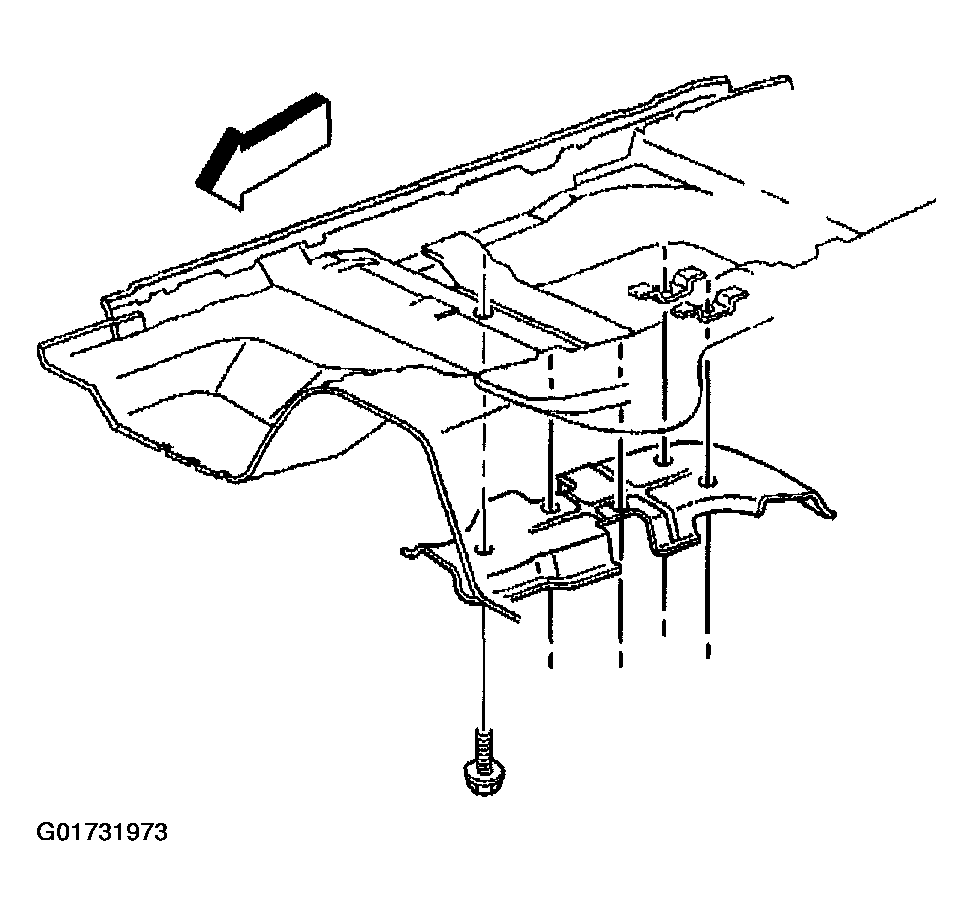

    Fig 1: Removing Catalytic Converter Heat Shield
    G01731973Courtesy of GENERAL MOTORS CORP.
