Installation Procedure

  1. Install the exhaust muffler heat shield.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the exhaust muffler heat shield bracket and bolts.

    Tighten

    Tighten the muffler heat shield bolts to 2 N.m (18 Inch lbs).

    Fig 1: Installing Exhaust Muffler Heat Shield Bracket And Bolts
    G01731984Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust muffler heat shield bolt.

    Tighten

    Tighten the exhaust muffler heat shield bolt to 2 N.m (18 Inch lbs).

    Fig 2: Installing Exhaust Muffler Heat Shield Bolt
    G01731985Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust muffler heat shield bolts.

    Tighten

    Tighten the exhaust muffler heat shield bolts to 2 N.m (18 Inch lbs).

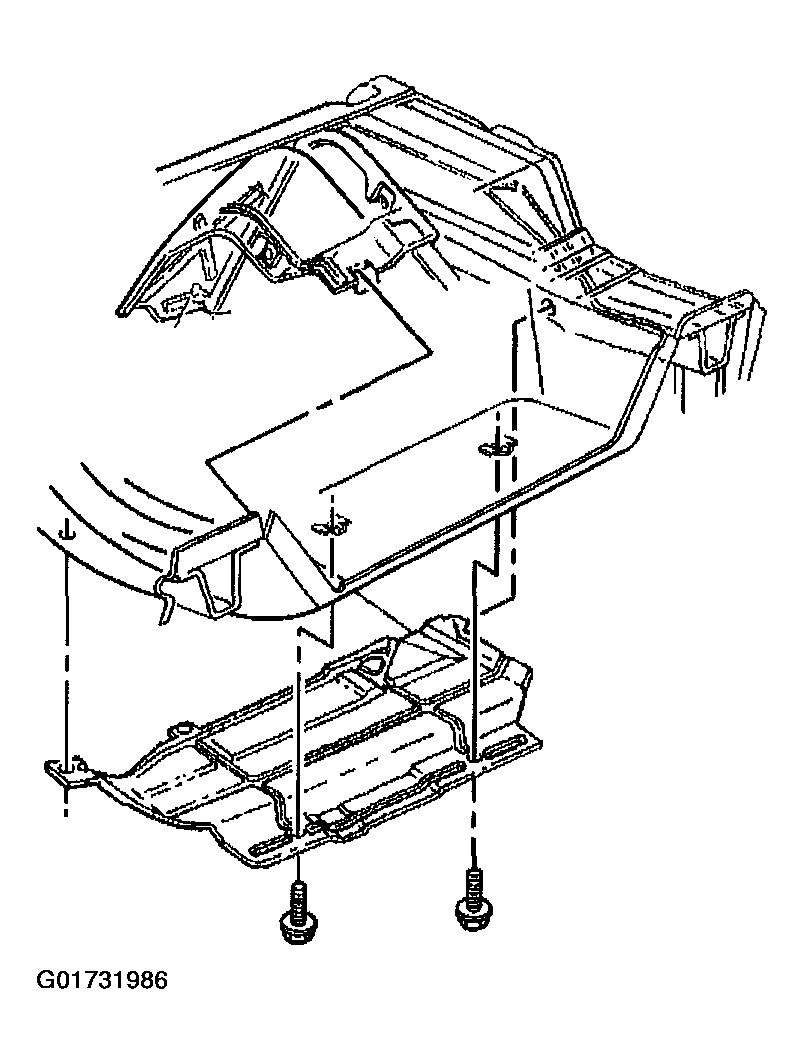

    Fig 3: Tightening Exhaust Muffler Heat Shield Bolts
    G01731986Courtesy of GENERAL MOTORS CORP.
  5. Install the exhaust muffler. Refer to Muffler Replacement .
