Diode Module Connector End View - Europe
Diode Module Connector End View - Europe

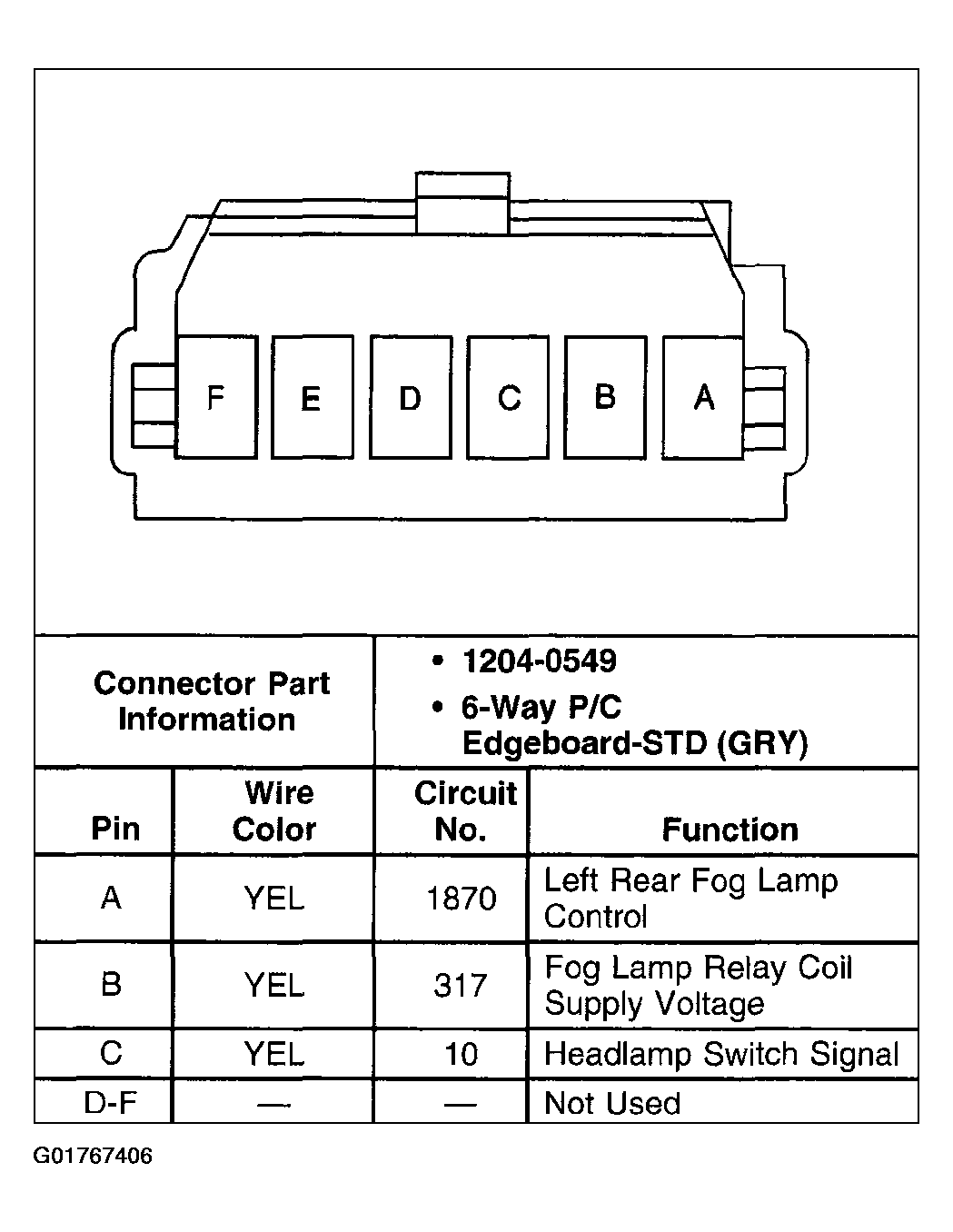

Fig 1: Diode Module Connector End View - Europe
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
