Remote Compact Disc Player Connector End View
Remote Compact Disc Player Connector End View

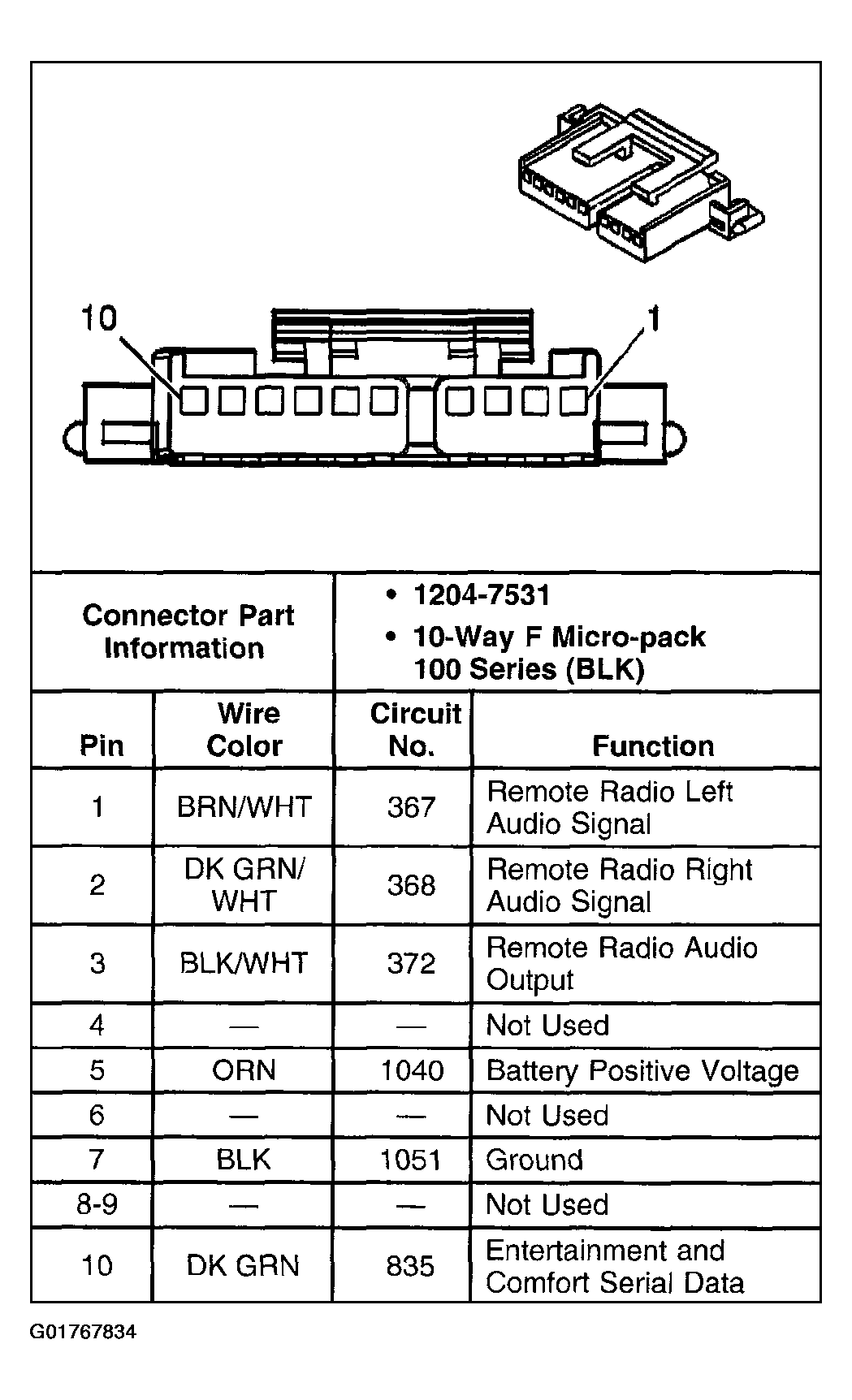

Fig 1: Remote Compact Disc Player Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
