Turn Signal Flasher Module Connector End View
Turn Signal Flasher Module Connector End View

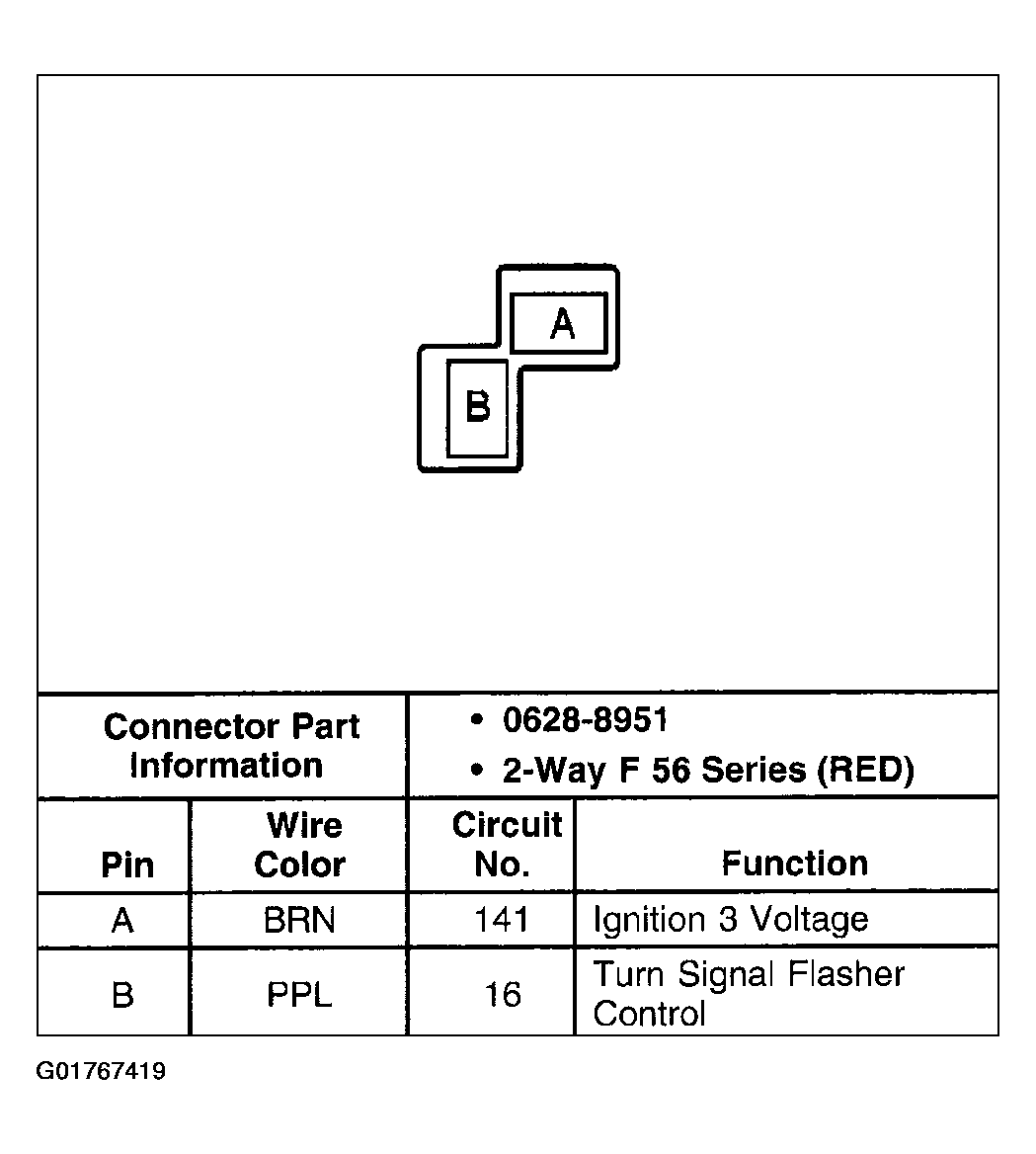

Fig 1: Turn Signal Flasher Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
