Steering Wheel and Column Connector End Views

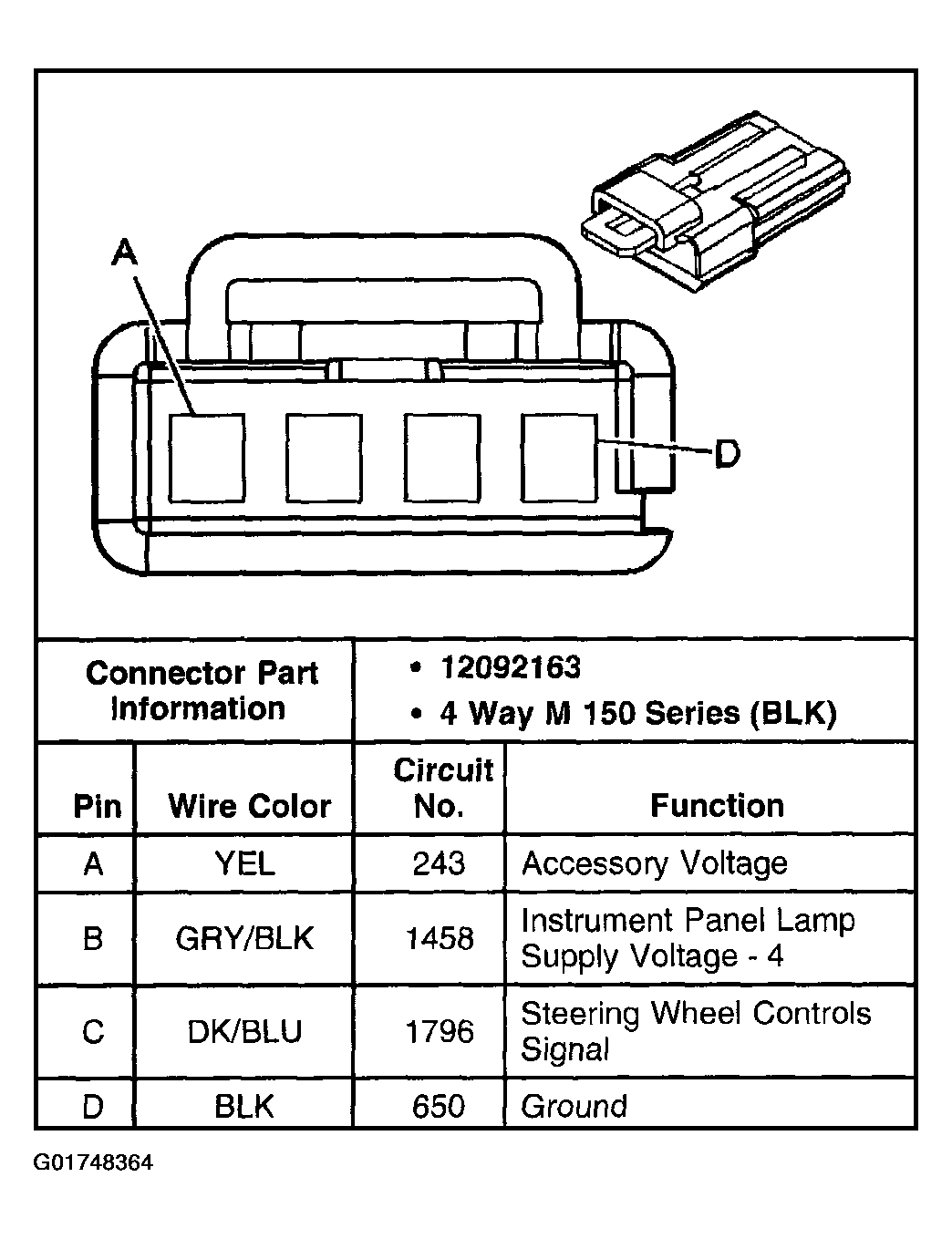

Fig 1: Inflatable Restraint Steering Wheel Module Coil (C217)
G01748364Courtesy of GENERAL MOTORS CORP.
