Installation Procedure

  1. Install the automatic park lock cable, if equipped.
  2. Complete the following steps in order to ensure that the ignition switch (2) is in the LOCK (1) position:
    1. 2.1. Move the switch slider to the extreme right position.
    2. 2.2. Move the slider one detent to the left.
    Fig 1: Ensuring Ignition Switch Is In Lock Position
    G01748382Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the following components are in the LOCK position:
    1. The steering column lock
    2. The ignition cylinder
  4. Install the ignition switch (7) to the jacket (1).

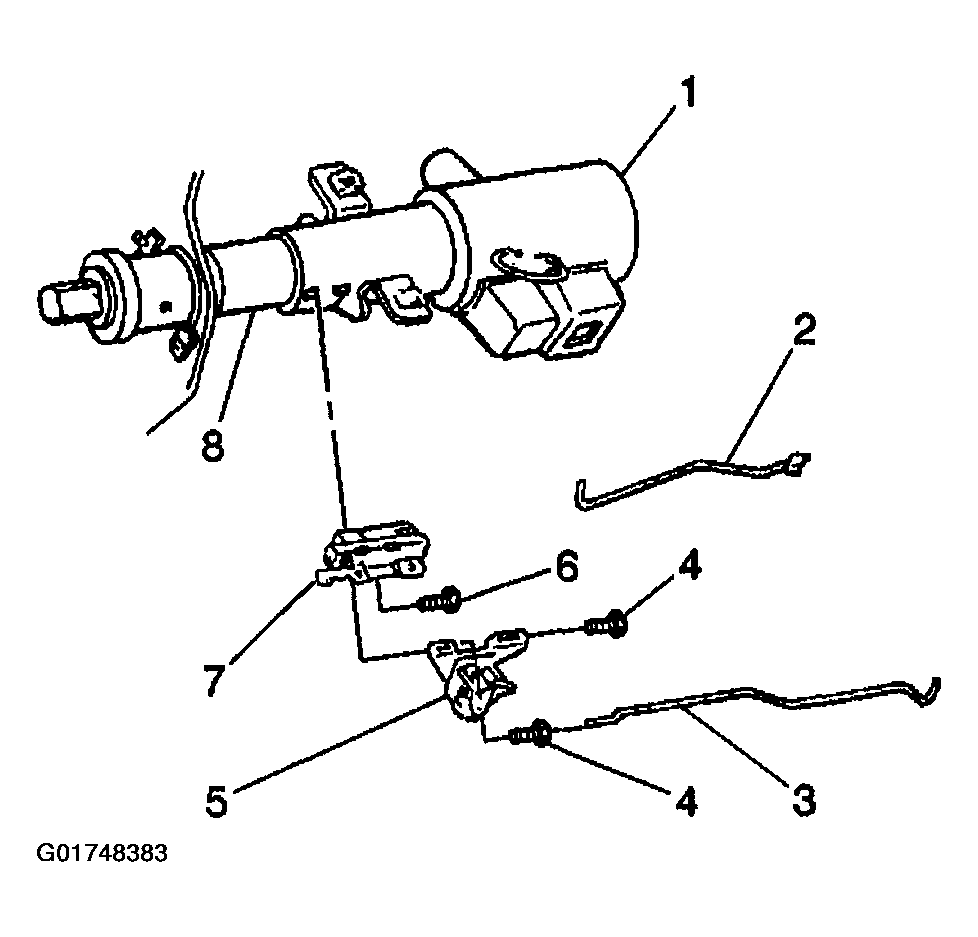

    Fig 2: Installing Ignition Switch
    G01748383Courtesy of GENERAL MOTORS CORP.
  5. Install the ignition switch actuator rod (3) to the ignition switch.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  6. Install the bolt/screw (6).

    Tighten

    Tighten the bolt/screw (6) to 2.5 N.m (22 in lbs).

  7. Position the dimmer switch (5) to the ignition switch (7).
  8. Install the bolts/screws.
  9. Complete the following procedures in order to adjust the dimmer switch:
    1. 9.1. Press the switch mechanism slightly in order to insert the 3/32-inch drill bit.
    2. 9.2. Move the dimmer switch in order to remove the lash.

    Tighten

    Tighten the bolts/screws to 4 N.m (35 in lbs).

  10. Install the electrical connectors to the dimmer switch (5) and the ignition switch (7).
  11. Install and adjust the parking brake switches.
  12. Raise the column.
  13. Install the steering column upper support nuts to the steering column support. Refer to Steering Column Replacement .
  14. Install the steering column dash cover bolts.
  15. Install the instrument panel driver knee bolster and deflector.
  16. Enable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
