Installation Procedure

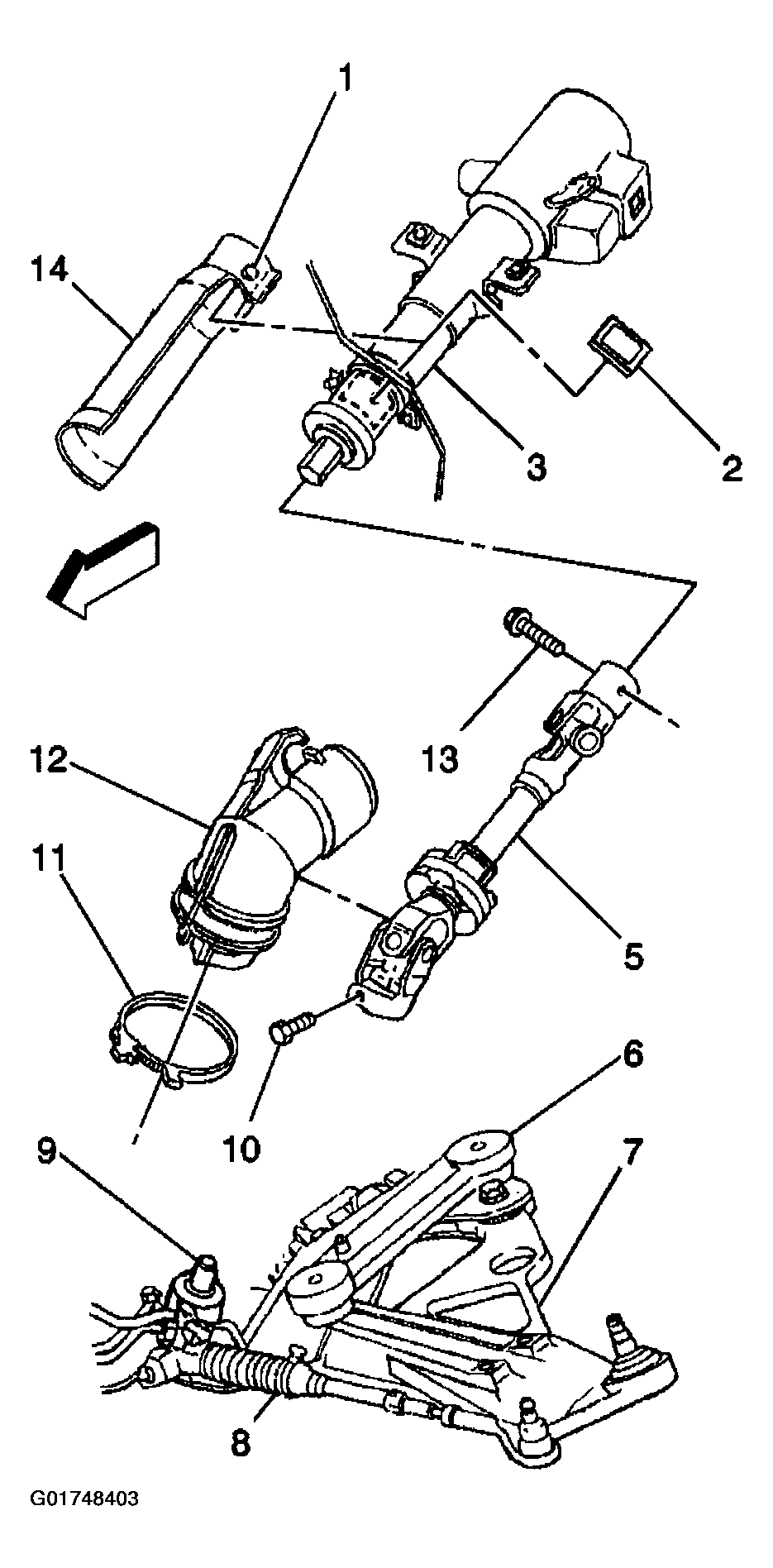

- Position the shaft (5) to the column (3).NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the column bolt (13).
Tighten
Tighten the column bolt (13) to 47 N.m (35 ft lbs).
- Position the shaft (5) to the gear (8).
- Install the steering gear bolt (10).
Tighten
Tighten the steering gear bolt (10) to 47 N.m (35 ft lbs).
- Install the boot (12) to the shaft (5).
- Use a clamp (11) in order to secure the boot to the shaft.
- Position the shield (14) to the shaft (5) and column (3) on 5.7L VIN G only.
- On 5.7L VIN G only, insert the button into the hole in the column (3) in order to install the shield (14).
