Backup Lamp Switch Connector End View
Backup Lamp Switch Connector End View

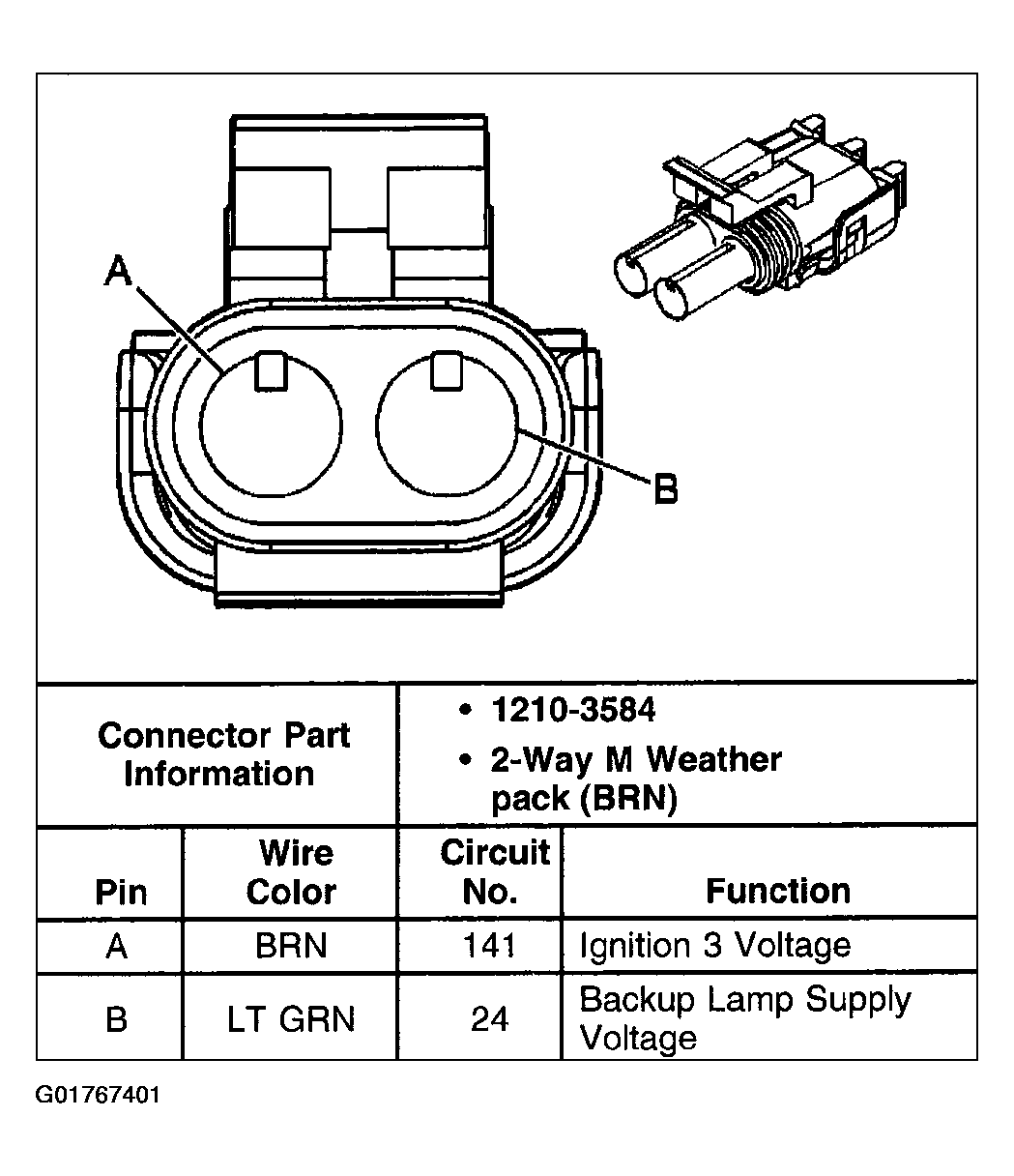

Fig 1: Backup Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
