Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Install the DRL control module (1) to the mounting brackets (3).

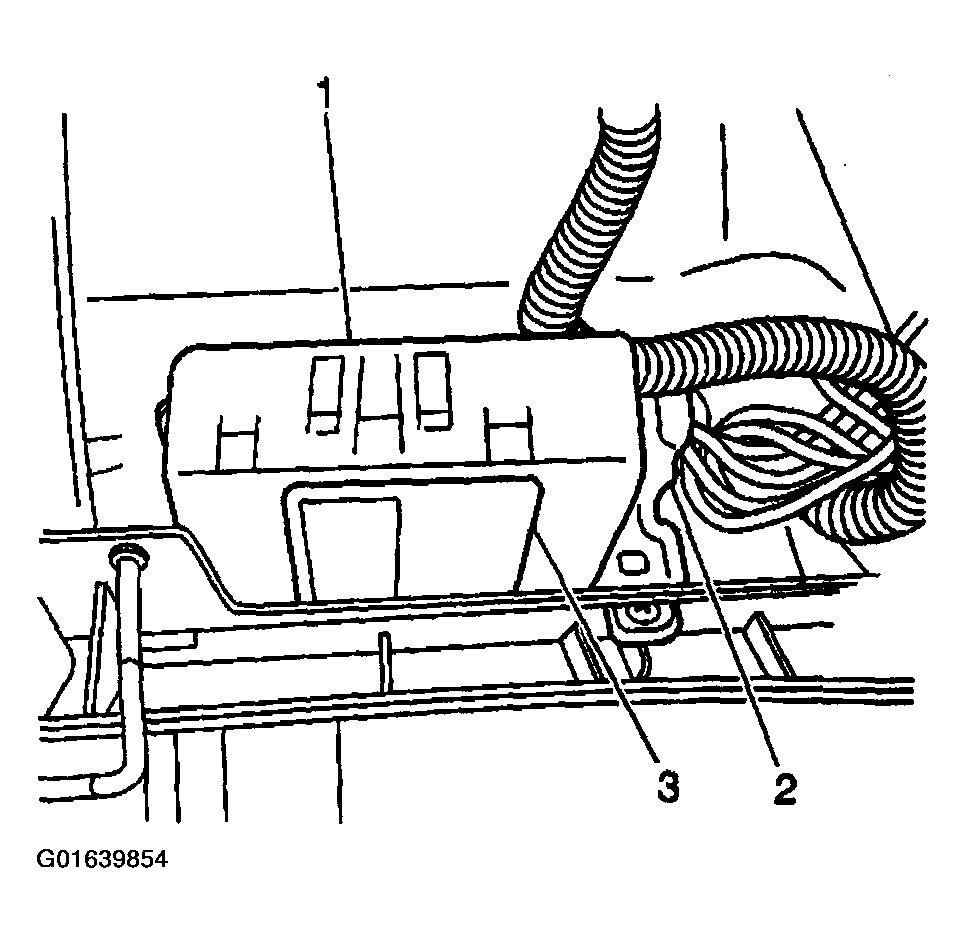

Fig 1: Installing DRL Control Module To Mounting Brackets
Courtesy of GENERAL MOTORS CORP.
Install the DRL control module (1) with the mounting brackets attached to the instrument panel. Secure each bracket with 1 screw.
Connect the DRL control module electrical connector (2).
Install the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
