Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

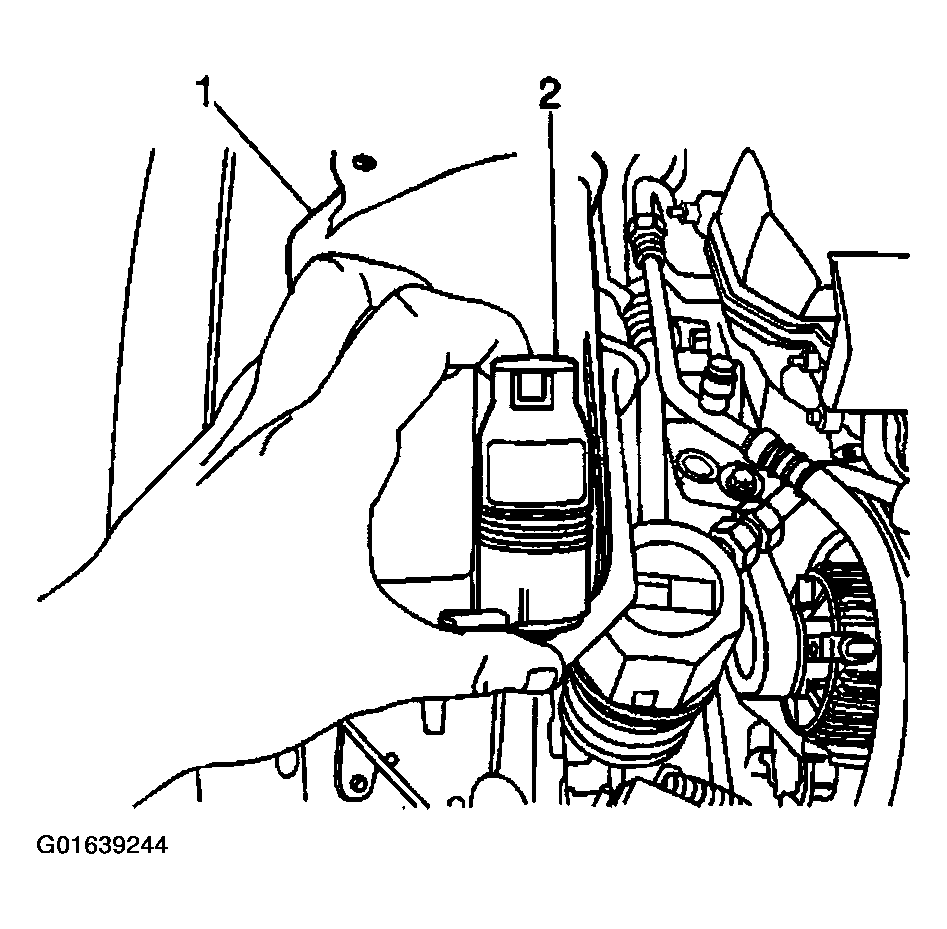

Install the windshield washer pump (2) to the windshield washer solvent container (1).

Fig 1: Installing Windshield Washer Pump To Windshield Washer Solvent Container
Courtesy of GENERAL MOTORS CORP.

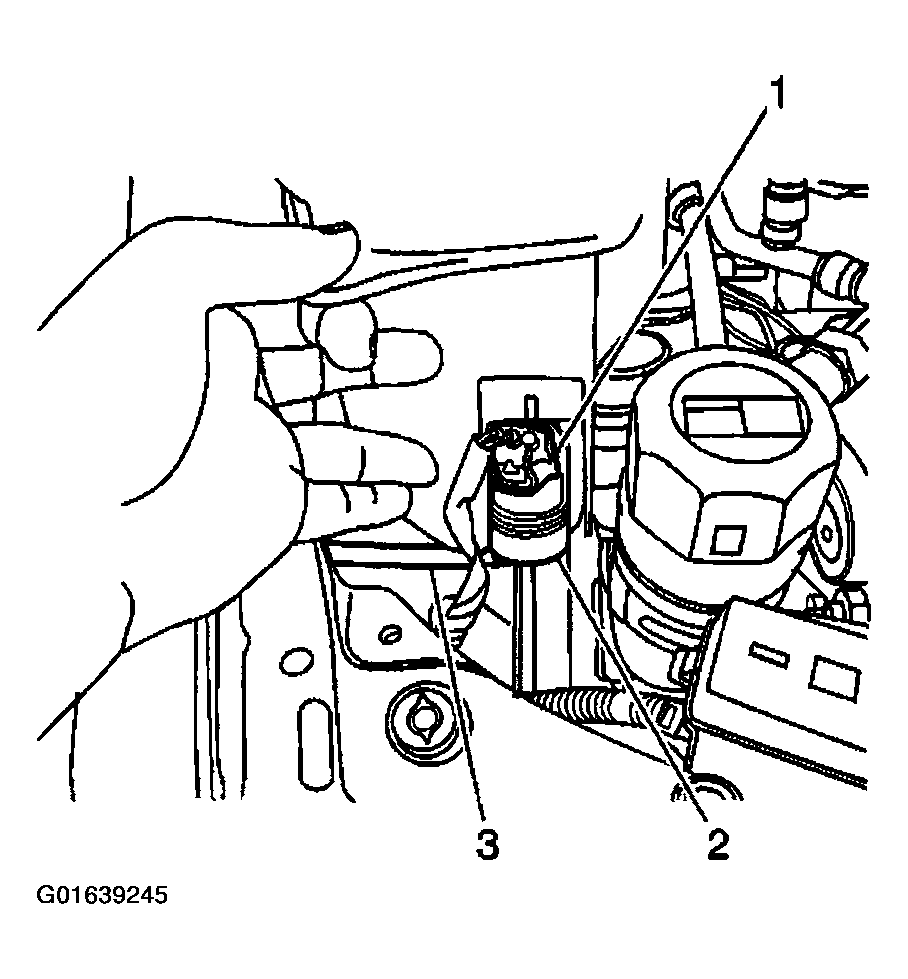

Connect the washer hose (3) to the washer pump (2).
Connect the washer pump electrical connector (1).

Fig 2: Connecting Washer Hose To Washer Pump
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

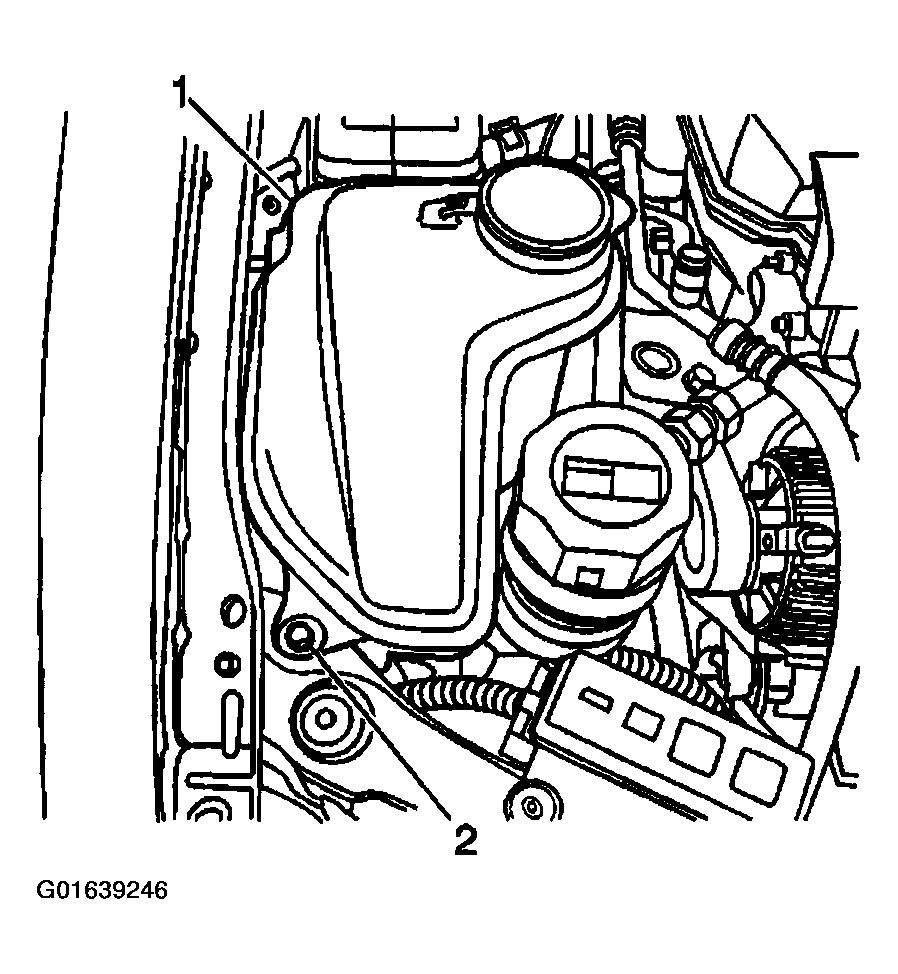

Install the windshield washer solvent container (1) to the vehicle. Secure the container with 1 bolt (2).
Tighten

Tighten the washer solvent container bolt to 5.5 N.m (49 lb in).
Fill the washer solvent container (1) with washer solvent.

Fig 3: Installing Windshield Washer Solvent Container
Courtesy of GENERAL MOTORS CORP.
