Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the windshield wiper arm (1) to the windshield wiper transmission. Secure the arm with the nut (2).

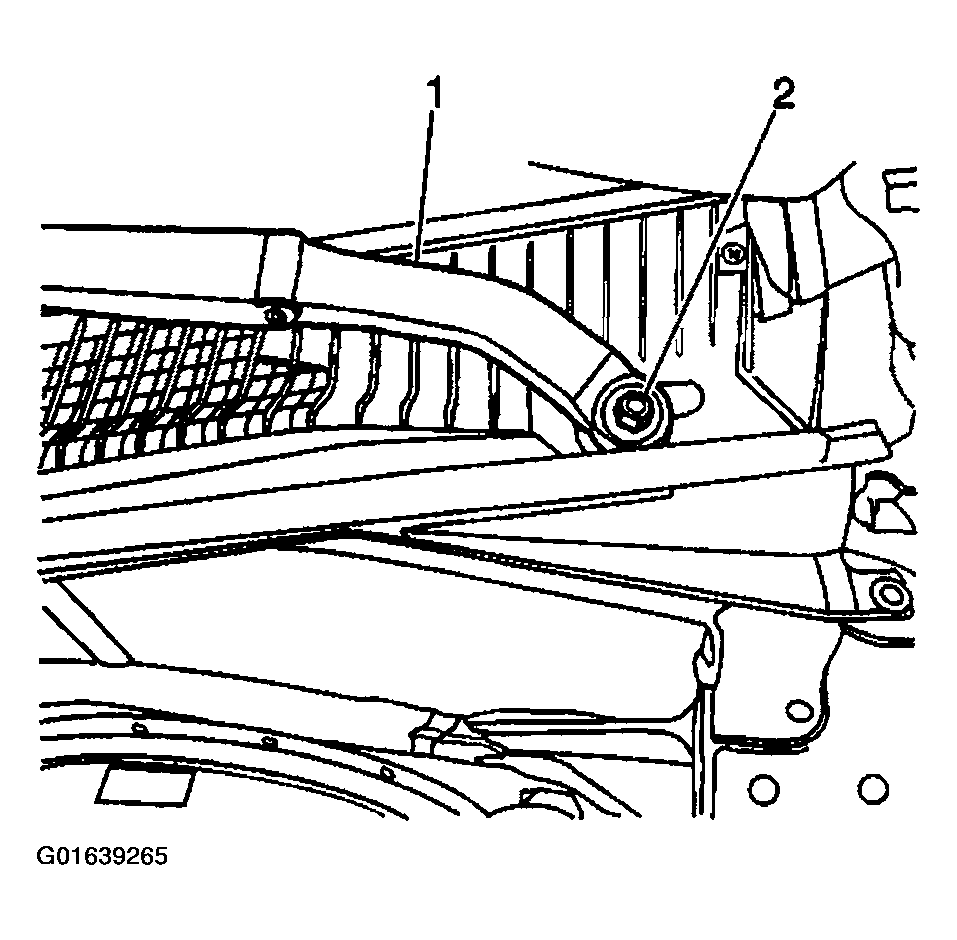

Fig 1: Installing Windshield Wiper Arm To Windshield Wiper Transmission
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the windshield wiper arm nut to 20 N.m (14 lb ft).
Install the plastic nut cover to the wiper arm.
