Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

Remove the IP accessory center trim plate. Refer to TRIM PANEL REPLACEMENT -- IP CENTER .
Remove the 4 screws (2) which secure the radio (1).

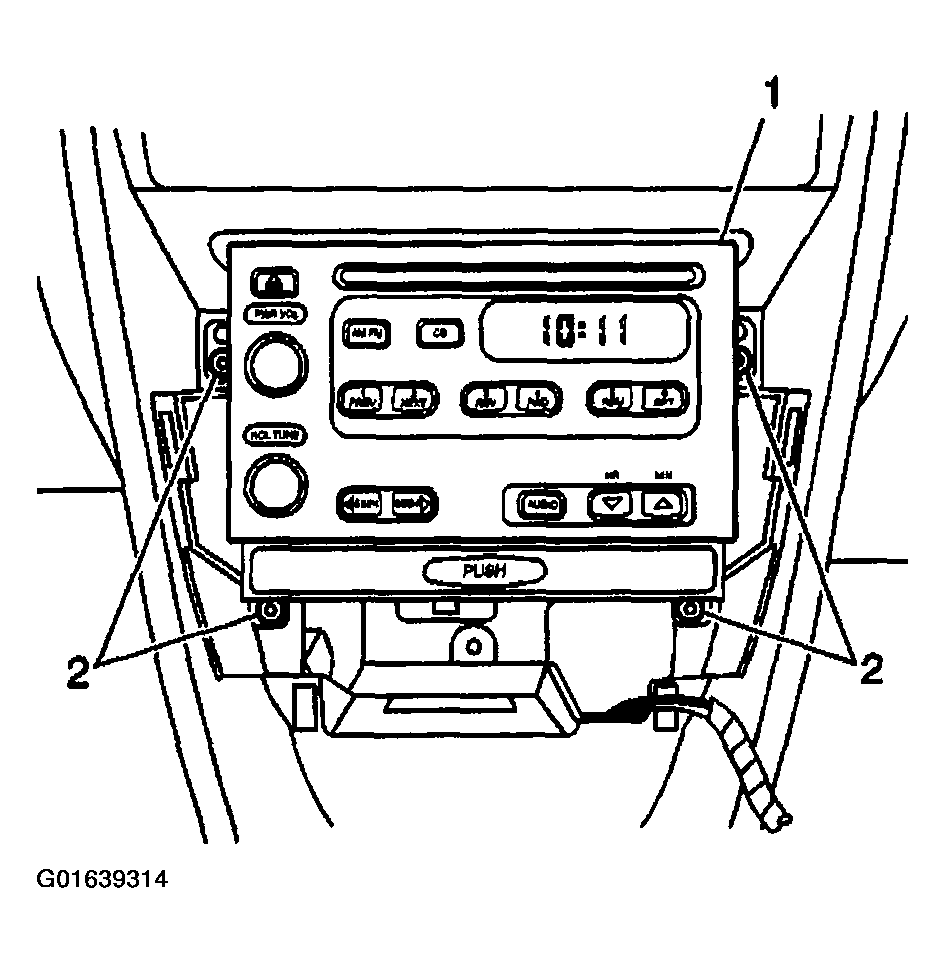

Fig 1: Removing 4 Screws
Courtesy of GENERAL MOTORS CORP.
Pull the radio (2) from the instrument panel.

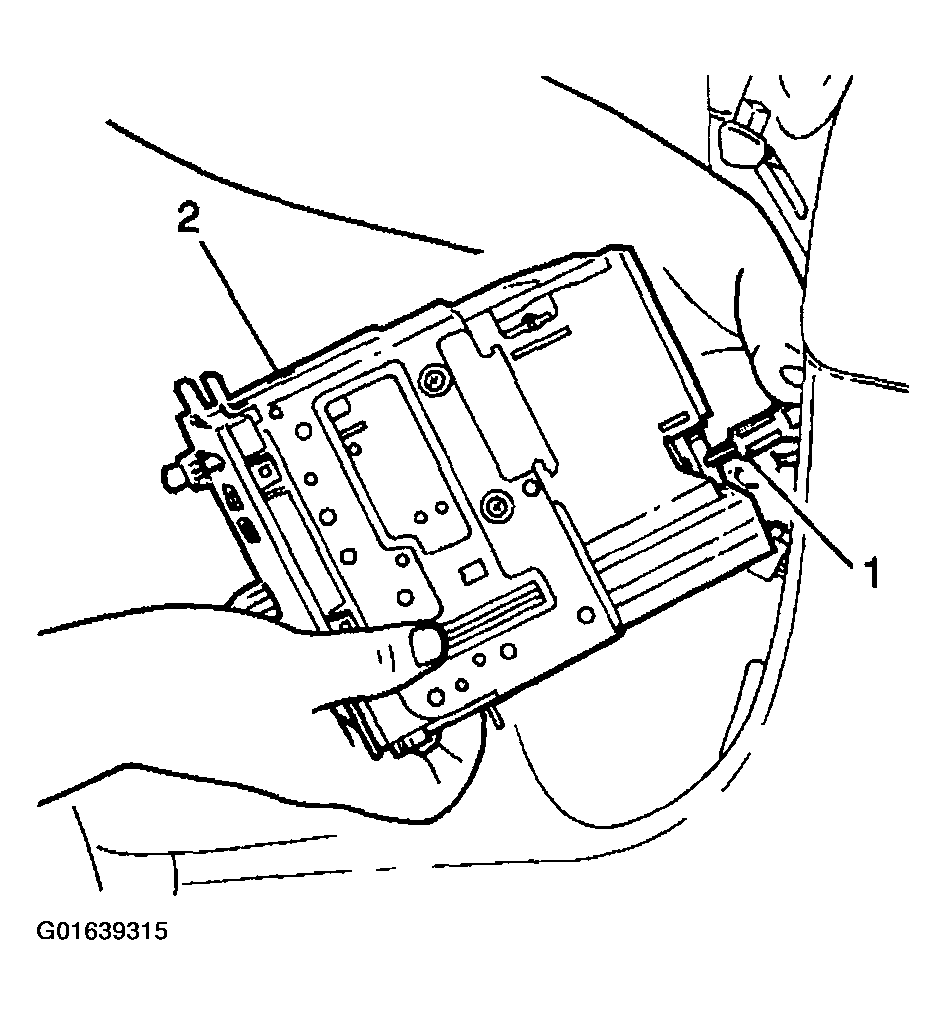

Fig 2: Pulling Radio From Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Disconnect the following from the radio:
- The electrical connector
- The antenna lead (1)
