Daytime Running Lamps (DRL) Module Connector End View C1

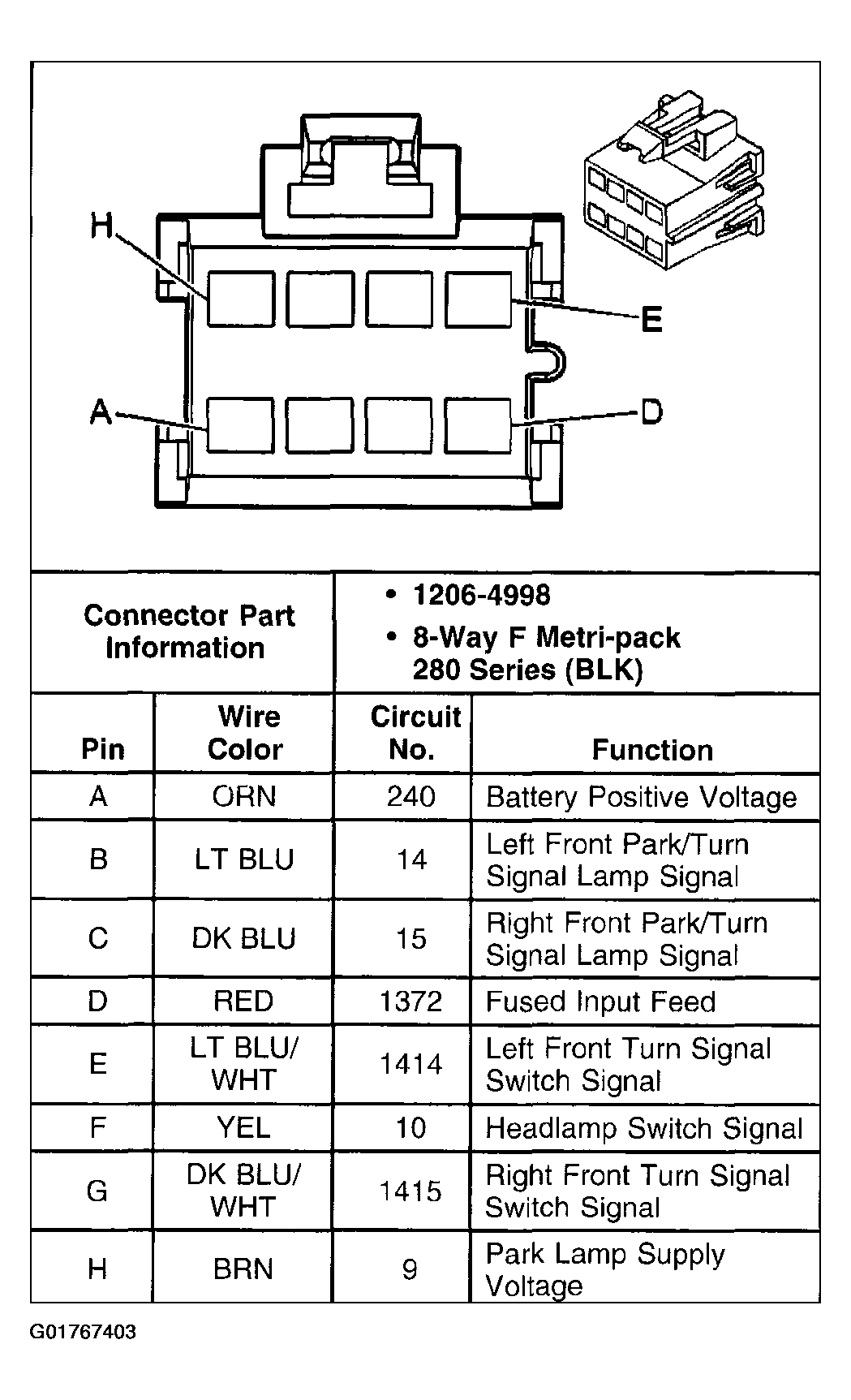

Fig 1: Daytime Running Lamps (DRL) Module Connector End View C1
G01767403Courtesy of GENERAL MOTORS CORP.
