Refrigerant Pressure Sensor Connector End View
Refrigerant Pressure Sensor Connector End View

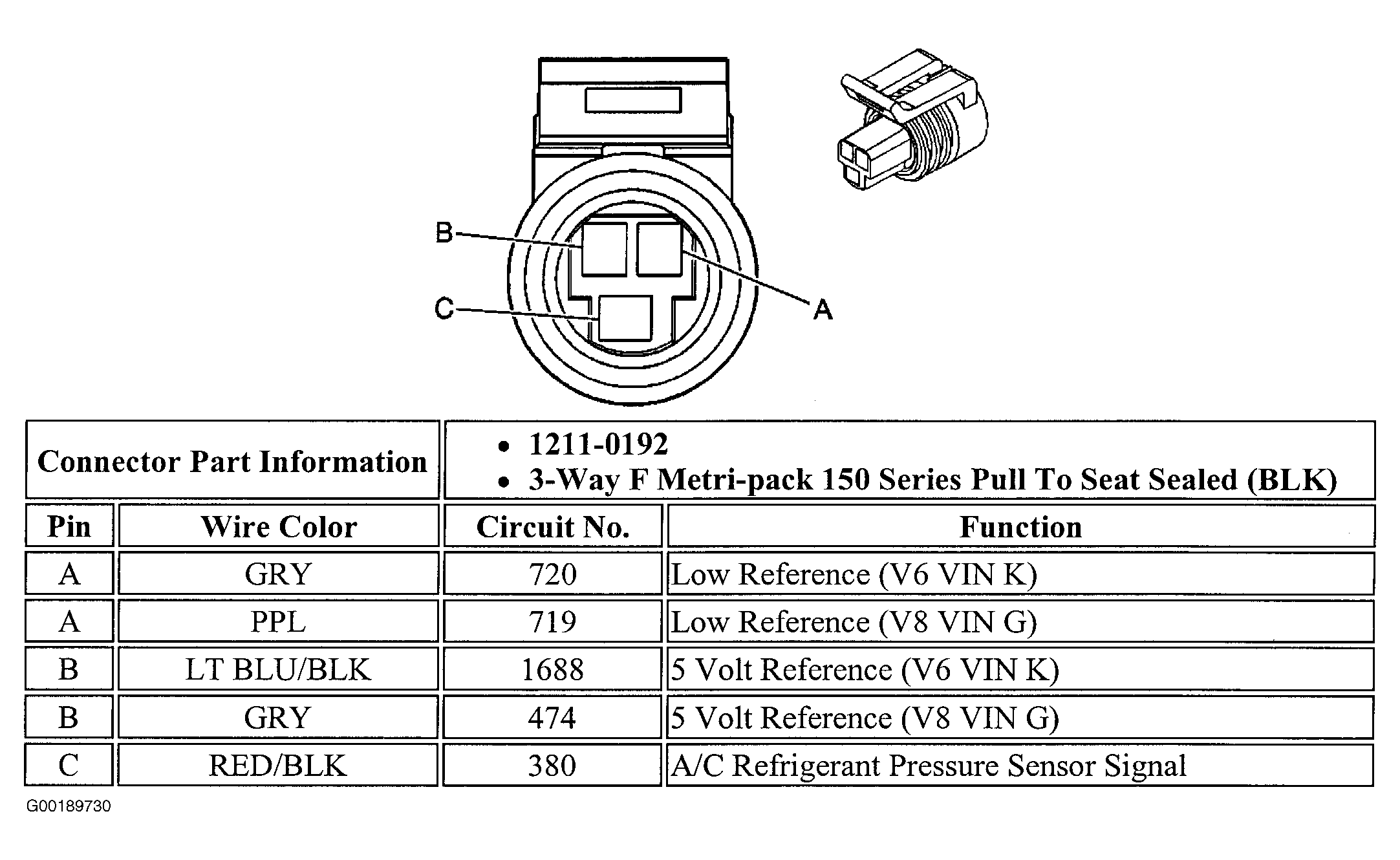

Fig 1: Refrigerant Pressure Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
