Stop Lamp Switch Connector End View C1
Stop Lamp Switch Connector End View C1

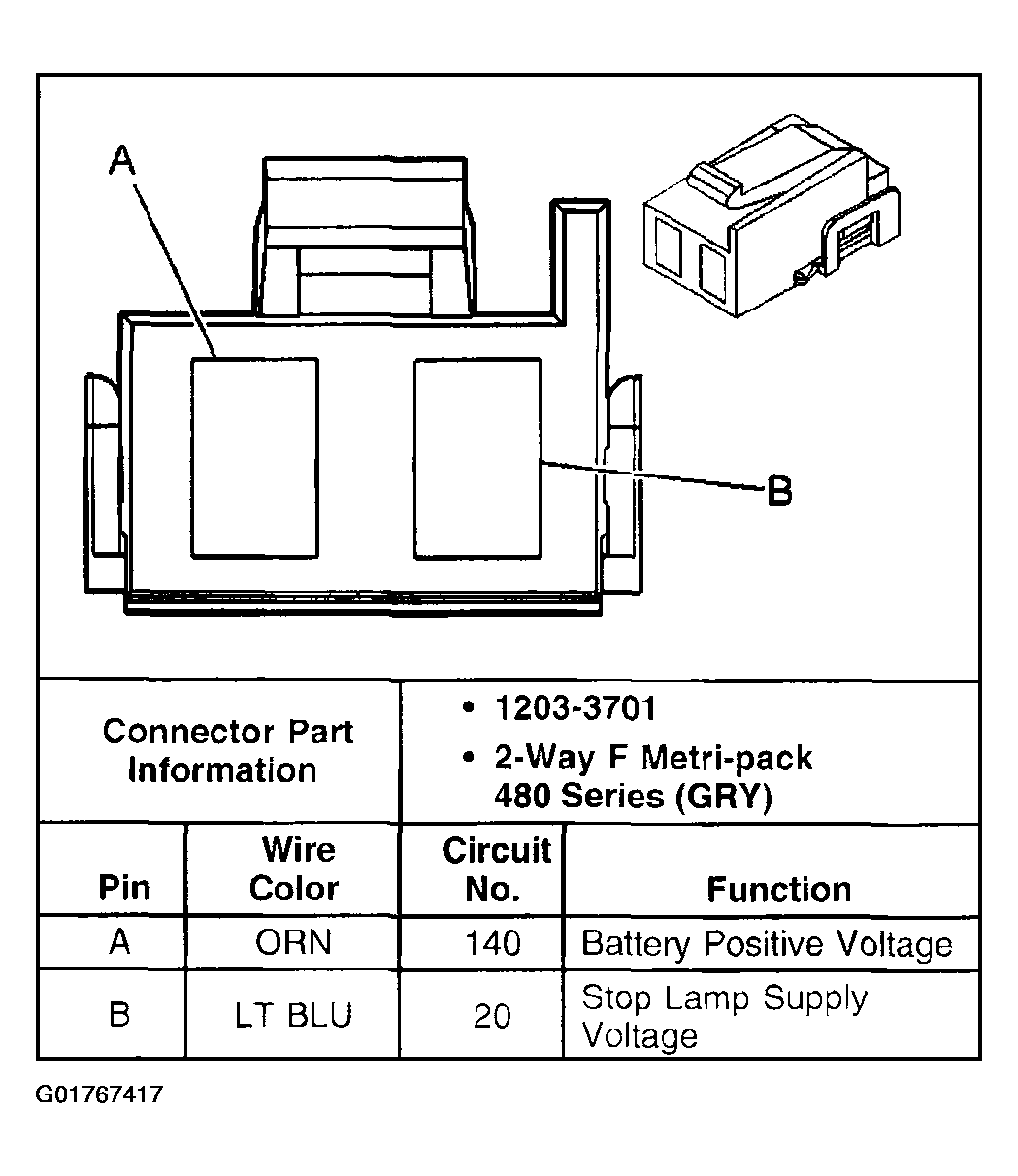

Fig 1: Stop Lamp Switch Connector End View C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
