Vehicle Speed Sensor Connector End View

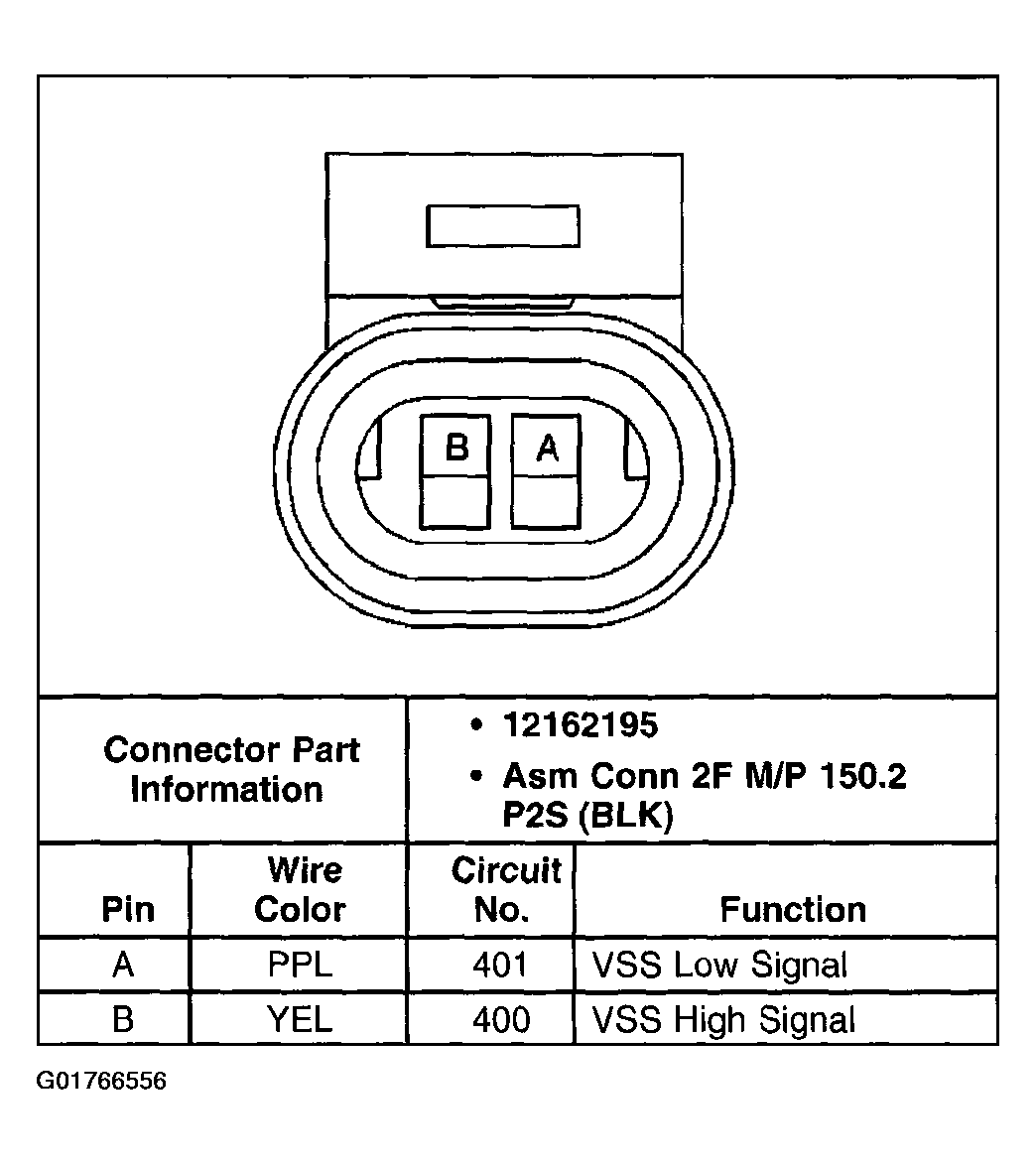

Fig 1: Vehicle Speed Sensor Connector End View
G01766556Courtesy of GENERAL MOTORS CORP.

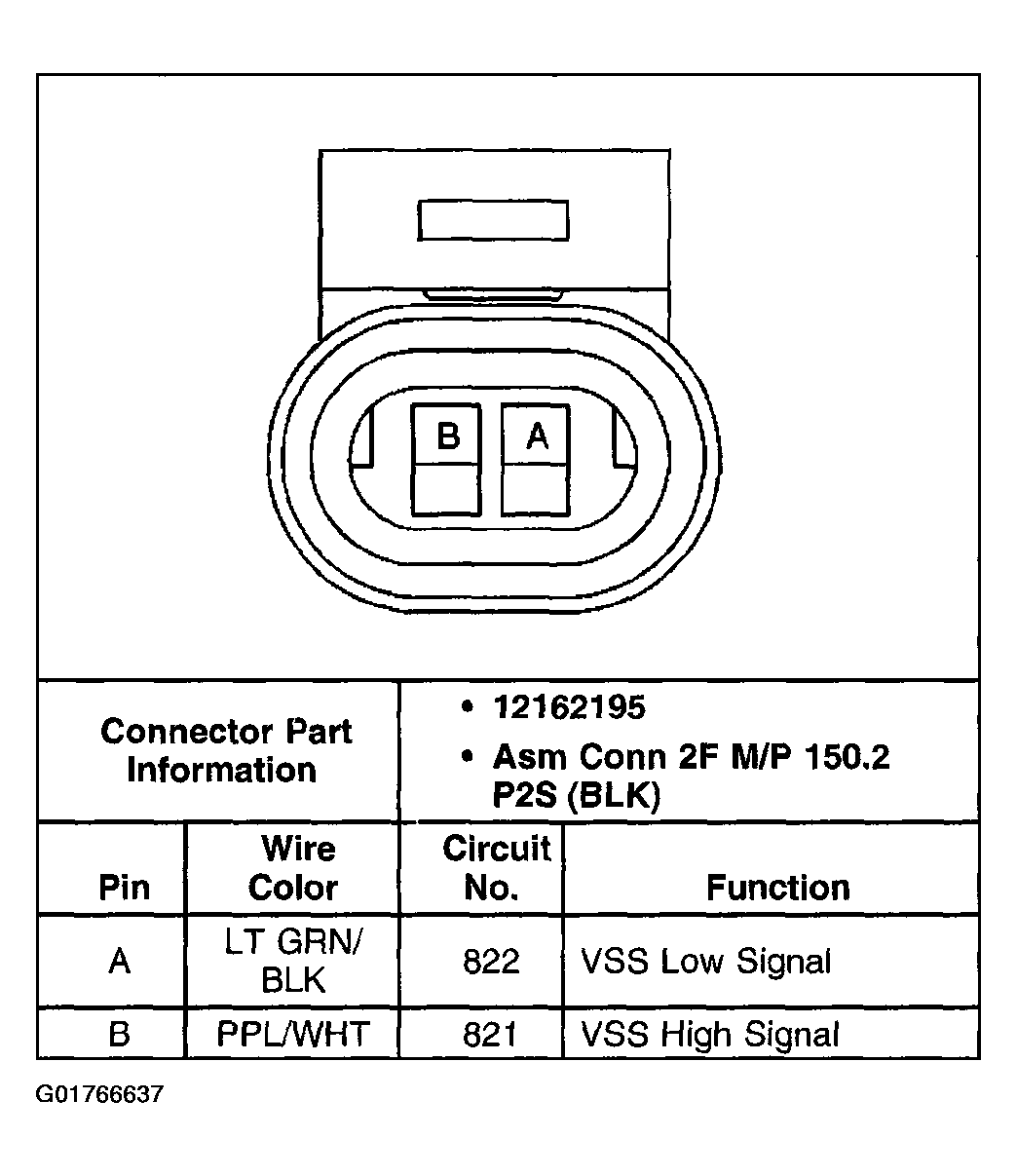

Fig 1: Vehicle Speed Sensor Connector End View
G01766637Courtesy of GENERAL MOTORS CORP.
