Installation Procedure

  1. Apply a continuous 3 mm (0.125 in) bead of Gasket Maker on the extension housing-to-shift control sealing surface. Use GM P/N 12345739 or equivalent.
    Fig 1: Applying Gasket Maker
    G01766675Courtesy of GENERAL MOTORS CORP.
  2. Install the shift control.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the shift control bolts.

    Tighten

    Tighten the shift control bolts to 18 N.m (13 ft lbs).

  4. Install the shift control closeout boot. Refer to Shift Control Shift Closeout Boot Replacement .

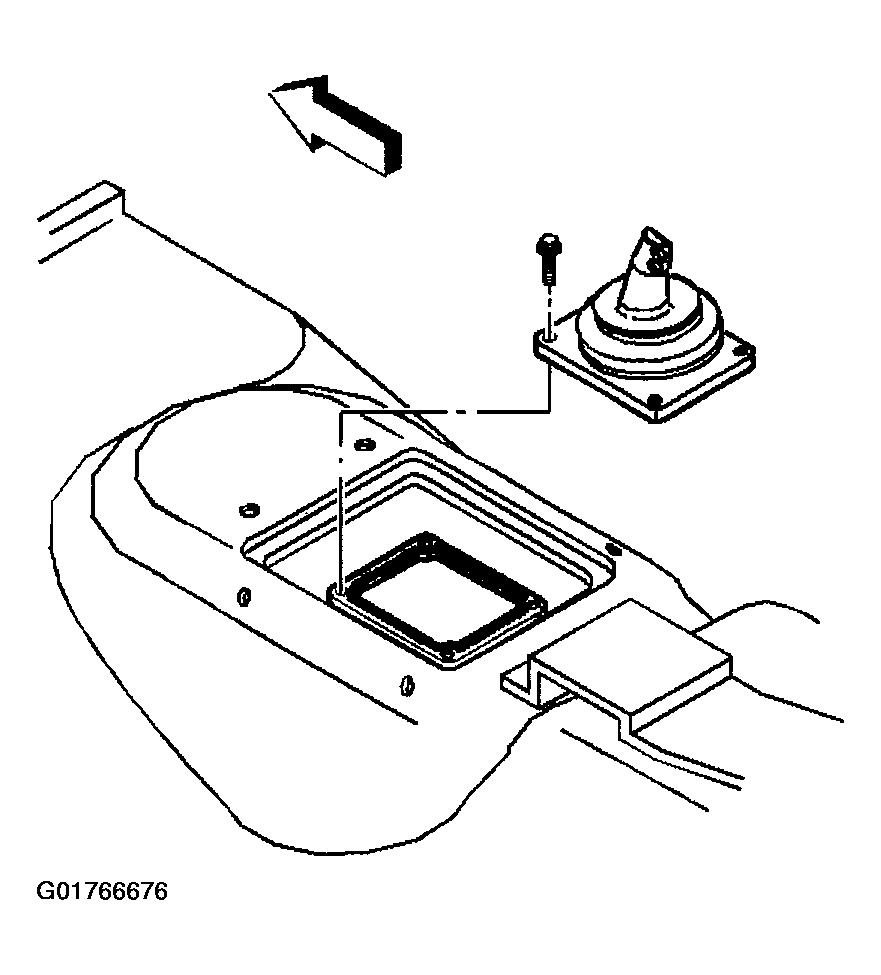

    Fig 2: Installing Shift Control Bolts
    G01766676Courtesy of GENERAL MOTORS CORP.
