Back-Up Light Switch: Installation

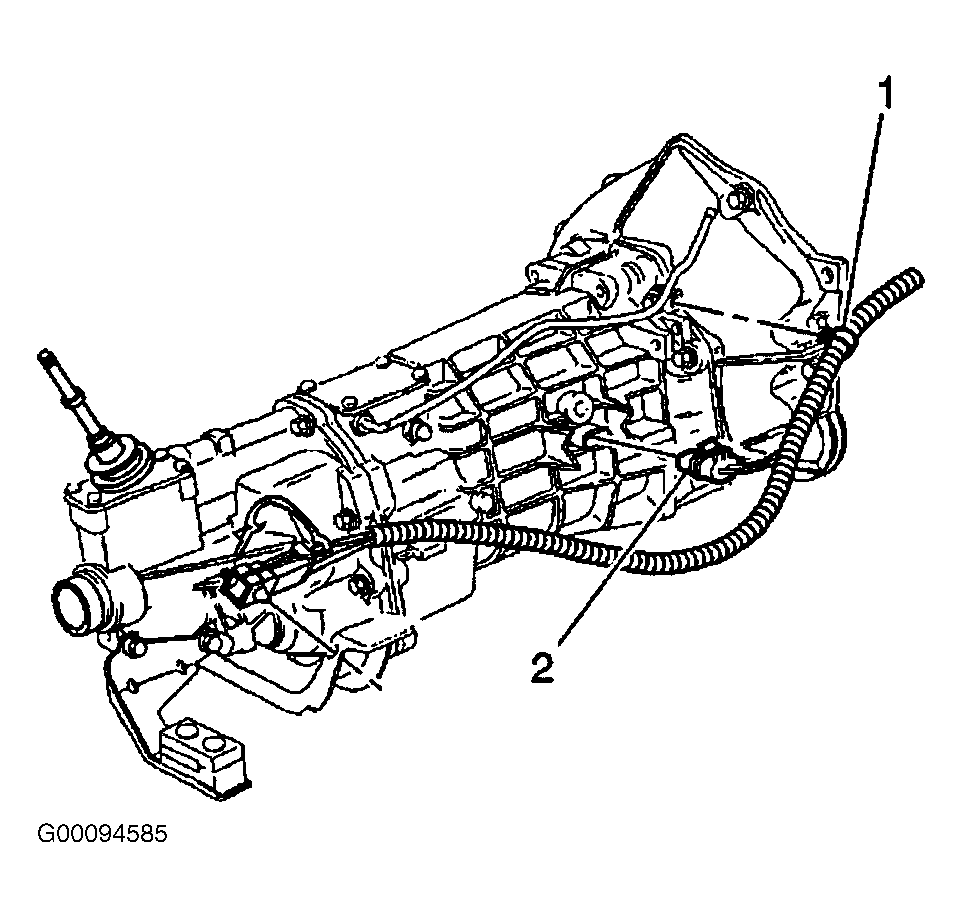

Apply pipe sealant with Teflon(R) (GM P/N 1052080) or equivalent, to the threads of the back-up light switch. Install the back-up light switch. Tighten the back-up light switch to specification. See TORQUE SPECIFICATIONS . Connect the back-up light switch harness connector (2). Ensure wiring harness clip (1) is secure. See Fig 1 . Lower the vehicle.
Install the back-up light switch. Tighten the back-up light switch to specification. See TORQUE SPECIFICATIONS . Connect the back-up light switch harness connector. See Fig 1 . Install the catalytic converter. Lower the vehicle.
