Stationary Windows Component Views

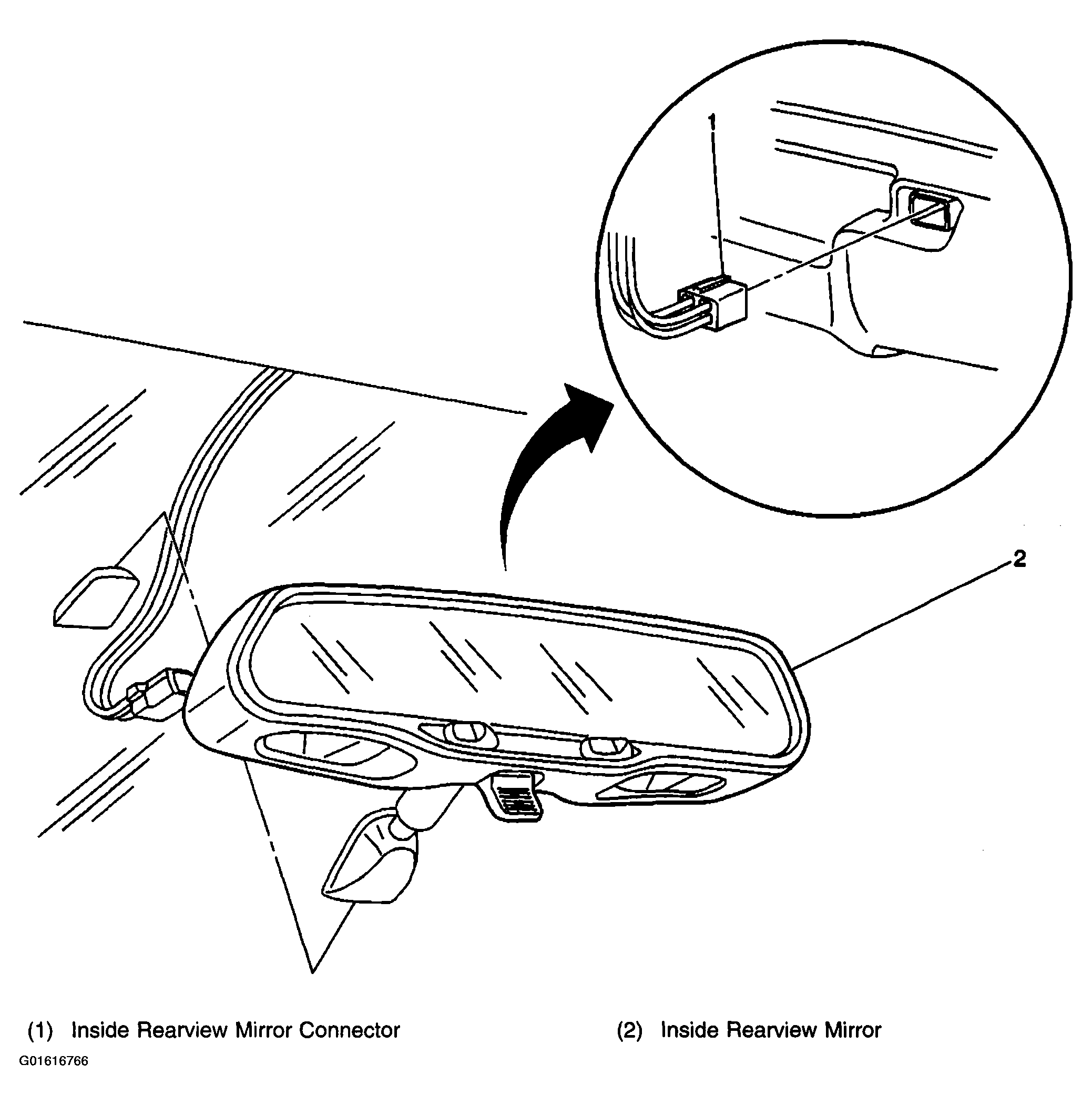

Fig 1: Forward Center Of Interior Compartment

Courtesy of GENERAL MOTORS CORP.

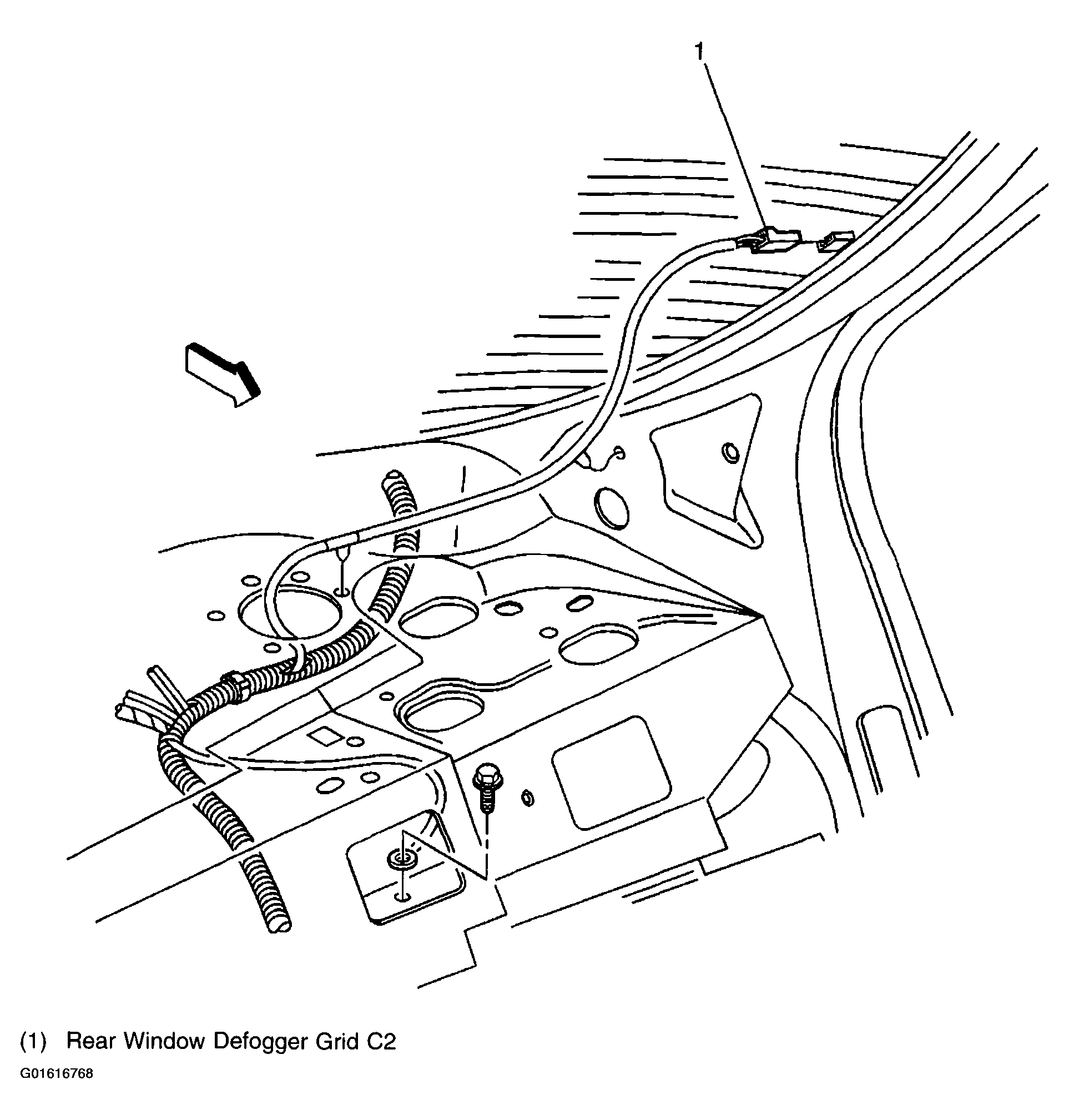

Fig 2: Right Side Of Rear Window

Courtesy of GENERAL MOTORS CORP.

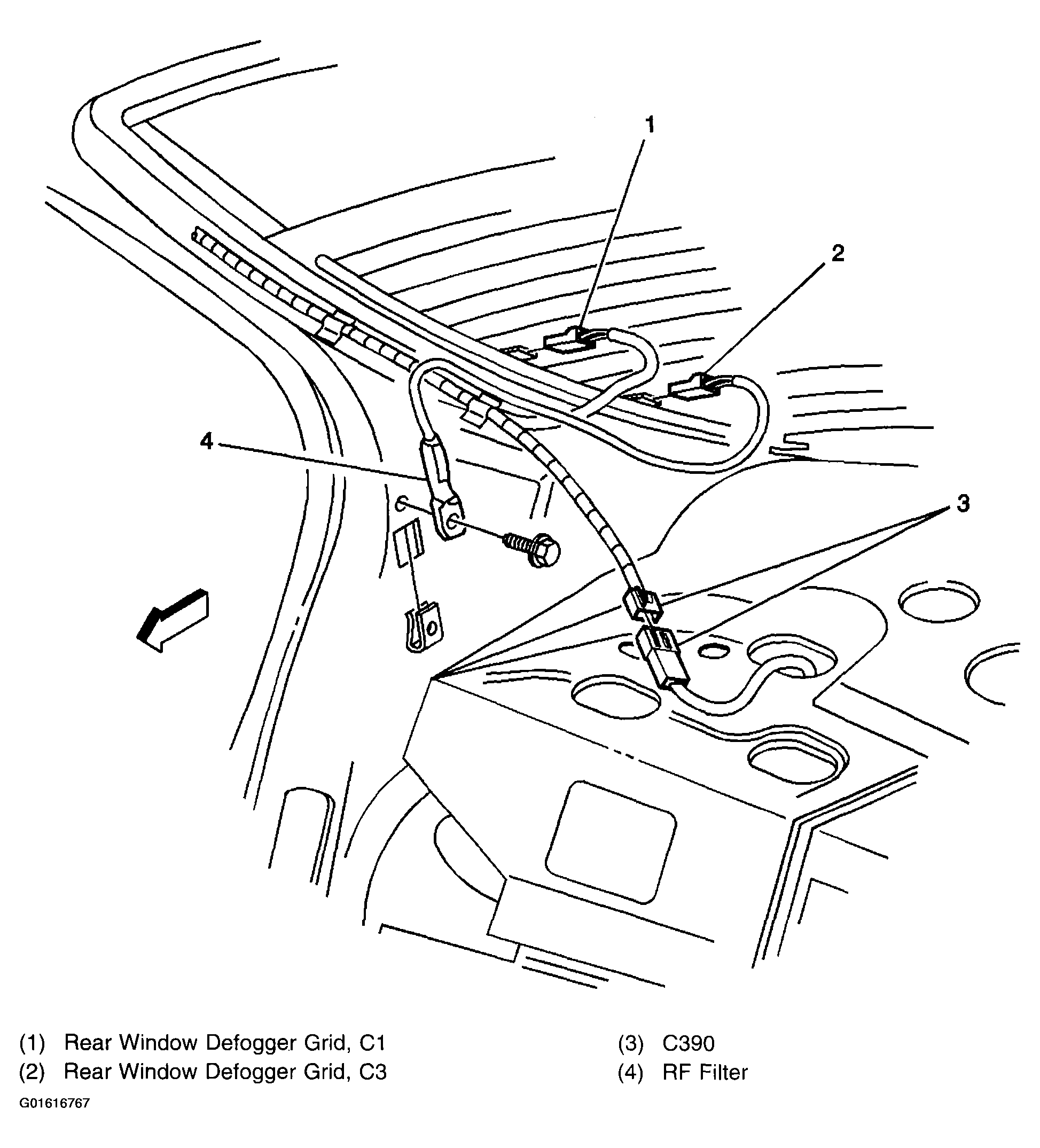

Fig 3: Left Rear Window

Courtesy of GENERAL MOTORS CORP.

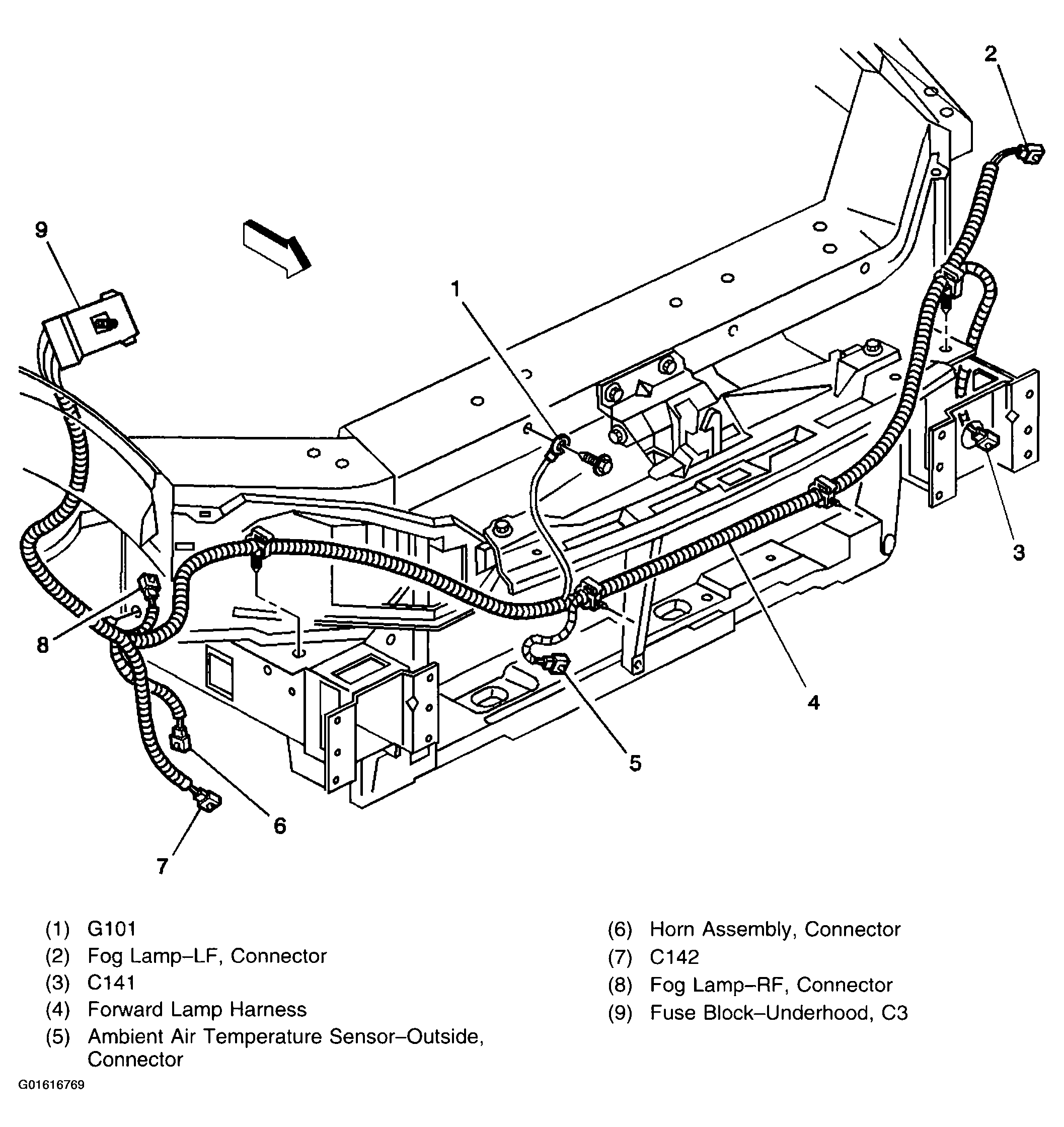

Fig 4: Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.
