Installation Procedure

  1. Install the automatic level control height sensor link onto the height sensor arm.
  2. Install the automatic level control height sensor with the bracket onto the vehicle.
  3. Install the automatic level control height sensor bracket bolts (1).

    Tighten

    Tighten the height sensor bracket bolts to 85 N.m (63 lb ft).

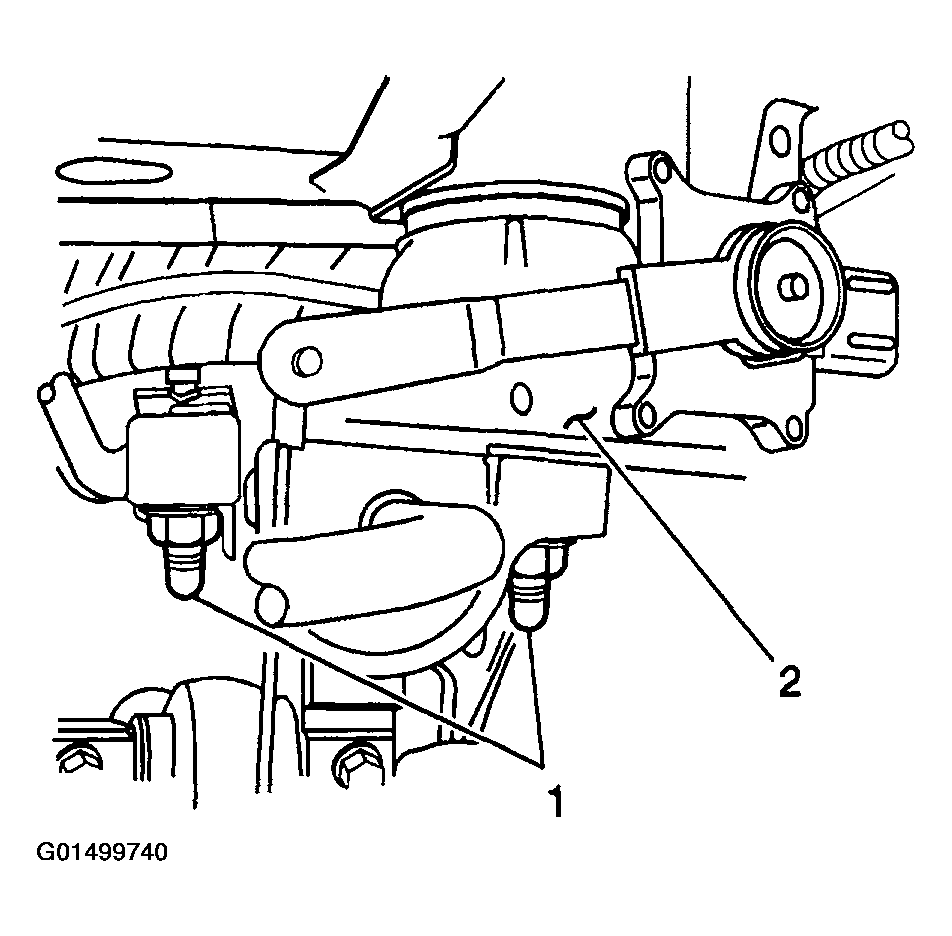

    Fig 1: Installing Automatic Level Control Height Sensor Bracket Bolts
    G01499740Courtesy of GENERAL MOTORS CORP.
  4. Install the automatic level control sensor link to the ball stud.
  5. Install the automatic level control sensor electrical connector (1).
  6. Lower the vehicle.
  7. Perform a diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - AUTOMATIC LEVEL CONTROL (WITH INFLATOR)  .

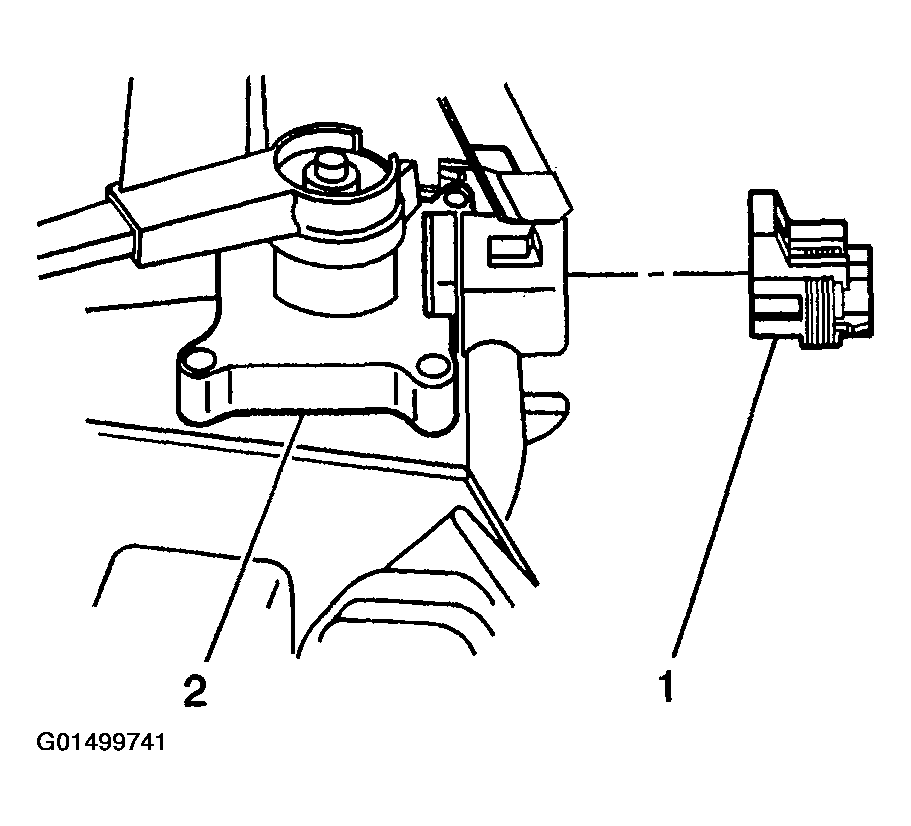

    Fig 2: Installing Automatic Level Control Sensor Electrical Connector
    G01499741Courtesy of GENERAL MOTORS CORP.
