Automatic Transmission Shift Lock Control Schematics (Buick)
Automatic Transmission Shift Lock Control Schematics (Buick)

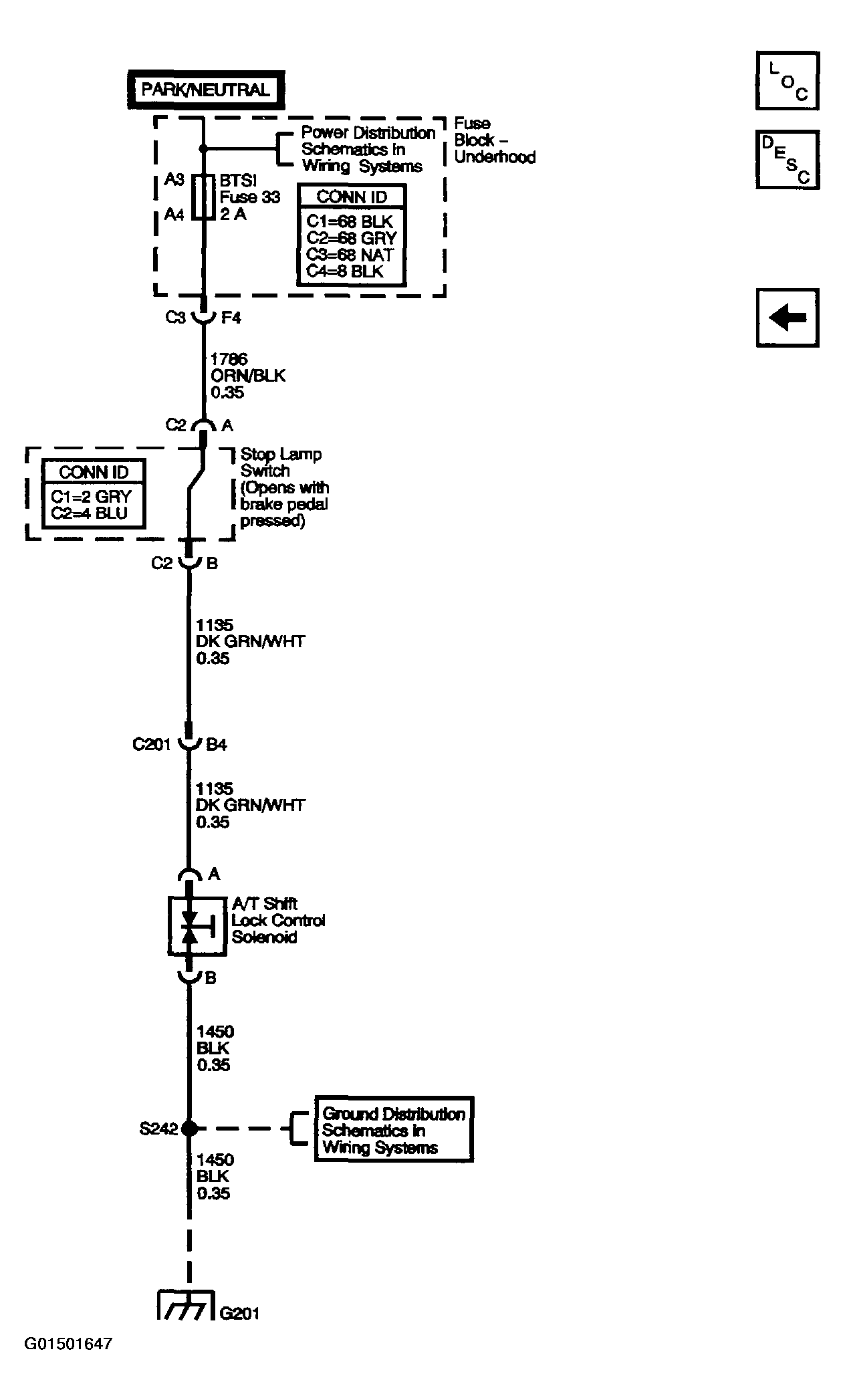

Fig 1: Automatic Transmission Shift Lock Control Schematics (Buick)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
