Test Description

The number below refers to the step number on the diagnostic table.

1. If the battery positive voltage and ground circuits of the DLC are functioning properly. The malfunction must be due to the scan tool.

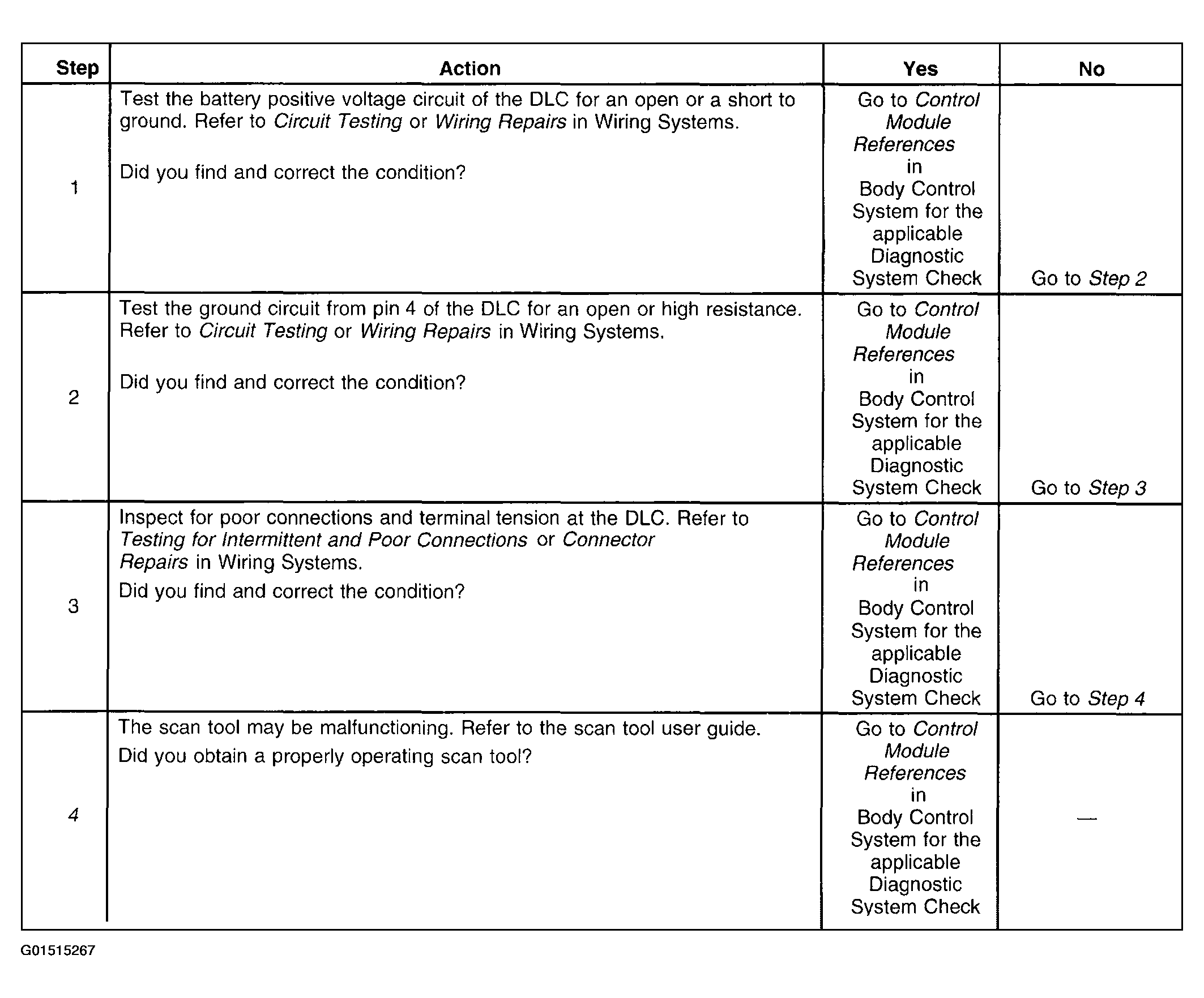

Fig 1: Scan Tool Does Not Power Up Diagnostic Procedure

Courtesy of GENERAL MOTORS CORP.
