Schematic and Routing Diagrams

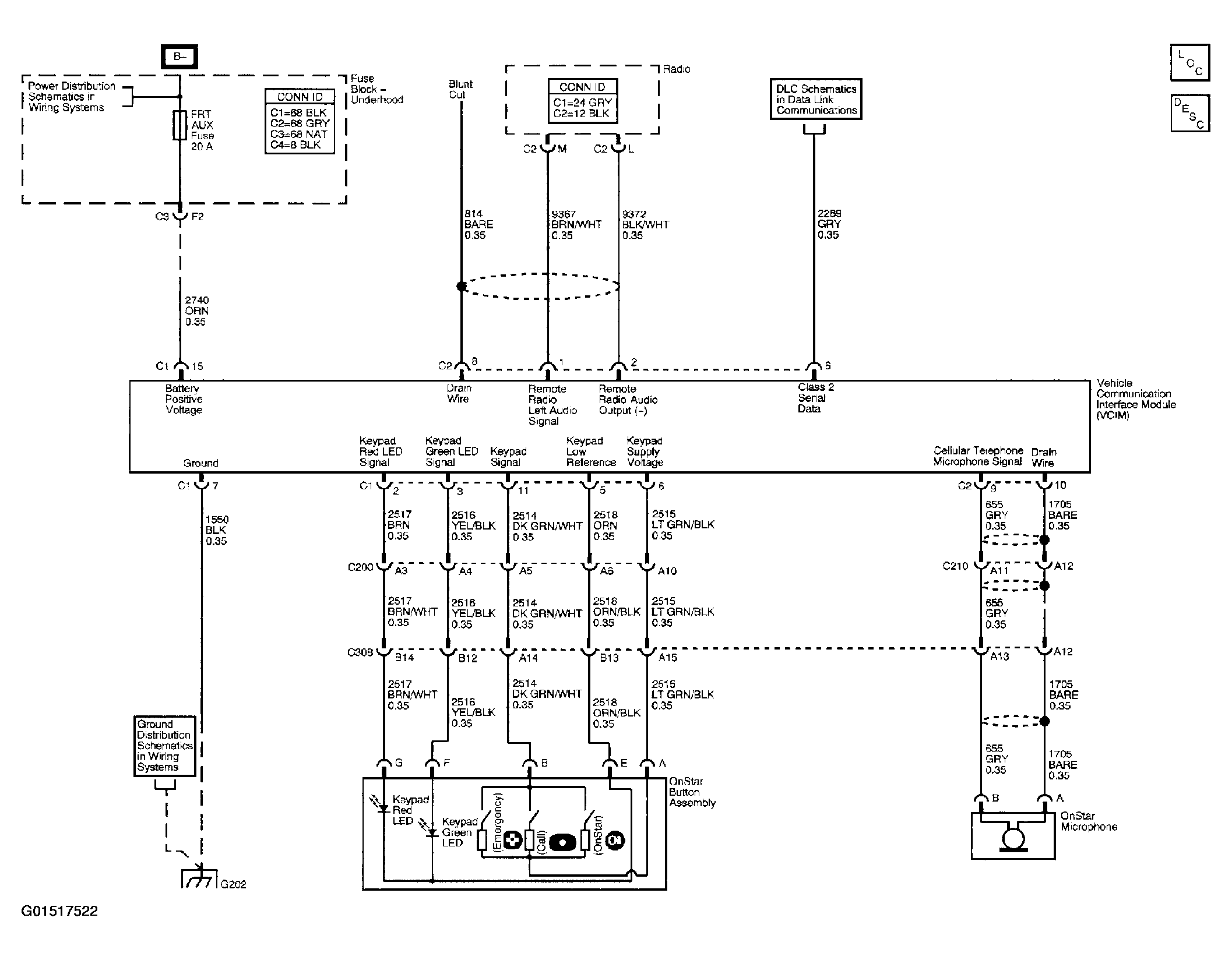

Fig 1: OnStar® Schematics Diagram
G01517522Courtesy of GENERAL MOTORS CORP.
