Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (RENDEZVOUS) .
  2. Disconnect the electrical connector.
  3. Remove the screws which retain the rear cargo audio control.

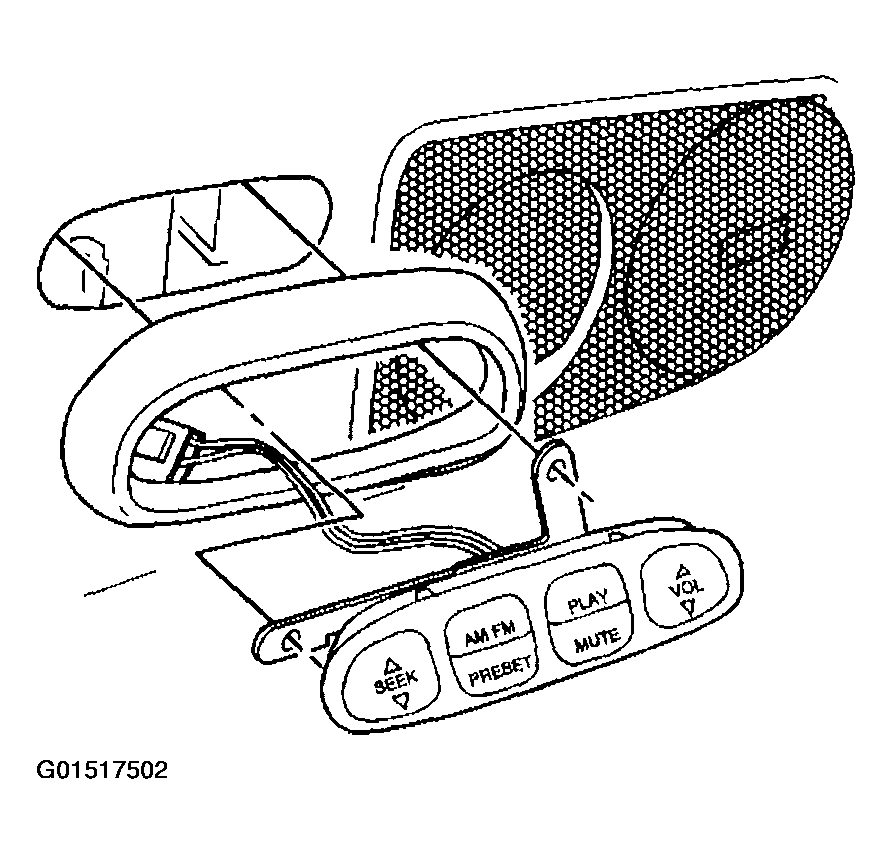

    Fig 1: Disconnecting Electrical Connector
    G01517502Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear cargo audio control from the trim panel.

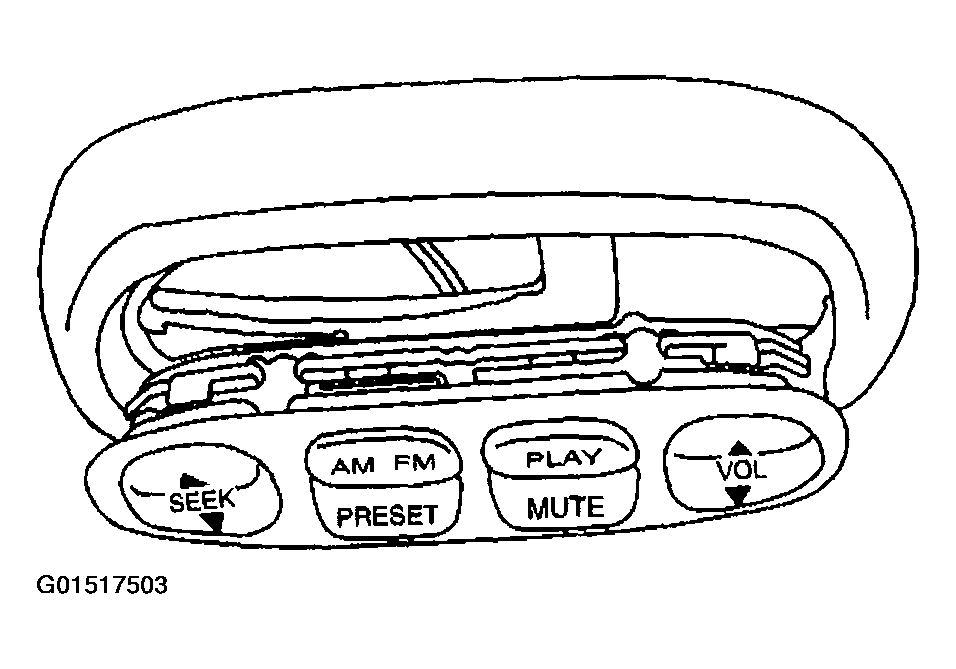

    Fig 2: Removing Rear Cargo Audio Control From Trim Panel
    G01517503Courtesy of GENERAL MOTORS CORP.
