Removal Procedure

Using a flat-bladed tool, gently pry the second seat audio control out from the overhead console.

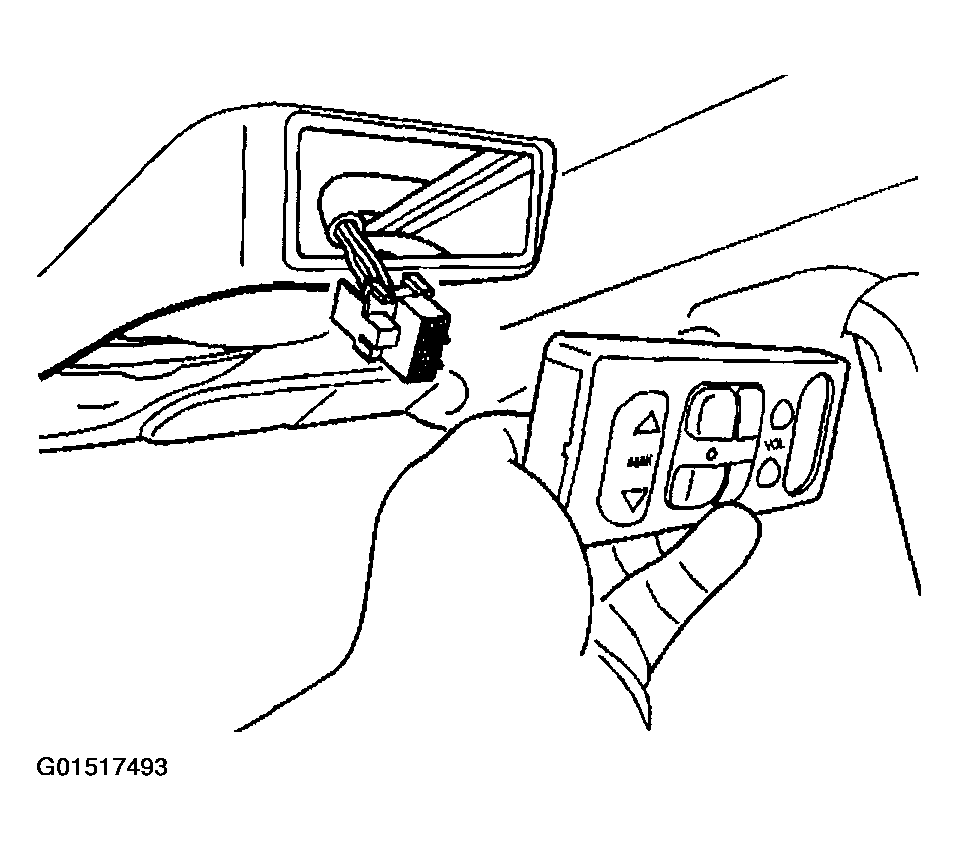

Fig 1: Removing Second Seat Audio Control From Overhead Console
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector.

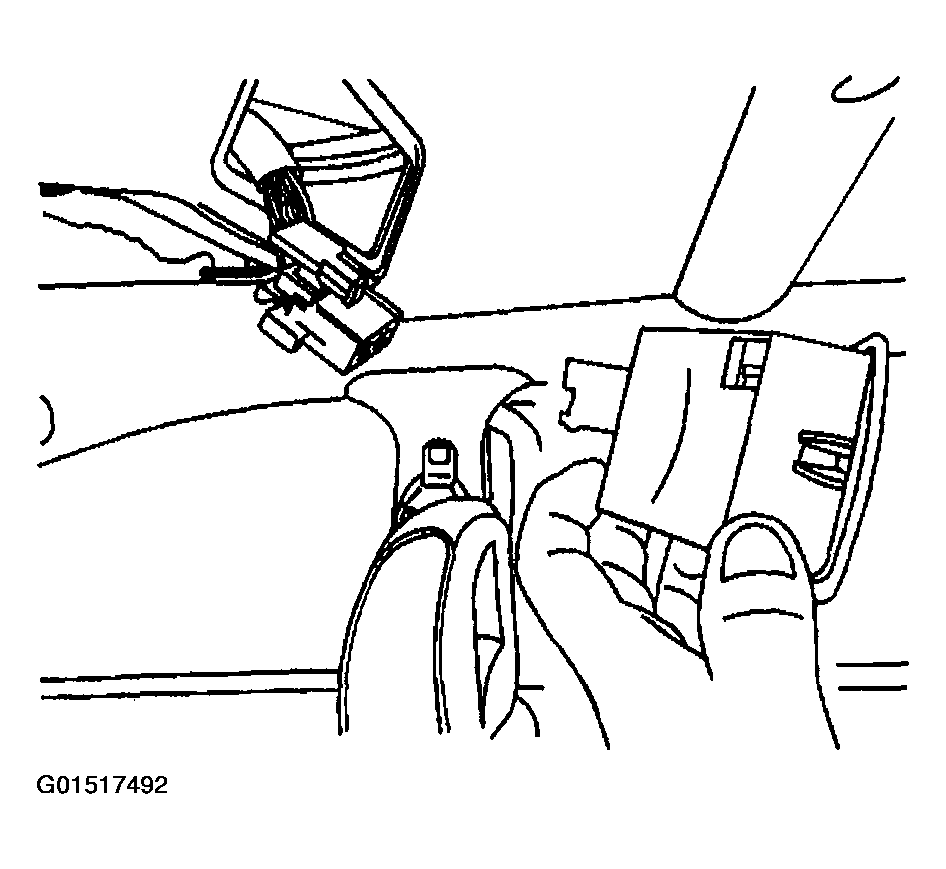

Fig 2: Disconnecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
