Installation Procedure

  1. Connect the wire harness to the speaker.
  2. Install the speaker screws.

    Tighten

    Tighten the screws to 3.2 N.m (28 lb in)

  3. Install the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT -- FRONT DOOR .
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR (RENDEZVOUS) .

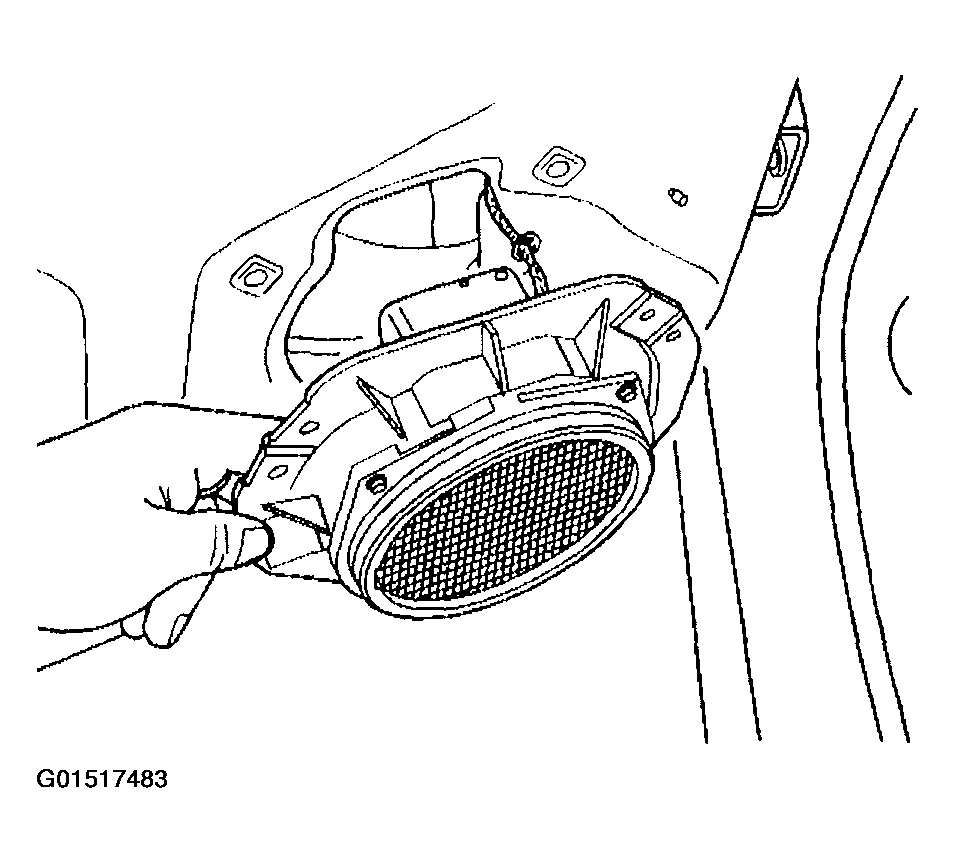

    Fig 1: Installing Speaker Screws
    G01517483Courtesy of GENERAL MOTORS CORP.
