OnStar® Button Assembly Replacement
›
Removal Procedure
Removal Procedure
Remove the overhead console door (3).
Reach your hand through the access opening and disconnect the electrical connectors (1) for the switches.
Remove the OnStar® button assembly (2).

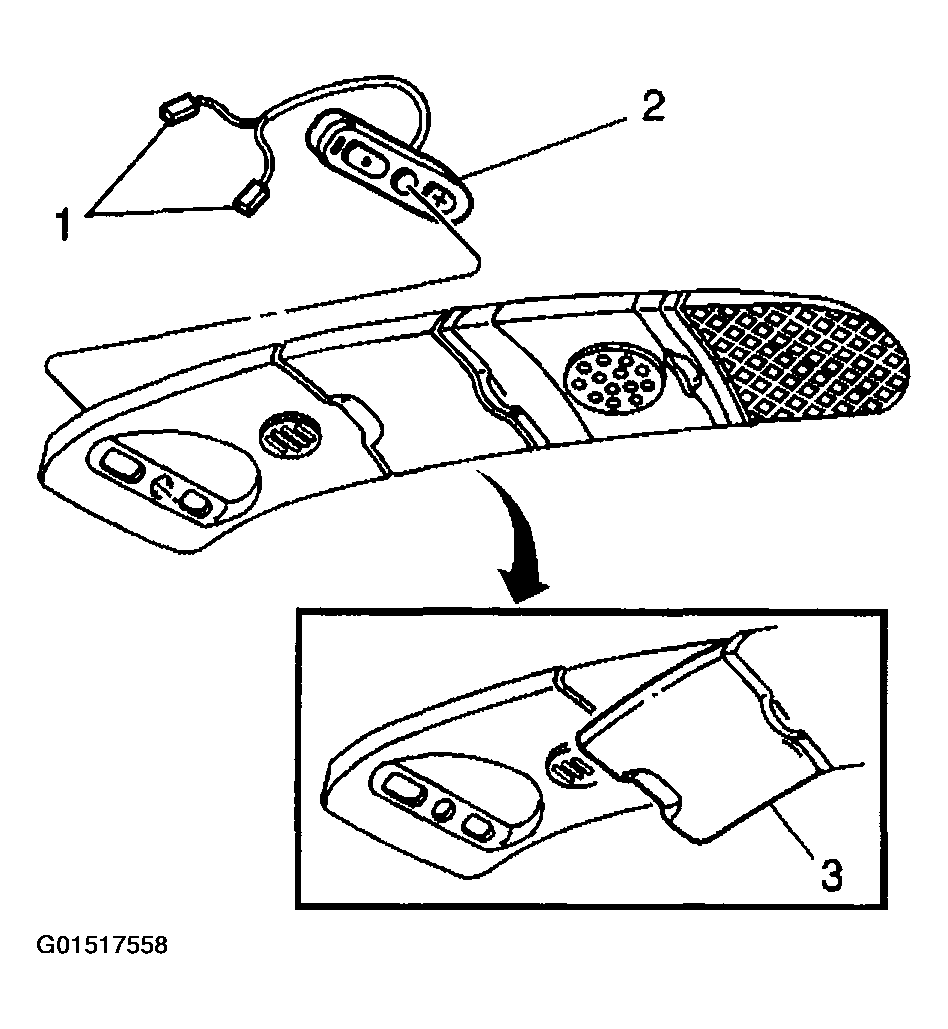

Fig 1: Removing Overhead Console Door & Connector
Courtesy of GENERAL MOTORS CORP.
