Symptom List: Notes

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

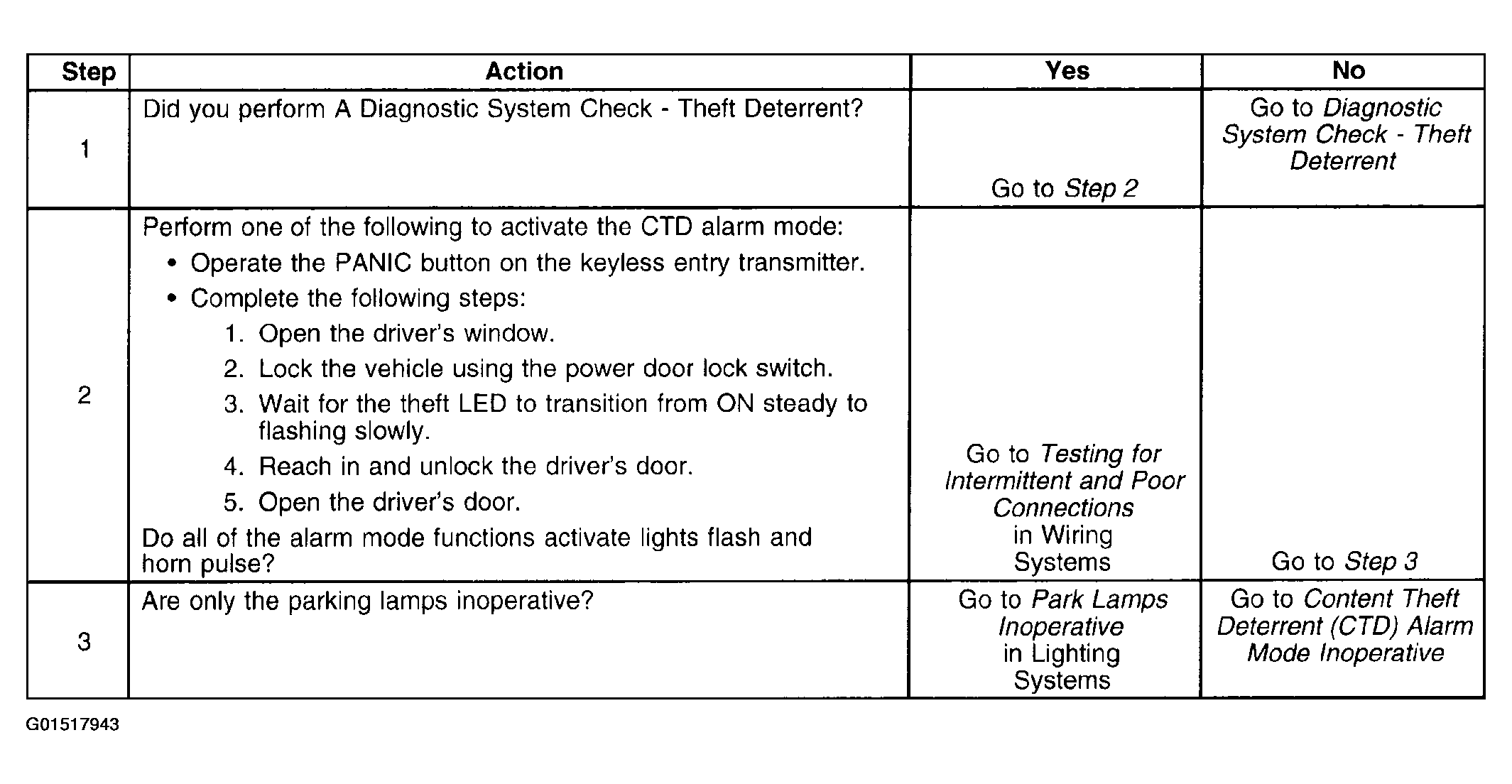

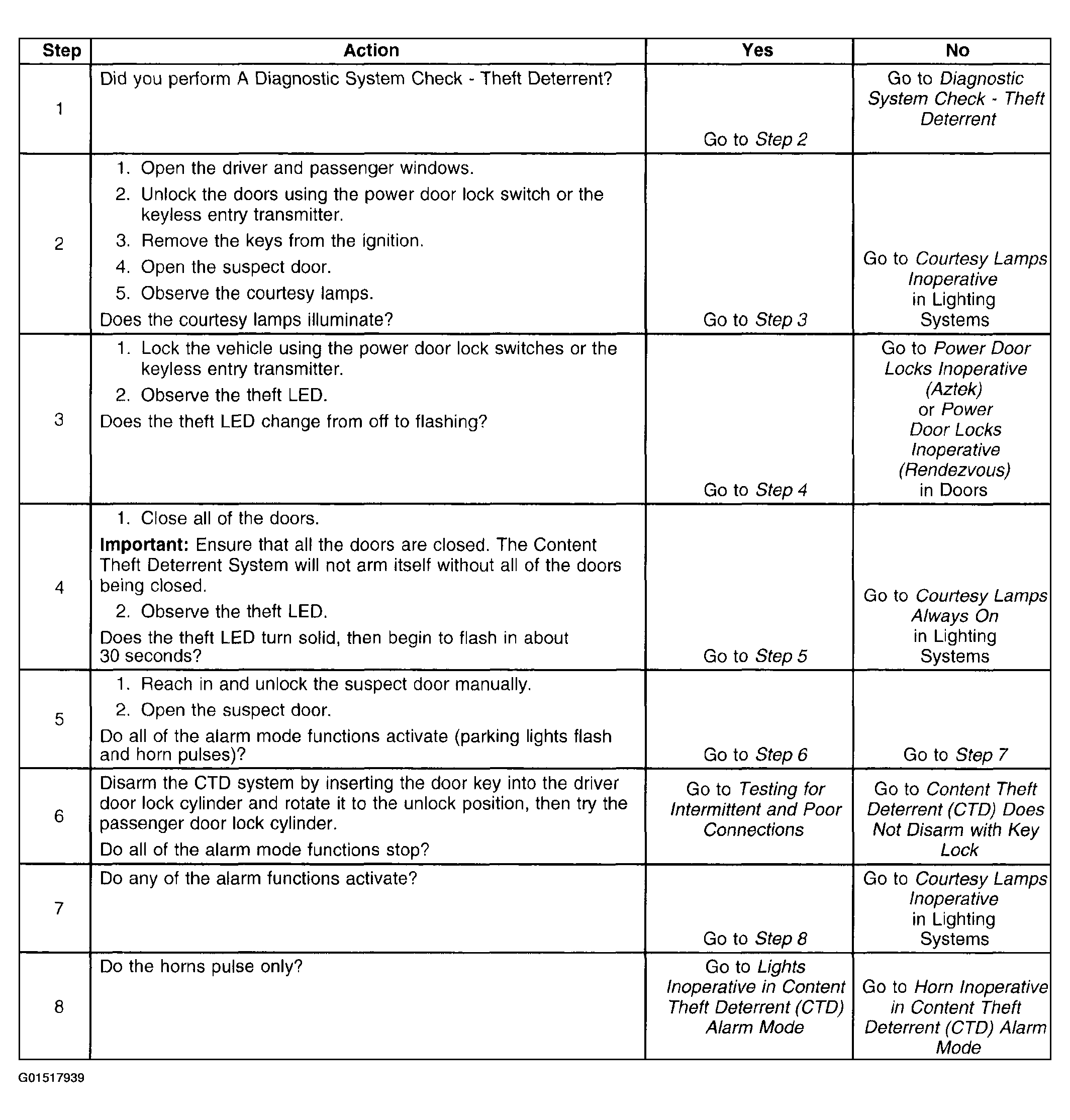

• Content Theft Deterrent (CTD) Alarm Mode Inoperative. See Figure

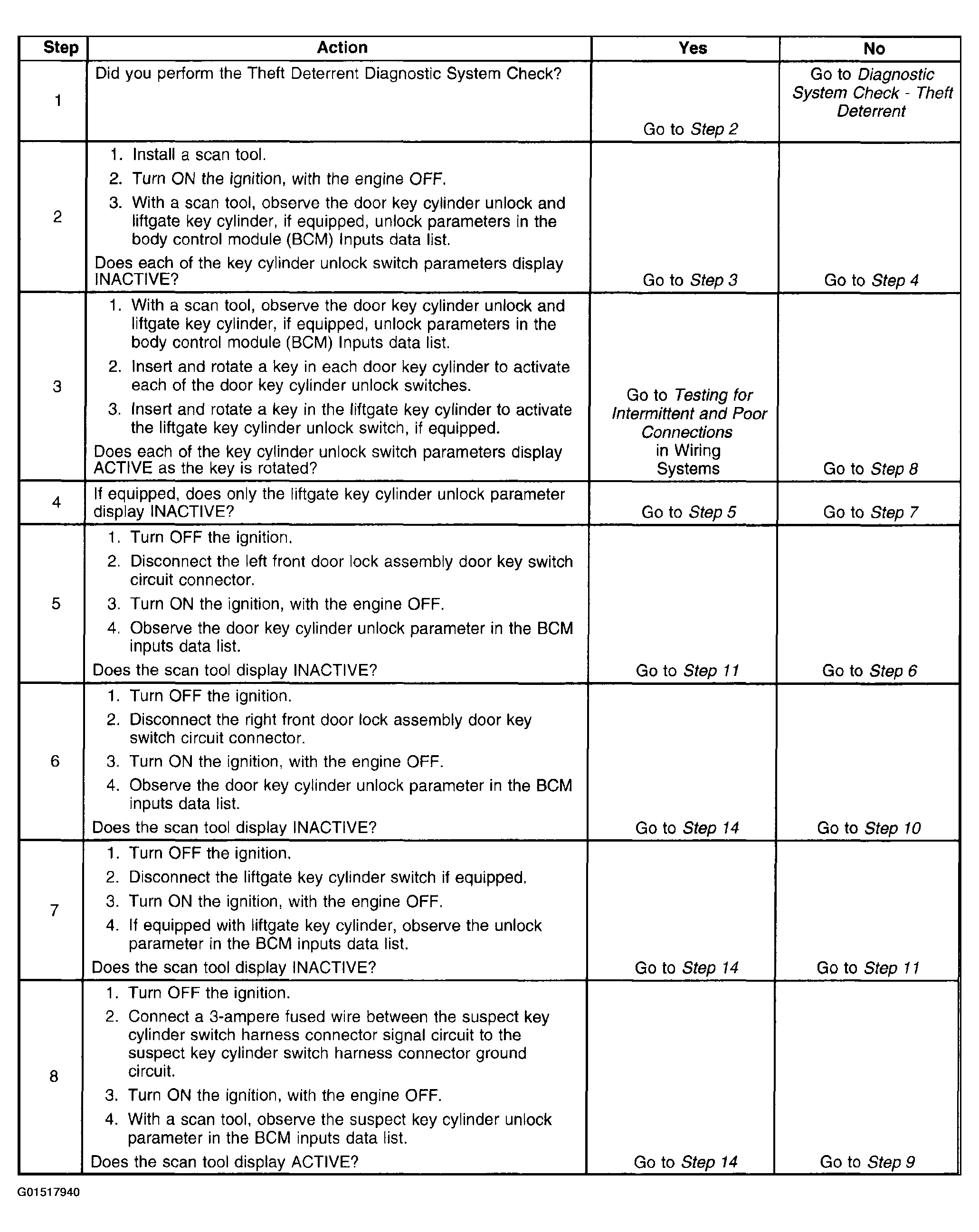

• Content Theft Deterrent (CTD) Does Not Disarm With Key Lock. See Figure

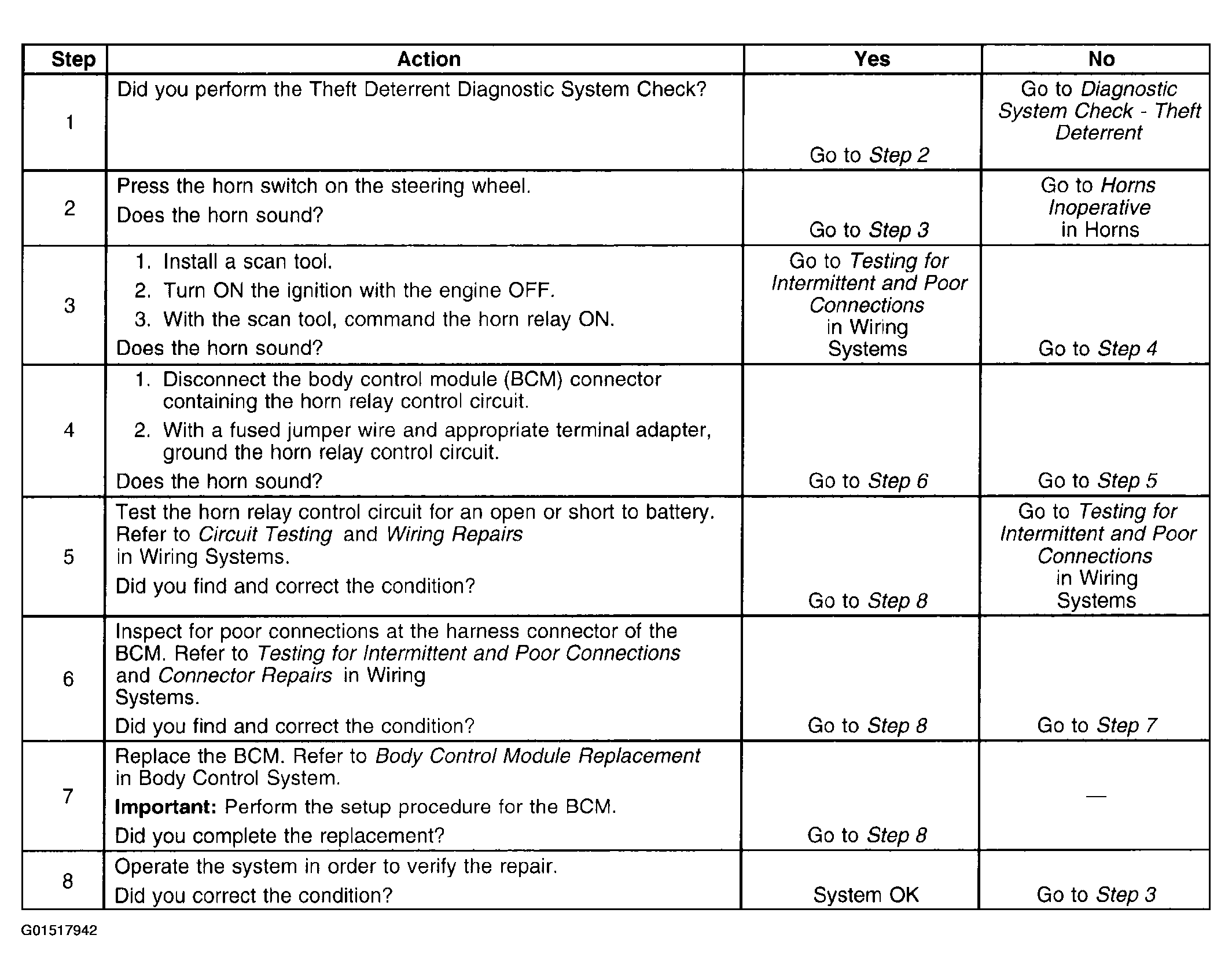

• Horn Inoperative In Content Theft Deterrent (CTD) Alarm Mode. See Figure
• Lights Inoperative In Content Theft Deterrent (CTD) Alarm Mode. See Figure

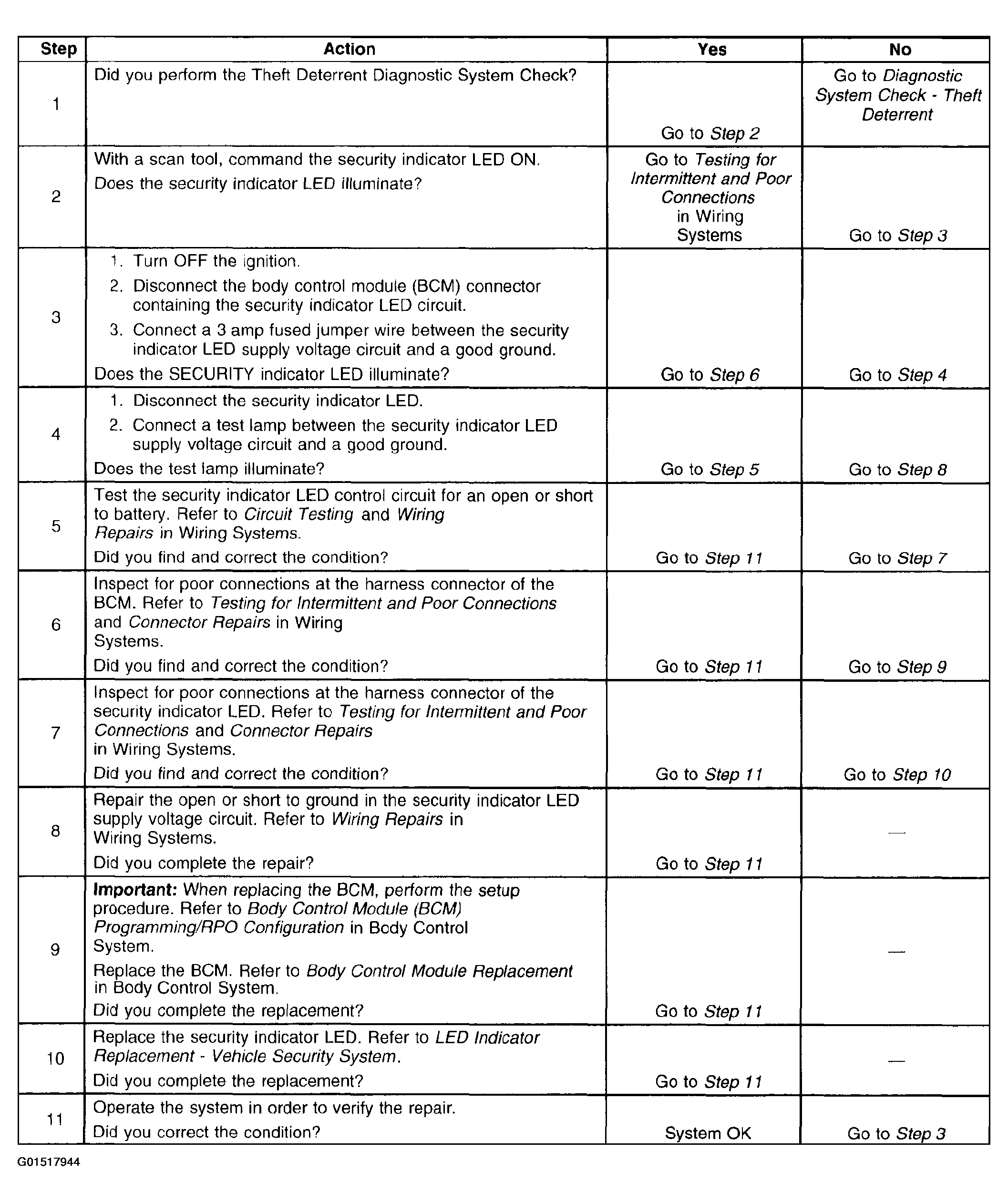

• Security Indicator Led Inoperative. See Figure
