Schematic and Routing Diagrams

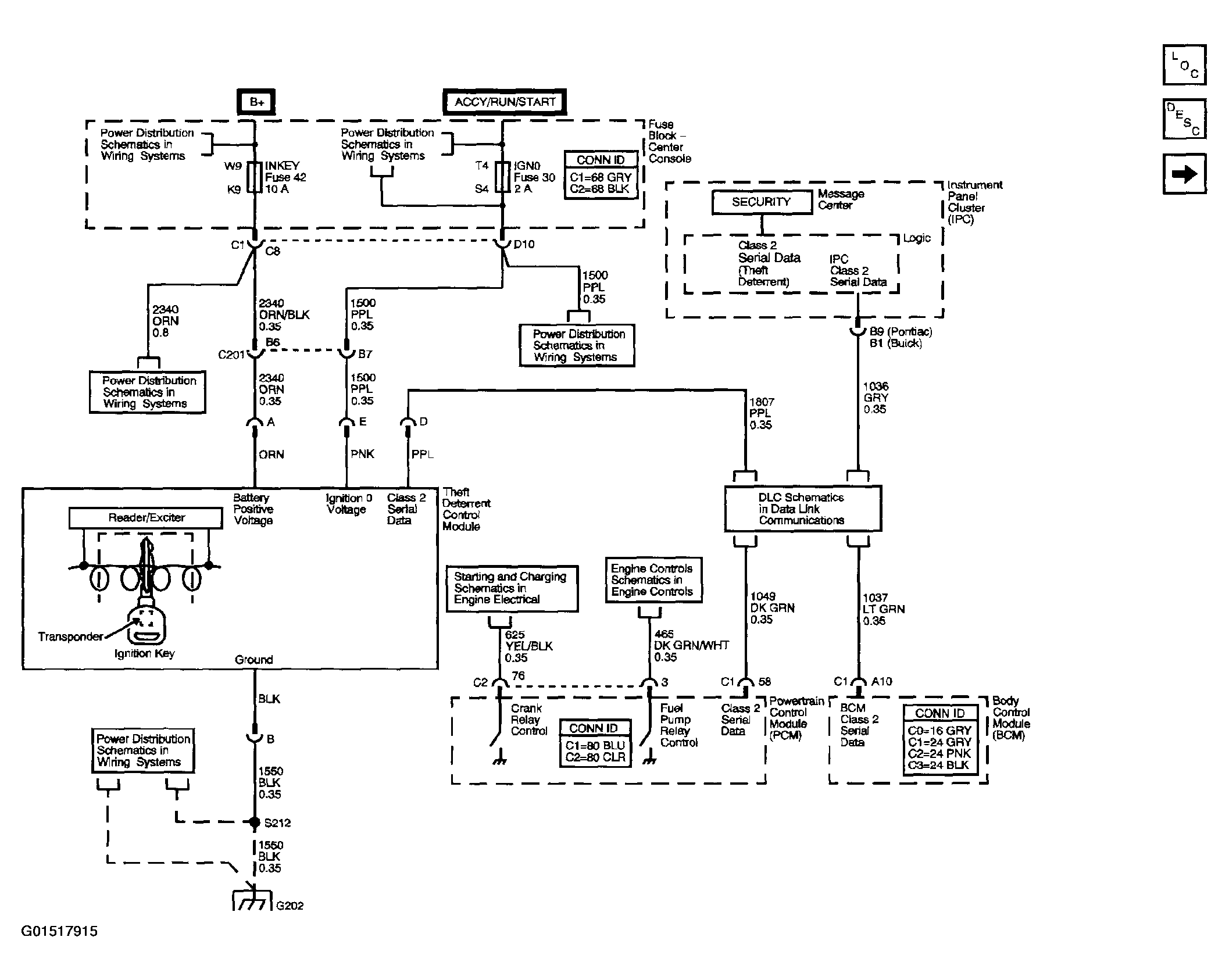

Fig 1: Theft Deterrent System Schematics (Fuel & Starter Disabling)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Theft Deterrent System Schematics (Indicators, Intrusion Detection & Warning)

Courtesy of GENERAL MOTORS CORP.

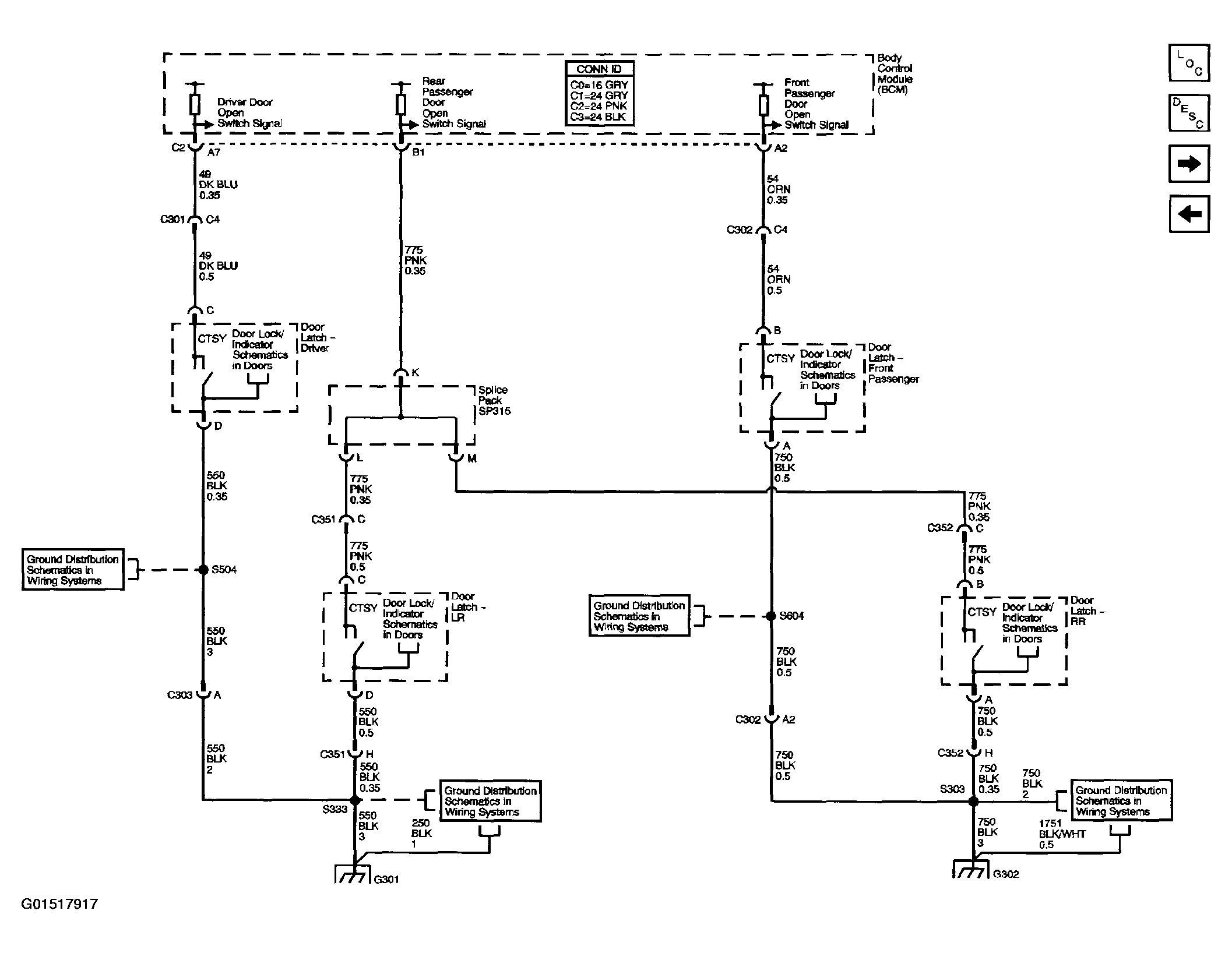

Fig 3: Theft Deterrent System Schematics (Door Switches)

Courtesy of GENERAL MOTORS CORP.

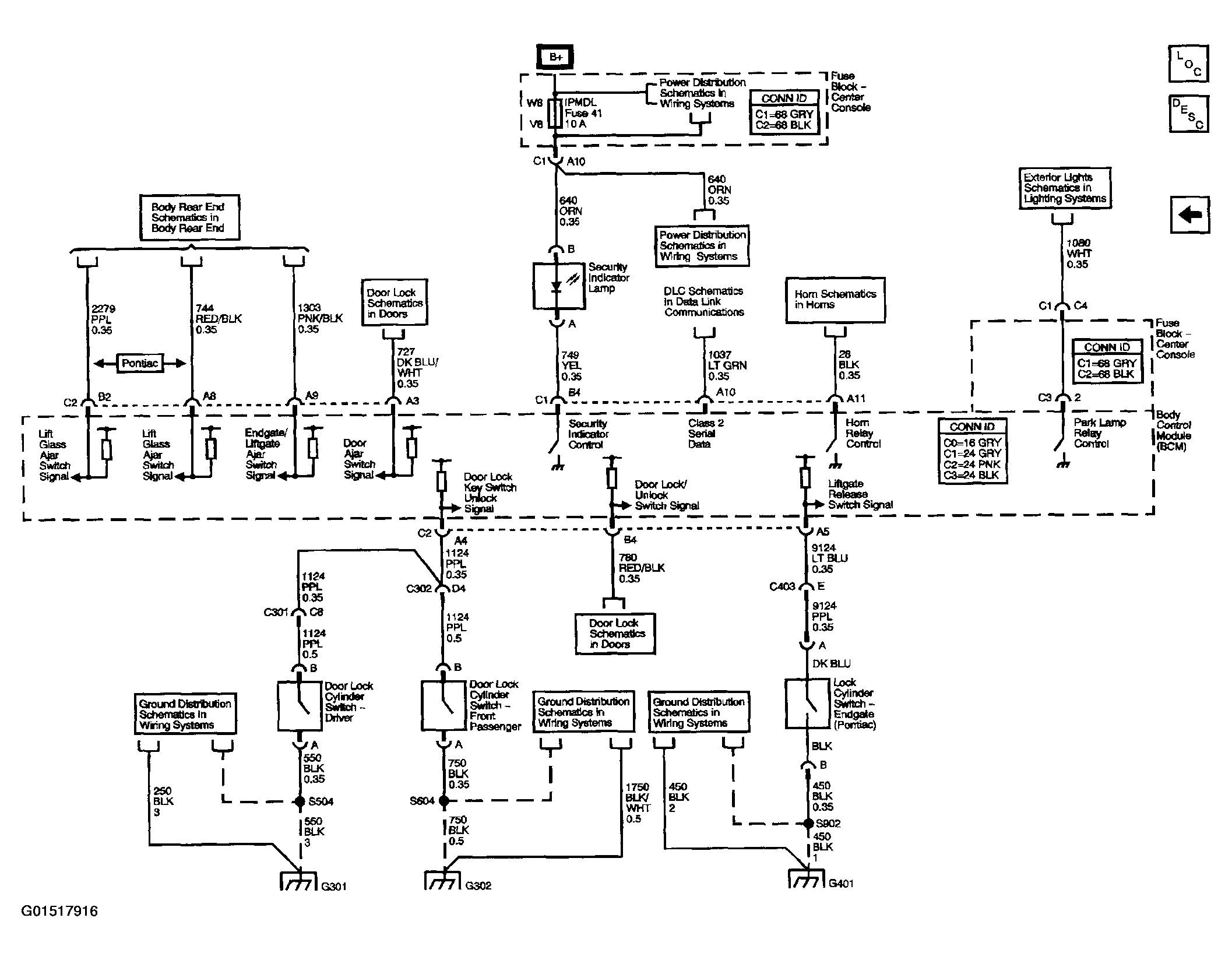

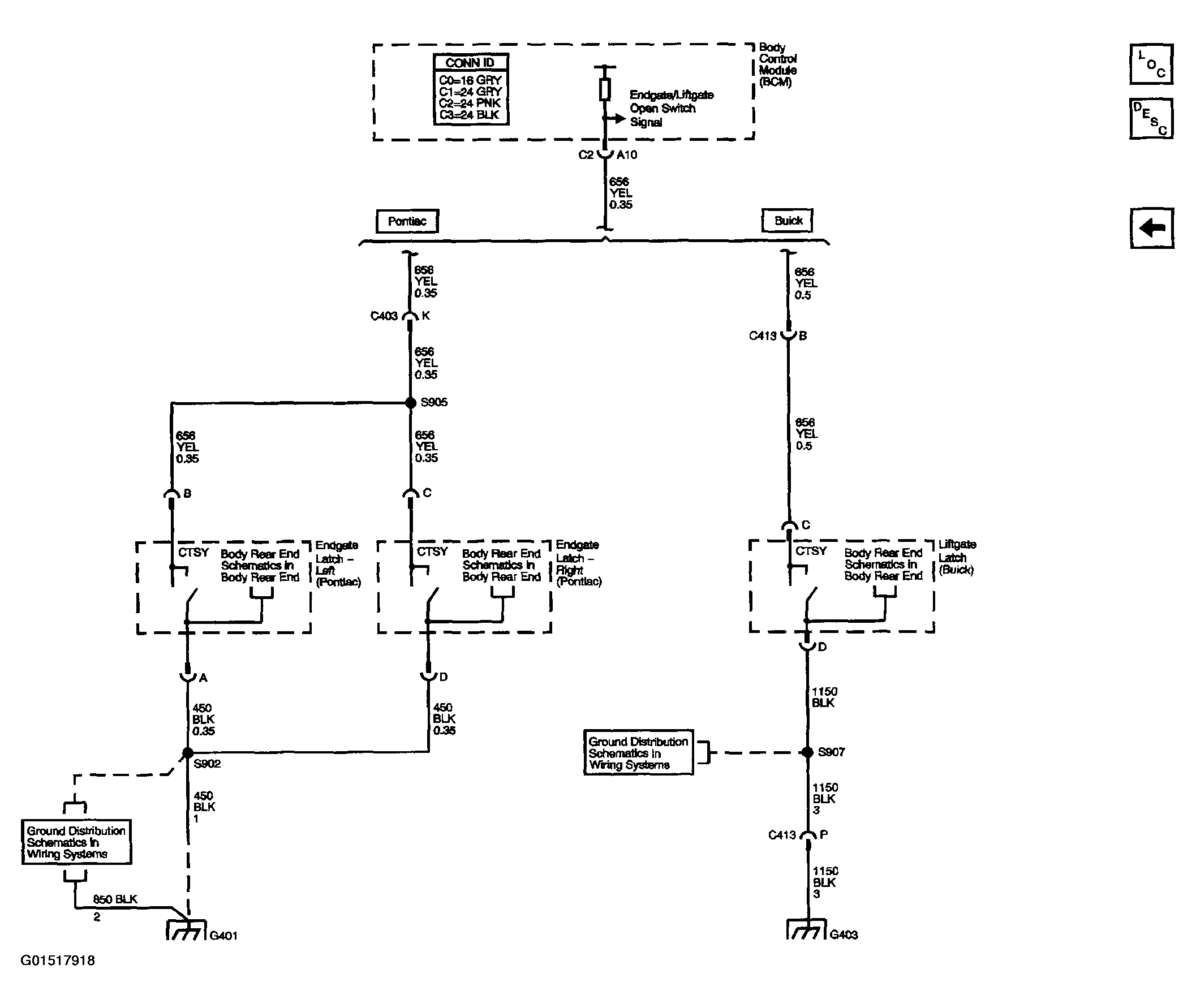

Fig 4: Theft Deterrent System Schematics (Lift Window, Endgate & Liftgate Switches)

Courtesy of GENERAL MOTORS CORP.
