Removal Procedure

  1. Remove the front bucket seats. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the rear seats. Refer to the following procedures in Seats:
  3. Remove the rear seats anchor plate bezels. Refer to CARPET TRIM PLATE REPLACEMENT - REAR FLOOR  .
  4. Remove the rear cargo tray anchors, if equipped.
  5. Remove the front floor console. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT -- FRONT FLOOR (RENDEZVOUS) .
  6. Remove the front and rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT - FRONT  and DOOR SILL PLATE REPLACEMENT - REAR  .
  7. Remove the endgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  .
  8. Remove the front cowl trim panels. Refer to TRIM PANEL REPLACEMENT - COWL SIDE  .
  9. Remove the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR  .

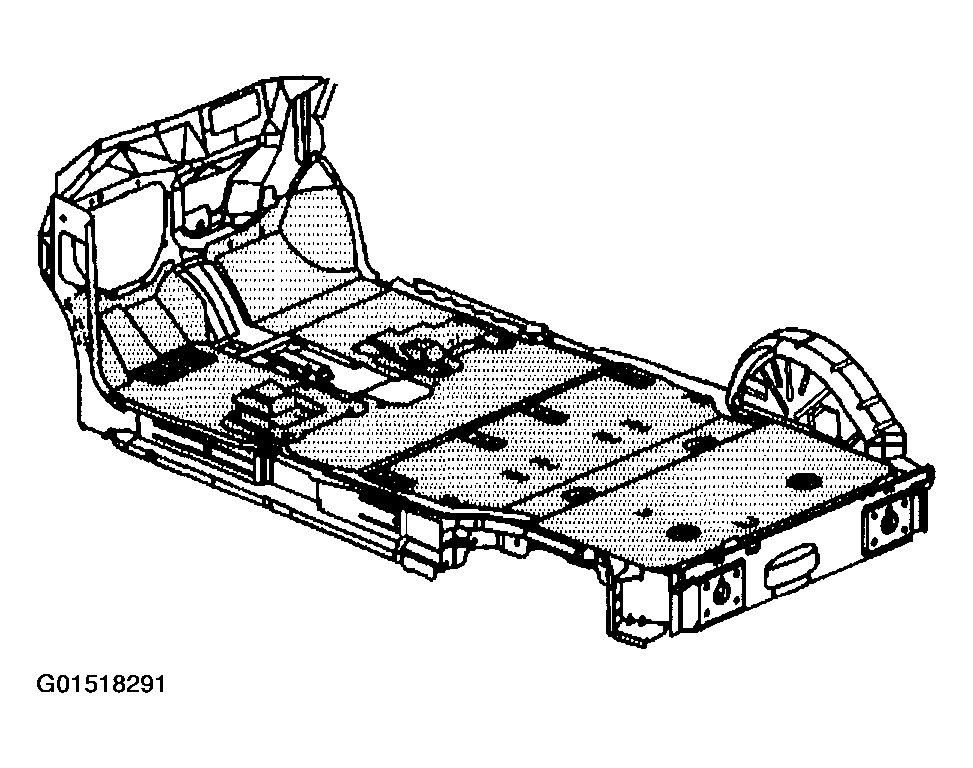

    Fig 1: Removing Procedure Of Carpet
    G01518291Courtesy of GENERAL MOTORS CORP.
  10. Remove the rear lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (AZTEK)  or TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (RENDEZVOUS)  .
  11. Remove the carpet from the vehicle.
