Removal Procedure

  1. Remove the front door lock switch plate from the front door trim panel using a small flat-bladed tool at the front of the power window control switch.
  2. Disconnect the electrical connector from the front door window control switch.
  3. Remove the front door window control switch from the front door trim panel.
  4. Remove the front door window control switch (2) from the front door window switch plate using a small flat-bladed tool.

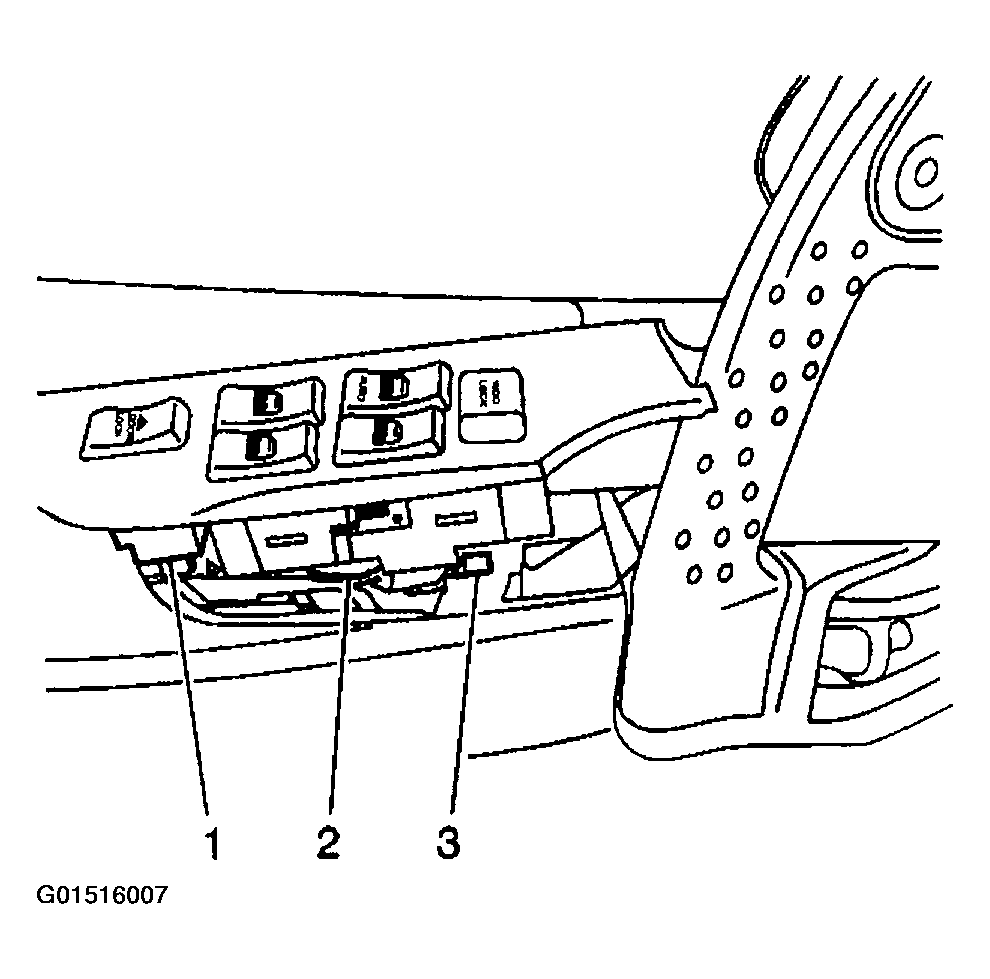

    Fig 1: Removing Left Front Power Window Switch (Aztek)
    G01516007Courtesy of GENERAL MOTORS CORP.
